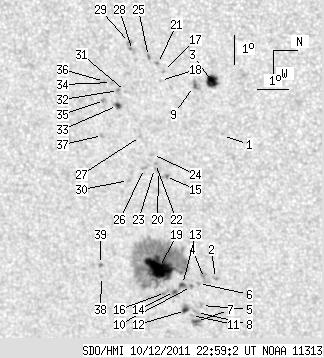

SDO HMI 2011-10-12 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.40 | 278.08 | 32.05 | 164.43 | -14.61 | 118.86 | 26.03 | 230.95 | 0.5481 | 355.6 | 325.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.25 | -12.55 | 115.06 | 22.23 | 229.84 | 0.4851 | -518.0 | -494.0 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -13.00 | 119.94 | 27.11 | 234.62 | 0.5467 | 882.0 | 724.8 | |
| 9.80 | 10.93 | 5.48 | 6.12 | -12.80 | 113.31 | 20.47 | 227.11 | 0.4674 | 994.8 | 726.2 | |
| 0.00 | 7.08 | 0.00 | 4.19 | -13.35 | 119.98 | 27.15 | 234.13 | 0.5500 | 681.0 | 641.0 | |
| 0.00 | 1.92 | 0.00 | 1.15 | -13.49 | 120.94 | 28.11 | 234.85 | 0.5625 | 679.0 | 597.3 | |
| 0.00 | 1.66 | 0.00 | 0.99 | -13.55 | 120.18 | 27.35 | 234.03 | 0.5540 | 788.0 | 632.5 | |
| 2.71 | 6.03 | 1.63 | 3.64 | -13.68 | 121.53 | 28.69 | 235.12 | 0.5708 | 719.6 | 518.8 | |
| 0.00 | 2.54 | 0.00 | 1.52 | -13.66 | 121.21 | 28.37 | 234.84 | 0.5670 | 737.0 | 529.9 | |
| 0.87 | 5.34 | 0.49 | 3.00 | -13.41 | 113.52 | 20.69 | 226.45 | 0.4761 | 732.4 | 695.5 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -13.78 | 120.32 | 27.48 | 233.82 | 0.5574 | 804.0 | 656.7 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -13.83 | 121.34 | 28.50 | 234.72 | 0.5698 | 626.0 | 491.8 | |
| 2.54 | 4.90 | 1.53 | 2.94 | -14.01 | 121.18 | 28.35 | 234.31 | 0.5695 | 688.2 | 655.3 | |
| 2.10 | 4.37 | 1.25 | 2.61 | -14.06 | 120.28 | 27.45 | 233.36 | 0.5594 | 770.2 | 657.6 | |
| 1.66 | 3.85 | 1.00 | 2.31 | -14.33 | 120.56 | 27.73 | 233.24 | 0.5648 | 651.0 | 575.9 | |
| 0.00 | 3.06 | 0.00 | 1.77 | -14.43 | 116.63 | 23.79 | 228.85 | 0.5209 | -763.0 | -628.2 | |
| 0.00 | 2.19 | 0.00 | 1.31 | -14.62 | 120.64 | 27.80 | 232.89 | 0.5681 | 402.0 | 232.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -14.34 | 113.12 | 20.28 | 224.45 | 0.4816 | -722.0 | -533.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -14.45 | 113.42 | 20.59 | 224.72 | 0.4860 | -376.0 | -363.9 | |
| 32.45 | 182.27 | 19.36 | 108.64 | -14.77 | 119.79 | 26.95 | 231.83 | 0.5596 | 1111.1 | 470.1 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -14.64 | 116.48 | 23.65 | 228.36 | 0.5213 | -622.0 | -518.8 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -14.53 | 112.87 | 20.04 | 223.83 | 0.4809 | -776.0 | -588.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -14.73 | 116.22 | 23.39 | 227.92 | 0.5193 | -924.0 | -733.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -14.77 | 116.40 | 23.56 | 228.07 | 0.5216 | -590.0 | -580.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -14.81 | 115.93 | 23.09 | 227.44 | 0.5168 | -763.0 | -642.6 | |
| 0.00 | 2.10 | 0.00 | 1.19 | -14.81 | 112.67 | 19.83 | 223.13 | 0.4818 | -962.0 | -707.0 | |
| 0.00 | 2.01 | 0.00 | 1.17 | -15.09 | 116.43 | 23.60 | 227.65 | 0.5251 | -634.0 | -524.1 | |
| 0.00 | 1.66 | 0.00 | 0.96 | -15.17 | 115.36 | 22.53 | 226.22 | 0.5143 | -654.0 | -574.1 | |
| 0.00 | 2.97 | 0.00 | 1.68 | -15.31 | 112.52 | 19.68 | 222.18 | 0.4858 | -908.0 | -696.4 | |
| 0.00 | 2.97 | 0.00 | 1.68 | -15.40 | 112.26 | 19.43 | 221.69 | 0.4842 | -941.0 | -799.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -15.62 | 116.91 | 24.07 | 227.44 | 0.5354 | -509.0 | -412.7 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -15.59 | 113.91 | 21.07 | 223.71 | 0.5032 | -789.0 | -626.0 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -15.82 | 113.90 | 21.06 | 223.38 | 0.5055 | -861.0 | -748.7 | |
| 2.27 | 3.76 | 1.31 | 2.16 | -15.87 | 114.40 | 21.57 | 223.98 | 0.5113 | -876.7 | -675.6 | |
| 0.00 | 1.92 | 0.00 | 1.10 | -16.03 | 113.65 | 20.82 | 222.75 | 0.5053 | -880.0 | -713.0 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -16.28 | 114.28 | 21.45 | 223.24 | 0.5144 | -715.0 | -595.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -16.26 | 113.65 | 20.81 | 222.43 | 0.5076 | -678.0 | -550.8 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -16.40 | 115.48 | 22.64 | 224.62 | 0.5279 | -363.0 | -351.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -16.66 | 120.38 | 27.54 | 229.76 | 0.5825 | 560.0 | 436.1 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -16.67 | 119.96 | 27.12 | 229.32 | 0.5781 | 821.0 | 650.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
