SDO HMI 2011-10-12 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.31 | 179.37 | 46.16 | 121.82 | 9.94 | 49.47 | -43.36 | 81.92 | 0.6847 | -182.7 | -2.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

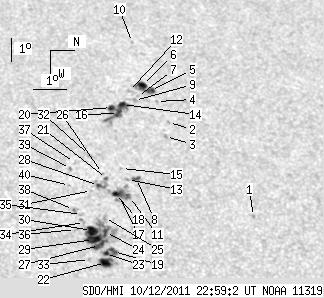

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.83 | 14.26 | 49.99 | -42.85 | 75.55 | 0.6830 | 707.0 | 545.9 | |
| 0.00 | 1.14 | 0.00 | 0.81 | 11.43 | 46.56 | -46.27 | 79.95 | 0.7217 | 627.0 | 612.6 | |
| 0.00 | 1.84 | 0.00 | 1.30 | 11.39 | 47.19 | -45.65 | 79.98 | 0.7142 | 899.0 | 798.7 | |
| 0.00 | 1.22 | 0.00 | 0.89 | 11.00 | 45.71 | -47.12 | 80.59 | 0.7315 | 509.0 | 508.1 | |
| 4.20 | 14.78 | 3.06 | 10.80 | 10.79 | 45.26 | -47.57 | 80.90 | 0.7367 | 656.3 | 582.9 | |
| 5.77 | -5.00 | 4.22 | -5.00 | 10.53 | 45.09 | -47.75 | 81.26 | 0.7386 | 668.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 10.42 | 45.61 | -47.23 | 81.39 | 0.7325 | 648.0 | 635.0 | |
| 3.06 | 3.24 | 2.09 | 2.21 | 10.65 | 49.14 | -43.70 | 80.90 | 0.6900 | -497.9 | -283.5 | |
| 0.00 | 2.01 | 0.00 | 1.45 | 10.34 | 45.80 | -47.03 | 81.49 | 0.7302 | 814.0 | 671.0 | |
| 0.00 | 1.05 | 0.00 | 0.80 | 10.08 | 43.19 | -49.64 | 81.91 | 0.7601 | 511.0 | 420.5 | |
| 0.44 | 19.42 | 0.29 | 13.10 | 10.50 | 49.92 | -42.92 | 81.08 | 0.6801 | -761.8 | -303.0 | |
| 0.00 | 1.31 | 0.00 | 0.95 | 10.14 | 45.44 | -47.40 | 81.79 | 0.7344 | 412.0 | 436.0 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 10.39 | 49.22 | -43.61 | 81.28 | 0.6887 | -636.0 | -387.7 | |
| 2.89 | 27.73 | 2.08 | 19.81 | 10.00 | 46.05 | -46.79 | 81.95 | 0.7272 | 857.7 | 643.9 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 10.17 | 48.80 | -44.04 | 81.61 | 0.6939 | -531.0 | -459.6 | |
| 3.06 | -14.00 | 2.18 | -14.00 | 9.91 | 46.46 | -46.37 | 82.07 | 0.7223 | 911.2 | 999999 | |
| 1.05 | -11.00 | 0.71 | -11.00 | 10.16 | 49.89 | -42.94 | 81.57 | 0.6802 | -290.5 | 999999 | |
| 2.36 | -11.00 | 1.59 | -11.00 | 10.07 | 49.87 | -42.97 | 81.71 | 0.6805 | 494.9 | 999999 | |
| 4.90 | 22.91 | 3.19 | 14.84 | 10.17 | 52.22 | -40.61 | 81.42 | 0.6503 | -610.3 | -661.1 | |
| 2.97 | -14.00 | 2.13 | -14.00 | 9.68 | 46.24 | -46.60 | 82.39 | 0.7249 | 710.1 | 999999 | |
| 1.31 | 10.23 | 0.89 | 6.94 | 9.76 | 49.29 | -43.55 | 82.19 | 0.6876 | -677.3 | 250.7 | |
| 7.43 | -19.00 | 4.80 | -19.00 | 9.96 | 52.69 | -40.14 | 81.71 | 0.6440 | -995.3 | 999999 | |
| 2.10 | -19.00 | 1.36 | -19.00 | 9.94 | 52.34 | -40.50 | 81.77 | 0.6486 | -870.4 | 999999 | |
| 3.06 | 52.04 | 2.01 | 34.14 | 9.88 | 51.50 | -41.34 | 81.91 | 0.6595 | -609.1 | -388.0 | |
| 0.00 | 1.92 | 0.00 | 1.28 | 9.81 | 50.90 | -41.94 | 82.05 | 0.6672 | 216.0 | 124.2 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 9.62 | 49.10 | -43.73 | 82.40 | 0.6900 | -537.0 | -319.3 | |
| 5.34 | -24.00 | 3.48 | -24.00 | 9.74 | 52.05 | -40.79 | 82.09 | 0.6523 | -885.6 | 999999 | |
| 2.10 | -21.00 | 1.42 | -21.00 | 9.54 | 49.62 | -43.22 | 82.50 | 0.6834 | 713.0 | 999999 | |
| 8.31 | -24.00 | 5.43 | -24.00 | 9.54 | 51.83 | -41.00 | 82.40 | 0.6550 | -979.8 | 999999 | |
| 7.61 | -24.00 | 5.00 | -24.00 | 9.46 | 51.48 | -41.35 | 82.55 | 0.6596 | -818.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 9.35 | 49.86 | -42.98 | 82.78 | 0.6804 | 723.0 | 570.0 | |
| 0.00 | 2.45 | 0.00 | 1.69 | 9.18 | 48.41 | -44.43 | 83.05 | 0.6985 | 718.0 | 535.8 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 9.48 | 52.64 | -40.19 | 82.47 | 0.6444 | -711.0 | -552.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 9.23 | 51.19 | -41.64 | 82.91 | 0.6633 | -559.0 | -467.8 | |
| 0.00 | 1.66 | 0.00 | 1.10 | 9.12 | 50.88 | -41.95 | 83.09 | 0.6672 | -647.0 | -408.6 | |
| 0.00 | 2.10 | 0.00 | 1.38 | 8.98 | 51.51 | -41.33 | 83.28 | 0.6591 | -611.0 | -508.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 8.76 | 48.77 | -44.06 | 83.66 | 0.6939 | -551.0 | -525.0 | |
| 0.35 | 2.45 | 0.23 | 1.63 | 8.87 | 50.71 | -42.12 | 83.47 | 0.6694 | -702.5 | -462.4 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 8.66 | 49.04 | -43.79 | 83.80 | 0.6905 | -666.0 | -456.9 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 8.68 | 49.75 | -43.09 | 83.77 | 0.6816 | -557.0 | -454.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
