SDO HMI 2011-10-12 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.23 | 284.55 | 36.18 | 169.02 | -14.60 | 118.85 | 26.57 | 231.55 | 0.5540 | 327.3 | 292.1 | |
|
previous
or next observation for the same group /

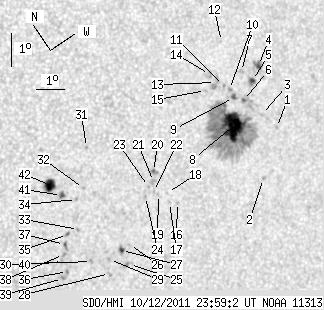

back to the solar disc SDO HMI 2011-10-12 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.80 | -15.65 | 121.18 | 28.90 | 232.49 | 0.5889 | -578.0 | -410.6 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -16.72 | 119.97 | 27.68 | 229.83 | 0.5845 | 795.0 | 608.2 | |
| 0.00 | 1.49 | 0.00 | 0.90 | -15.02 | 120.90 | 28.62 | 233.11 | 0.5806 | 73.0 | 26.8 | |
| 2.80 | 6.39 | 1.70 | 3.87 | -13.70 | 121.59 | 29.31 | 235.65 | 0.5782 | 644.5 | 591.4 | |
| 2.54 | 4.20 | 1.53 | 2.54 | -13.97 | 121.16 | 28.87 | 234.86 | 0.5752 | 754.0 | 673.5 | |
| 0.96 | 9.80 | 0.58 | 5.91 | -14.31 | 120.55 | 28.26 | 233.80 | 0.5708 | 565.5 | 339.5 | |
| 0.00 | 2.45 | 0.00 | 1.47 | -13.53 | 120.95 | 28.67 | 235.32 | 0.5693 | 604.0 | 550.1 | |
| 36.56 | 182.90 | 21.93 | 109.60 | -14.76 | 119.83 | 27.55 | 232.45 | 0.5663 | 1067.3 | 441.0 | |
| 1.84 | 3.06 | 1.10 | 1.84 | -14.04 | 120.28 | 27.99 | 233.93 | 0.5655 | 819.5 | 720.8 | |
| 0.00 | 2.10 | 0.00 | 1.26 | -13.76 | 120.28 | 28.00 | 234.35 | 0.5633 | 814.0 | 654.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -13.54 | 120.16 | 27.87 | 234.55 | 0.5601 | 698.0 | 633.5 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -12.38 | 120.81 | 28.52 | 236.92 | 0.5588 | 684.0 | 533.6 | |
| 0.00 | 6.21 | 0.00 | 3.69 | -13.31 | 119.95 | 27.67 | 234.70 | 0.5558 | 619.0 | 666.0 | |
| 0.00 | 2.80 | 0.00 | 1.66 | -12.99 | 119.89 | 27.61 | 235.13 | 0.5526 | 671.0 | 679.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -13.32 | 119.51 | 27.23 | 234.25 | 0.5507 | 664.0 | 470.4 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -15.67 | 116.87 | 24.58 | 227.98 | 0.5413 | -512.0 | -382.0 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -15.51 | 116.62 | 24.34 | 227.91 | 0.5372 | -478.0 | -399.1 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -15.21 | 116.72 | 24.43 | 228.45 | 0.5354 | -496.0 | -393.7 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -15.09 | 116.41 | 24.12 | 228.27 | 0.5309 | -610.0 | -495.4 | |
| 0.44 | 2.62 | 0.25 | 1.53 | -14.40 | 116.62 | 24.34 | 229.53 | 0.5268 | -791.4 | -632.9 | |
| 0.00 | 2.89 | 0.00 | 1.68 | -14.66 | 116.46 | 24.18 | 228.96 | 0.5274 | -716.0 | -588.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -14.92 | 116.30 | 24.02 | 228.40 | 0.5281 | -553.0 | -428.8 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -14.70 | 116.23 | 23.95 | 228.64 | 0.5251 | -859.0 | -700.6 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -14.90 | 115.98 | 23.70 | 228.05 | 0.5243 | -795.0 | -667.5 | |
| 0.00 | 4.02 | 0.00 | 2.33 | -16.36 | 114.43 | 22.15 | 224.05 | 0.5224 | -484.0 | -532.7 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -15.84 | 114.74 | 22.46 | 225.18 | 0.5202 | -712.0 | -465.2 | |
| 2.36 | 3.76 | 1.36 | 2.17 | -15.84 | 114.41 | 22.12 | 224.74 | 0.5167 | -827.7 | -599.0 | |
| 0.00 | 1.84 | 0.00 | 1.06 | -16.21 | 113.69 | 21.40 | 223.29 | 0.5131 | -694.0 | -595.0 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -15.85 | 113.91 | 21.62 | 224.09 | 0.5115 | -814.0 | -647.4 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -15.56 | 113.34 | 21.05 | 223.74 | 0.5026 | -778.0 | -697.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -12.52 | 115.00 | 22.71 | 230.51 | 0.4905 | -713.0 | -592.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -13.51 | 114.25 | 21.97 | 228.00 | 0.4915 | 677.0 | 461.9 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -14.48 | 113.46 | 21.17 | 225.48 | 0.4925 | -621.0 | -390.2 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -13.67 | 113.87 | 21.59 | 227.26 | 0.4888 | 669.0 | 506.7 | |
| 0.87 | 1.84 | 0.50 | 1.04 | -14.40 | 113.05 | 20.77 | 225.05 | 0.4873 | -580.4 | -464.9 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -15.36 | 112.47 | 20.19 | 222.83 | 0.4915 | -966.0 | -777.3 | |
| 1.05 | 3.24 | 0.59 | 1.83 | -14.60 | 112.81 | 20.52 | 224.41 | 0.4868 | -708.8 | -652.5 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -14.84 | 112.62 | 20.34 | 223.79 | 0.4874 | -795.0 | -710.7 | |
| 0.00 | 1.84 | 0.00 | 1.04 | -15.45 | 112.21 | 19.93 | 222.34 | 0.4898 | -879.0 | -787.8 | |
| 0.00 | 1.57 | 0.00 | 0.89 | -15.01 | 112.48 | 20.20 | 223.36 | 0.4877 | -811.0 | -637.0 | |
| 2.19 | 2.89 | 1.23 | 1.63 | -13.28 | 113.50 | 21.21 | 227.37 | 0.4807 | 827.4 | 751.6 | |
| 9.62 | 11.37 | 5.41 | 6.39 | -12.82 | 113.34 | 21.05 | 227.88 | 0.4742 | 931.9 | 702.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
