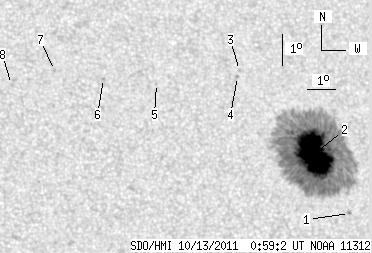

SDO HMI 2011-10-13 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.81 | 522.68 | 49.09 | 306.13 | 23.16 | 120.11 | 28.38 | 304.99 | 0.5354 | -1166.8 | -409.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.72 | 21.21 | 121.03 | 29.30 | 300.98 | 0.5342 | 679.0 | 546.9 | |
| 83.81 | 515.01 | 49.09 | 301.72 | 23.13 | 120.17 | 28.44 | 304.88 | 0.5359 | -1378.1 | -420.4 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 25.86 | 118.04 | 26.30 | 311.16 | 0.5317 | -686.0 | -484.3 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 25.67 | 117.92 | 26.19 | 310.98 | 0.5289 | -723.0 | -606.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 25.57 | 114.94 | 23.20 | 313.88 | 0.4951 | 684.0 | 549.7 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 25.80 | 113.08 | 21.35 | 316.42 | 0.4773 | 702.0 | 527.1 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 26.12 | 111.40 | 19.66 | 319.08 | 0.4631 | 814.0 | 698.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 25.72 | 109.82 | 18.08 | 320.66 | 0.4430 | 733.0 | 572.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
