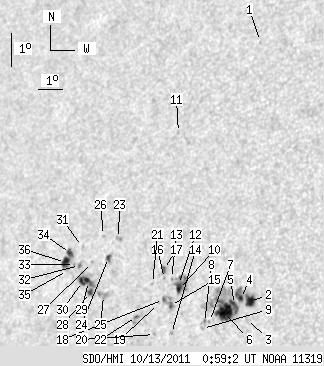

SDO HMI 2011-10-13 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.53 | 187.36 | 45.17 | 124.89 | 9.98 | 49.62 | -42.11 | 81.79 | 0.6689 | -125.2 | -33.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.40 | 17.76 | 51.63 | -40.10 | 69.74 | 0.6562 | -421.0 | -371.6 | |
| 7.52 | 83.28 | 4.78 | 53.49 | 9.93 | 52.79 | -38.94 | 81.67 | 0.6280 | -1008.9 | -378.1 | |
| 0.00 | 1.75 | 0.00 | 1.11 | 9.39 | 52.75 | -38.99 | 82.54 | 0.6283 | -546.0 | -373.5 | |
| 2.19 | -2.00 | 1.40 | -2.00 | 10.00 | 52.43 | -39.31 | 81.59 | 0.6329 | -881.0 | 999999 | |
| 4.29 | -2.00 | 2.74 | -2.00 | 9.80 | 52.22 | -39.52 | 81.91 | 0.6356 | -827.6 | 999999 | |
| 18.20 | -2.00 | 11.70 | -2.00 | 9.54 | 51.86 | -39.87 | 82.35 | 0.6402 | -910.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 9.23 | 51.31 | -40.43 | 82.86 | 0.6474 | -496.0 | -521.2 | |
| 0.00 | 2.01 | 0.00 | 1.31 | 9.19 | 51.11 | -40.62 | 82.93 | 0.6499 | -644.0 | -474.3 | |
| 0.00 | 1.31 | 0.00 | 0.85 | 9.00 | 51.06 | -40.68 | 83.22 | 0.6506 | -637.0 | -450.9 | |
| 2.62 | 18.11 | 1.74 | 11.97 | 10.10 | 49.92 | -41.81 | 81.60 | 0.6658 | 413.0 | -193.8 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 14.79 | 48.98 | -42.76 | 74.75 | 0.6827 | 451.0 | 452.7 | |
| 1.84 | -10.00 | 1.22 | -10.00 | 10.25 | 49.90 | -41.83 | 81.38 | 0.6662 | -465.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 10.41 | 49.59 | -42.15 | 81.16 | 0.6703 | -588.0 | -488.3 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 8.77 | 49.84 | -41.90 | 83.61 | 0.6664 | -675.0 | -532.6 | |
| 2.36 | 10.06 | 1.57 | 6.70 | 9.60 | 49.67 | -42.06 | 82.36 | 0.6687 | 711.3 | 174.2 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 10.39 | 49.30 | -42.43 | 81.20 | 0.6739 | -544.0 | -483.2 | |
| 2.62 | 3.06 | 1.76 | 2.05 | 10.65 | 49.21 | -42.52 | 80.82 | 0.6751 | -607.2 | -490.0 | |
| 1.40 | -15.00 | 0.93 | -15.00 | 9.76 | 49.36 | -42.37 | 82.14 | 0.6728 | -555.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 9.62 | 49.18 | -42.56 | 82.34 | 0.6751 | -345.0 | -227.0 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 8.69 | 49.15 | -42.58 | 83.74 | 0.6752 | -641.0 | -456.3 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 10.20 | 48.83 | -42.90 | 81.50 | 0.6797 | -393.0 | -313.7 | |
| 1.49 | 4.11 | 1.01 | 2.79 | 9.17 | 48.33 | -43.40 | 83.04 | 0.6857 | 616.1 | 476.2 | |
| 0.00 | 2.36 | 0.00 | 1.64 | 11.44 | 47.17 | -44.57 | 79.81 | 0.7011 | 904.0 | 773.9 | |
| 2.27 | 3.50 | 1.58 | 2.43 | 10.85 | 46.85 | -44.88 | 80.69 | 0.7046 | 697.3 | 586.6 | |
| 0.00 | 6.65 | 0.00 | 4.62 | 9.70 | 46.85 | -44.89 | 82.32 | 0.7043 | 628.0 | 664.0 | |
| 0.00 | 1.22 | 0.00 | 0.86 | 11.49 | 46.51 | -45.22 | 79.80 | 0.7091 | 666.0 | 559.9 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 10.65 | 46.20 | -45.54 | 81.00 | 0.7125 | 536.0 | 537.3 | |
| 2.71 | 21.17 | 1.90 | 14.92 | 9.75 | 46.28 | -45.46 | 82.27 | 0.7112 | 790.9 | 541.6 | |
| 4.02 | -28.00 | 2.83 | -28.00 | 10.07 | 46.13 | -45.60 | 81.82 | 0.7131 | 923.4 | 999999 | |
| 3.24 | -28.00 | 2.29 | -28.00 | 10.05 | 45.87 | -45.86 | 81.85 | 0.7162 | 781.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.87 | 11.09 | 45.67 | -46.06 | 80.41 | 0.7190 | 522.0 | 441.6 | |
| 1.05 | 2.80 | 0.75 | 1.99 | 10.51 | 45.65 | -46.08 | 81.21 | 0.7190 | 731.8 | 601.4 | |
| 0.00 | 1.40 | 0.00 | 1.00 | 10.53 | 45.43 | -46.30 | 81.20 | 0.7216 | 602.0 | 583.2 | |
| 3.59 | 12.77 | 2.57 | 9.16 | 10.84 | 45.19 | -46.54 | 80.78 | 0.7246 | 614.8 | 601.5 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 10.33 | 45.16 | -46.57 | 81.49 | 0.7248 | 433.0 | 432.4 | |
| 6.12 | -34.00 | 4.40 | -34.00 | 10.56 | 45.02 | -46.71 | 81.18 | 0.7265 | 611.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
