SDO HMI 2011-10-13 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.10 | 0.00 | 16.20 | 20.50 | 109.84 | 18.66 | 310.27 | 0.3947 | 403.4 | 568.1 | |
|
previous
or next observation for the same group /

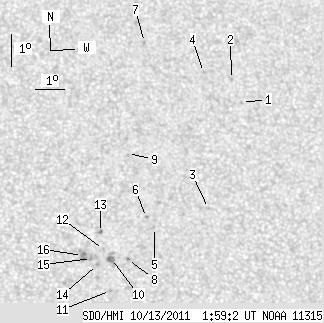

back to the solar disc SDO HMI 2011-10-13 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 24.11 | 114.49 | 23.30 | 311.35 | 0.4830 | -630.0 | -375.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 24.84 | 114.27 | 23.09 | 312.82 | 0.4872 | 704.0 | 545.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 20.86 | 112.77 | 21.59 | 307.35 | 0.4343 | -745.0 | -628.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 25.10 | 113.32 | 22.14 | 314.34 | 0.4791 | 515.0 | 477.3 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 20.33 | 110.85 | 19.67 | 308.66 | 0.4059 | -778.0 | -665.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 20.65 | 110.62 | 19.44 | 309.60 | 0.4060 | -612.0 | -604.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 26.13 | 111.41 | 20.23 | 318.35 | 0.4691 | 813.0 | 624.2 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 19.38 | 109.82 | 18.64 | 308.02 | 0.3844 | 646.0 | 599.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 22.66 | 110.26 | 19.07 | 313.99 | 0.4209 | 562.0 | 610.2 | |
| 0.00 | 8.40 | 0.00 | 4.49 | 19.43 | 109.29 | 18.11 | 308.87 | 0.3781 | 901.0 | 691.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 18.45 | 109.15 | 17.97 | 306.88 | 0.3674 | 861.0 | 688.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 19.71 | 109.06 | 17.88 | 309.82 | 0.3779 | 438.0 | 401.4 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 20.24 | 109.02 | 17.84 | 311.00 | 0.3825 | 894.0 | 707.6 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 19.26 | 108.81 | 17.62 | 309.20 | 0.3705 | 936.0 | 702.2 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 19.45 | 108.63 | 17.45 | 309.89 | 0.3700 | 953.0 | 822.4 | |
| 0.00 | 6.04 | 0.00 | 3.21 | 19.55 | 108.34 | 17.16 | 310.55 | 0.3675 | 997.0 | 914.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
