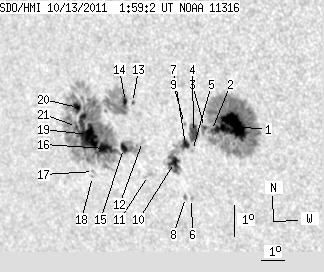

SDO HMI 2011-10-13 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.39 | 658.82 | 97.28 | 470.98 | -12.35 | 48.60 | -42.58 | 113.65 | 0.7229 | 97.5 | -37.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.27 | 251.02 | 29.93 | 169.71 | -11.89 | 52.03 | -39.15 | 114.76 | 0.6827 | 1077.5 | 382.0 | |
| 1.05 | -1.00 | 0.72 | -1.00 | -12.08 | 51.16 | -40.02 | 114.54 | 0.6936 | 546.2 | 999999 | |
| 1.84 | -1.00 | 1.26 | -1.00 | -12.00 | 50.90 | -40.29 | 114.29 | 0.6963 | 611.9 | 999999 | |
| 13.30 | 50.05 | 9.23 | 35.20 | -12.19 | 50.42 | -40.77 | 114.30 | 0.7026 | 665.2 | 164.1 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -12.77 | 50.27 | -40.92 | 114.98 | 0.7070 | 535.0 | 443.8 | |
| 0.00 | 1.75 | 0.00 | 1.24 | -14.31 | 49.90 | -41.29 | 116.78 | 0.7185 | 850.0 | 690.5 | |
| 5.51 | -4.00 | 3.86 | -4.00 | -12.60 | 50.01 | -41.17 | 114.62 | 0.7090 | 688.3 | 999999 | |
| 1.66 | 2.27 | 1.18 | 1.62 | -14.30 | 49.65 | -41.53 | 116.63 | 0.7210 | 499.2 | 527.3 | |
| 0.00 | 1.31 | 0.00 | 0.91 | -11.94 | 50.10 | -41.08 | 113.79 | 0.7050 | 566.0 | 377.3 | |
| 6.82 | -4.00 | 4.84 | -4.00 | -13.21 | 49.44 | -41.75 | 115.11 | 0.7182 | 621.1 | 999999 | |
| 0.00 | 3.24 | 0.00 | 2.35 | -13.71 | 48.24 | -42.94 | 115.14 | 0.7334 | 225.0 | 86.0 | |
| 0.00 | 2.27 | 0.00 | 1.64 | -12.64 | 48.22 | -42.96 | 113.77 | 0.7289 | -365.0 | -333.5 | |
| 1.14 | 1.31 | 0.82 | 0.94 | -11.43 | 48.05 | -43.14 | 112.12 | 0.7258 | 503.6 | 179.0 | |
| 2.45 | 341.66 | 1.77 | 254.45 | -11.42 | 47.75 | -43.43 | 111.98 | 0.7290 | 621.1 | -336.1 | |
| 5.42 | -14.00 | 3.98 | -14.00 | -12.92 | 47.36 | -43.83 | 113.72 | 0.7395 | -953.2 | 999999 | |
| 9.97 | -14.00 | 7.42 | -14.00 | -12.98 | 46.57 | -44.61 | 113.43 | 0.7482 | -1037.9 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.33 | -13.76 | 45.86 | -45.32 | 114.07 | 0.7588 | -438.0 | -406.0 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -13.93 | 45.77 | -45.41 | 114.24 | 0.7603 | -471.0 | -407.8 | |
| 37.45 | -14.00 | 28.13 | -14.00 | -12.60 | 45.87 | -45.31 | 112.63 | 0.7540 | -848.1 | 999999 | |
| 4.55 | -14.00 | 3.41 | -14.00 | -11.77 | 45.62 | -45.56 | 111.48 | 0.7535 | -703.8 | 999999 | |
| 0.96 | -14.00 | 0.73 | -14.00 | -12.38 | 45.44 | -45.74 | 112.17 | 0.7577 | -413.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
