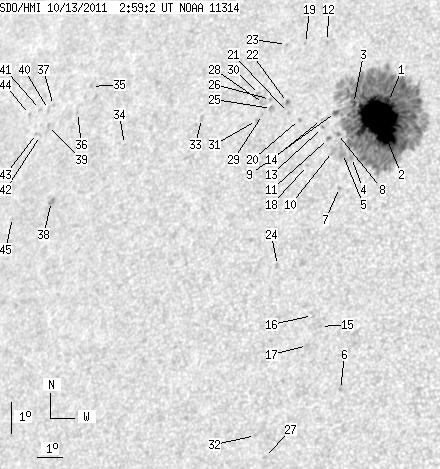

SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.26 | 679.32 | 65.57 | 425.58 | 26.86 | 57.60 | -33.04 | 52.62 | 0.6138 | -927.0 | -386.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 609.71 | 0.82 | 379.66 | 27.62 | 58.41 | -32.22 | 51.03 | 0.6099 | -1200.4 | -412.6 | |
| 98.61 | -1.00 | 61.36 | -1.00 | 27.00 | 58.26 | -32.38 | 52.04 | 0.6074 | -1415.3 | 999999 | |
| 2.89 | -1.00 | 1.83 | -1.00 | 27.49 | 57.05 | -33.58 | 52.17 | 0.6236 | -418.1 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.25 | 25.77 | 57.54 | -33.10 | 54.34 | 0.6075 | -214.0 | -236.7 | |
| 0.00 | 7.79 | 0.00 | 4.87 | 25.88 | 57.15 | -33.49 | 54.43 | 0.6126 | -145.0 | -255.6 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 18.57 | 58.99 | -31.65 | 65.03 | 0.5508 | -724.0 | -593.8 | |
| 0.00 | 1.49 | 0.00 | 0.92 | 24.80 | 57.36 | -33.27 | 55.90 | 0.6037 | -582.0 | -513.0 | |
| 0.00 | 2.54 | 0.00 | 1.60 | 26.50 | 56.74 | -33.89 | 53.79 | 0.6208 | -578.0 | -507.4 | |
| 2.45 | -1.00 | 1.56 | -1.00 | 27.16 | 56.43 | -34.20 | 53.03 | 0.6282 | -468.6 | 999999 | |
| 0.00 | 3.50 | 0.00 | 2.20 | 25.92 | 56.73 | -33.90 | 54.64 | 0.6174 | -87.0 | -125.1 | |
| 0.00 | 2.10 | 0.00 | 1.33 | 26.32 | 56.44 | -34.20 | 54.24 | 0.6231 | -658.0 | -552.3 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 29.41 | 55.26 | -35.38 | 50.65 | 0.6545 | -672.0 | -559.2 | |
| 0.00 | 1.49 | 0.00 | 0.95 | 26.66 | 56.08 | -34.56 | 53.98 | 0.6290 | -634.0 | -508.1 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 26.91 | 55.95 | -34.68 | 53.70 | 0.6319 | -395.0 | -298.3 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 20.45 | 57.81 | -32.82 | 62.48 | 0.5748 | -720.0 | -586.6 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 20.78 | 57.43 | -33.21 | 62.17 | 0.5812 | -449.0 | -396.1 | |
| 0.00 | 1.58 | 0.00 | 0.95 | 19.85 | 57.46 | -33.17 | 63.67 | 0.5764 | -707.0 | -538.6 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 25.42 | 55.89 | -34.75 | 55.88 | 0.6240 | -528.0 | -409.2 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 29.30 | 54.37 | -36.27 | 51.35 | 0.6628 | -501.0 | -460.4 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 26.86 | 55.06 | -35.57 | 54.31 | 0.6413 | -664.0 | -506.4 | |
| 0.00 | 1.31 | 0.00 | 0.85 | 27.05 | 54.54 | -36.10 | 54.34 | 0.6481 | -664.0 | -491.7 | |
| 0.00 | 1.93 | 0.00 | 1.25 | 27.37 | 54.38 | -36.26 | 54.00 | 0.6516 | -979.0 | -766.7 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 29.22 | 53.59 | -37.05 | 51.92 | 0.6703 | -451.0 | -365.2 | |
| 0.00 | 1.93 | 0.00 | 1.20 | 22.24 | 55.67 | -34.96 | 60.80 | 0.6099 | -521.0 | -434.3 | |
| 0.00 | 3.24 | 0.00 | 2.12 | 27.14 | 53.79 | -36.84 | 54.65 | 0.6566 | -702.0 | -675.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 27.42 | 53.64 | -37.00 | 54.34 | 0.6597 | -696.0 | -592.4 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 16.35 | 56.60 | -34.04 | 69.94 | 0.5740 | -663.0 | -517.6 | |
| 0.00 | 2.98 | 0.00 | 1.96 | 27.28 | 53.40 | -37.24 | 54.67 | 0.6615 | -609.0 | -516.2 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 26.92 | 53.49 | -37.14 | 55.11 | 0.6586 | -701.0 | -577.9 | |
| 0.00 | 2.45 | 0.00 | 1.62 | 27.55 | 53.12 | -37.51 | 54.45 | 0.6659 | -530.0 | -509.1 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 26.72 | 53.32 | -37.31 | 55.49 | 0.6594 | -673.0 | -523.8 | |
| 0.00 | 1.40 | 0.00 | 0.85 | 17.00 | 56.12 | -34.51 | 69.03 | 0.5825 | -520.0 | -411.6 | |
| 0.00 | 2.19 | 0.00 | 1.48 | 26.64 | 50.99 | -39.64 | 56.79 | 0.6839 | -644.0 | -518.0 | |
| 0.00 | 0.70 | 0.00 | 0.49 | 25.60 | 48.02 | -42.61 | 59.49 | 0.7110 | 550.0 | 408.4 | |
| 0.00 | 1.05 | 0.00 | 0.77 | 27.32 | 45.66 | -44.97 | 58.14 | 0.7416 | 629.0 | 546.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 26.46 | 45.44 | -45.20 | 59.34 | 0.7408 | 643.0 | 565.2 | |
| 0.00 | 1.23 | 0.00 | 0.92 | 26.60 | 44.21 | -46.42 | 59.59 | 0.7535 | 493.0 | 426.1 | |
| 0.00 | 3.06 | 0.00 | 2.21 | 23.61 | 45.56 | -45.07 | 63.03 | 0.7302 | 916.0 | 688.1 | |
| 0.00 | 2.01 | 0.00 | 1.50 | 25.96 | 44.30 | -46.33 | 60.38 | 0.7505 | 621.0 | 469.3 | |
| 0.00 | 2.19 | 0.00 | 1.64 | 26.45 | 44.04 | -46.59 | 59.82 | 0.7547 | 614.0 | 474.6 | |
| 0.00 | 1.75 | 0.00 | 1.32 | 26.43 | 43.66 | -46.97 | 59.98 | 0.7583 | 507.0 | 374.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 25.62 | 44.09 | -46.55 | 60.88 | 0.7516 | 622.0 | 540.8 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 25.66 | 43.87 | -46.77 | 60.89 | 0.7539 | 538.0 | 422.2 | |
| 0.00 | 1.31 | 0.00 | 1.00 | 26.23 | 43.23 | -47.41 | 60.37 | 0.7620 | 462.0 | 389.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 22.99 | 44.01 | -46.63 | 64.32 | 0.7448 | 550.0 | 575.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
