SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.59 | 33.78 | 1.92 | 18.16 | 19.86 | 109.31 | 18.68 | 309.02 | 0.3893 | 285.7 | 462.2 | |
|
previous
or next observation for the same group /

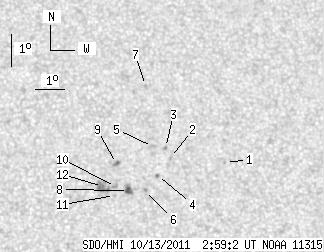

back to the solar disc SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | 20.15 | 112.67 | 22.04 | 305.46 | 0.4343 | -652.0 | -477.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 20.37 | 110.82 | 20.19 | 308.08 | 0.4127 | -775.0 | -661.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 20.69 | 110.69 | 20.06 | 308.88 | 0.4140 | -847.0 | -708.1 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 19.83 | 110.31 | 19.67 | 307.62 | 0.4016 | -785.0 | -696.2 | |
| 0.00 | 3.15 | 0.00 | 1.71 | 20.73 | 110.26 | 19.62 | 309.53 | 0.4090 | -128.0 | -218.9 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 19.39 | 109.85 | 19.21 | 307.27 | 0.3918 | 813.0 | 658.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 22.63 | 110.29 | 19.66 | 313.16 | 0.4274 | 734.0 | 641.7 | |
| 3.59 | 6.56 | 1.92 | 3.52 | 19.41 | 109.28 | 18.65 | 308.08 | 0.3847 | 864.6 | 678.9 | |
| 0.00 | 2.71 | 0.00 | 1.46 | 20.25 | 108.98 | 18.35 | 310.29 | 0.3888 | 891.0 | 763.3 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 19.54 | 108.86 | 18.23 | 308.96 | 0.3807 | 866.0 | 712.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 19.27 | 108.80 | 18.16 | 308.45 | 0.3773 | 834.0 | 627.0 | |
| 0.00 | 10.76 | 0.00 | 5.75 | 19.56 | 108.43 | 17.79 | 309.61 | 0.3754 | 1080.0 | 889.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
