SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.34 | 123.38 | 12.52 | 63.41 | 20.08 | 97.72 | 7.08 | 334.42 | 0.2713 | 126.2 | -243.3 | |
|
previous
or next observation for the same group /

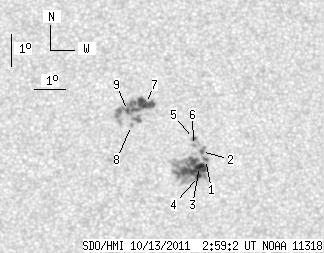

back to the solar disc SDO HMI 2011-10-13 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 72.89 | 0.63 | 37.39 | 19.53 | 98.55 | 7.91 | 331.00 | 0.2689 | -627.6 | -786.4 | |
| 1.40 | -1.00 | 0.72 | -1.00 | 19.78 | 98.43 | 7.80 | 331.82 | 0.2716 | -828.6 | 999999 | |
| 4.46 | -1.00 | 2.29 | -1.00 | 19.32 | 98.35 | 7.71 | 331.21 | 0.2642 | -1169.6 | 999999 | |
| 2.01 | -1.00 | 1.03 | -1.00 | 19.01 | 98.30 | 7.67 | 330.75 | 0.2593 | -962.5 | 999999 | |
| 1.23 | 3.41 | 0.63 | 1.76 | 20.18 | 98.20 | 7.56 | 333.25 | 0.2757 | -845.5 | -674.3 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 19.97 | 98.19 | 7.55 | 332.91 | 0.2724 | -985.0 | -804.7 | |
| 12.08 | 44.10 | 6.23 | 22.73 | 21.28 | 96.70 | 6.07 | 339.50 | 0.2824 | 932.6 | 914.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.61 | 96.22 | 5.59 | 340.10 | 0.2691 | 1030.0 | 801.1 | |
| 1.93 | -7.00 | 0.99 | -7.00 | 21.07 | 96.11 | 5.48 | 341.07 | 0.2758 | 1183.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
