SDO HMI 2011-10-13 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.44 | 128.65 | 13.62 | 66.19 | 19.99 | 97.72 | 7.63 | 332.61 | 0.2743 | 116.6 | -268.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

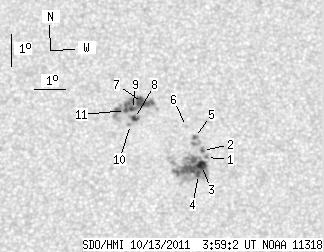

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 1.08 | 19.55 | 98.61 | 8.53 | 329.23 | 0.2743 | -691.0 | -574.2 | |
| 1.40 | 2.28 | 0.72 | 1.17 | 19.77 | 98.50 | 8.41 | 329.99 | 0.2764 | -856.2 | -743.0 | |
| 6.13 | 70.27 | 3.15 | 36.09 | 19.30 | 98.44 | 8.35 | 329.25 | 0.2694 | -1123.0 | -744.2 | |
| 2.10 | -3.00 | 1.08 | -3.00 | 19.03 | 98.33 | 8.24 | 329.02 | 0.2645 | -1035.9 | 999999 | |
| 1.40 | 7.00 | 0.72 | 3.61 | 20.17 | 98.26 | 8.17 | 331.43 | 0.2803 | -881.6 | -834.7 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 20.51 | 98.02 | 7.93 | 332.73 | 0.2835 | -636.0 | -427.6 | |
| 9.19 | 39.29 | 4.75 | 20.28 | 21.27 | 96.64 | 6.55 | 338.02 | 0.2853 | 1006.2 | 853.4 | |
| 2.45 | 4.90 | 1.26 | 2.52 | 20.78 | 96.36 | 6.27 | 338.17 | 0.2759 | 986.6 | 784.6 | |
| 2.19 | -7.00 | 1.13 | -7.00 | 21.06 | 96.30 | 6.22 | 338.73 | 0.2799 | 1200.5 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 20.60 | 96.22 | 6.13 | 338.34 | 0.2722 | 878.0 | 785.2 | |
| 1.58 | -7.00 | 0.81 | -7.00 | 21.03 | 96.08 | 5.99 | 339.40 | 0.2781 | 1129.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
