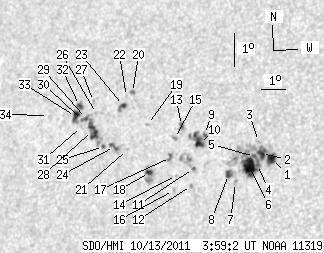

SDO HMI 2011-10-13 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.02 | 204.98 | 50.25 | 133.35 | 9.97 | 49.60 | -40.48 | 81.70 | 0.6477 | -66.6 | -45.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.09 | 79.81 | 4.39 | 49.92 | 9.89 | 53.00 | -37.09 | 81.57 | 0.6028 | -1007.6 | -421.4 | |
| 5.86 | -1.00 | 3.65 | -1.00 | 10.04 | 52.59 | -37.49 | 81.35 | 0.6085 | -891.7 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.31 | 10.39 | 52.43 | -37.66 | 80.79 | 0.6110 | -312.0 | -214.8 | |
| 0.61 | -1.00 | 0.38 | -1.00 | 9.70 | 52.48 | -37.60 | 81.92 | 0.6097 | -1031.4 | 999999 | |
| 1.31 | -1.00 | 0.82 | -1.00 | 9.94 | 52.34 | -37.75 | 81.55 | 0.6119 | -773.0 | 999999 | |
| 16.80 | -1.00 | 10.52 | -1.00 | 9.63 | 52.19 | -37.90 | 82.07 | 0.6137 | -947.3 | 999999 | |
| 0.00 | 2.28 | 0.00 | 1.43 | 9.11 | 51.71 | -38.37 | 82.93 | 0.6199 | -515.0 | -434.0 | |
| 3.85 | 6.48 | 2.44 | 4.09 | 9.33 | 51.41 | -38.67 | 82.59 | 0.6241 | -618.4 | -631.4 | |
| 1.05 | 16.36 | 0.67 | 10.55 | 10.47 | 50.31 | -39.78 | 80.87 | 0.6396 | -686.2 | -344.1 | |
| 4.73 | -9.00 | 3.04 | -9.00 | 10.18 | 50.15 | -39.94 | 81.32 | 0.6414 | 691.5 | 999999 | |
| 0.88 | 12.86 | 0.56 | 8.33 | 9.42 | 50.02 | -40.06 | 82.52 | 0.6427 | -388.5 | 171.0 | |
| 0.00 | 1.58 | 0.00 | 1.02 | 8.91 | 50.01 | -40.07 | 83.32 | 0.6426 | -672.0 | -611.3 | |
| 2.54 | 4.20 | 1.65 | 2.74 | 10.67 | 49.35 | -40.73 | 80.63 | 0.6522 | -684.8 | -534.4 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 9.17 | 49.38 | -40.71 | 82.94 | 0.6511 | -355.0 | -345.9 | |
| 0.00 | 2.28 | 0.00 | 1.49 | 10.27 | 49.14 | -40.95 | 81.27 | 0.6548 | -775.0 | -581.3 | |
| 0.00 | 1.75 | 0.00 | 1.14 | 8.71 | 49.32 | -40.77 | 83.65 | 0.6517 | -542.0 | -318.5 | |
| 1.14 | 3.24 | 0.74 | 2.12 | 9.69 | 49.06 | -41.02 | 82.16 | 0.6554 | -537.5 | -340.3 | |
| 3.06 | 12.34 | 2.03 | 8.16 | 9.18 | 48.29 | -41.80 | 82.96 | 0.6653 | 812.7 | 469.1 | |
| 0.00 | 1.14 | 0.00 | 0.76 | 10.61 | 47.98 | -42.11 | 80.83 | 0.6699 | -638.0 | -529.2 | |
| 1.93 | 2.10 | 1.30 | 1.42 | 11.52 | 47.19 | -42.89 | 79.54 | 0.6805 | 780.1 | 776.0 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 9.81 | 47.28 | -42.80 | 82.07 | 0.6783 | 263.0 | 229.3 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 11.38 | 46.97 | -43.12 | 79.76 | 0.6832 | 519.0 | 580.3 | |
| 2.36 | 4.81 | 1.60 | 3.26 | 11.11 | 46.89 | -43.19 | 80.18 | 0.6840 | 805.7 | 747.3 | |
| 2.10 | 6.65 | 1.42 | 4.50 | 9.86 | 46.73 | -43.35 | 82.02 | 0.6853 | 885.3 | 593.5 | |
| 1.23 | 1.93 | 0.84 | 1.32 | 9.83 | 46.28 | -43.81 | 82.08 | 0.6910 | 594.5 | 459.2 | |
| 0.00 | 1.66 | 0.00 | 1.15 | 10.79 | 45.81 | -44.28 | 80.72 | 0.6972 | 810.0 | 697.3 | |
| 0.00 | 1.58 | 0.00 | 1.09 | 11.14 | 45.61 | -44.47 | 80.23 | 0.6998 | 626.0 | 507.1 | |
| 10.33 | 23.28 | 7.12 | 16.05 | 10.27 | 45.73 | -44.35 | 81.47 | 0.6979 | 928.3 | 710.1 | |
| 1.58 | -28.00 | 1.09 | -28.00 | 10.61 | 45.41 | -44.67 | 81.00 | 0.7020 | 822.9 | 999999 | |
| 0.26 | -28.00 | 0.18 | -28.00 | 10.54 | 45.26 | -44.83 | 81.11 | 0.7039 | 800.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 10.35 | 45.25 | -44.84 | 81.37 | 0.7039 | 489.0 | 453.8 | |
| 3.06 | 13.39 | 2.14 | 9.35 | 10.97 | 45.04 | -45.04 | 80.50 | 0.7067 | 622.4 | 507.2 | |
| 5.25 | -32.00 | 3.67 | -32.00 | 10.63 | 44.94 | -45.15 | 80.98 | 0.7078 | 599.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 10.58 | 43.76 | -46.32 | 81.12 | 0.7219 | 379.0 | 417.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
