SDO HMI 2011-10-13 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.56 | 507.66 | 53.51 | 306.84 | 23.17 | 120.06 | 31.62 | 302.68 | 0.5748 | -1329.5 | -396.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

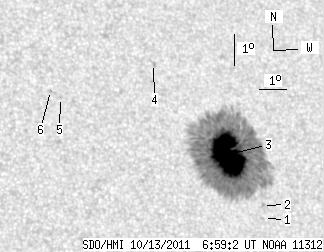

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.53 | 21.11 | 120.91 | 32.46 | 298.82 | 0.5737 | 620.0 | 457.4 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 21.51 | 120.97 | 32.52 | 299.44 | 0.5766 | 283.0 | 208.2 | |
| 88.56 | 501.61 | 53.51 | 303.25 | 23.16 | 120.09 | 31.65 | 302.64 | 0.5751 | -1487.2 | -405.4 | |
| 0.00 | 1.66 | 0.00 | 1.00 | 26.16 | 118.04 | 29.59 | 308.81 | 0.5710 | -372.0 | -352.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 25.24 | 114.31 | 25.87 | 310.64 | 0.5221 | 613.0 | 518.7 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 25.48 | 114.00 | 25.55 | 311.32 | 0.5206 | 646.0 | 555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
