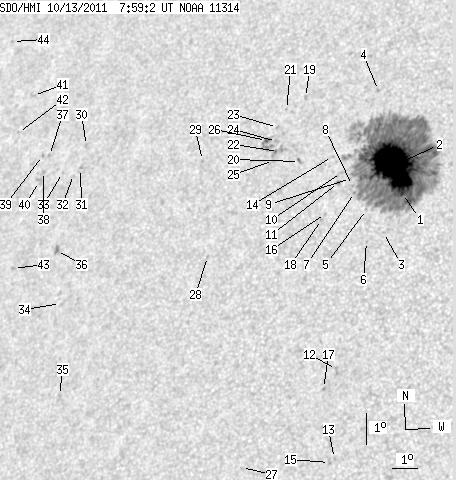

SDO HMI 2011-10-13 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.87 | 700.44 | 67.23 | 428.03 | 26.88 | 57.50 | -30.40 | 50.62 | 0.5854 | -831.9 | -341.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 632.57 | 0.84 | 383.74 | 26.14 | 58.82 | -29.08 | 50.79 | 0.5652 | -1305.6 | -371.4 | |
| 108.07 | -1.00 | 65.49 | -1.00 | 27.01 | 58.23 | -29.67 | 49.96 | 0.5782 | -1312.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 24.88 | 58.43 | -29.46 | 53.06 | 0.5605 | 533.0 | 398.1 | |
| 0.00 | 1.31 | 0.00 | 0.82 | 29.39 | 56.89 | -31.01 | 47.61 | 0.6101 | 735.0 | 553.1 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 25.57 | 57.60 | -30.30 | 52.63 | 0.5749 | -509.0 | -431.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 24.56 | 57.87 | -30.02 | 53.98 | 0.5648 | 753.0 | 571.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 26.08 | 56.99 | -30.91 | 52.31 | 0.5853 | -739.0 | -638.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 26.30 | 56.84 | -31.05 | 52.09 | 0.5884 | -621.0 | -563.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 26.52 | 56.70 | -31.20 | 51.87 | 0.5914 | -217.0 | -219.1 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 26.69 | 56.29 | -31.60 | 51.91 | 0.5971 | -667.0 | -395.6 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 26.37 | 56.27 | -31.62 | 52.40 | 0.5951 | -727.0 | -592.4 | |
| 0.00 | 2.45 | 0.00 | 1.44 | 20.53 | 57.72 | -30.18 | 60.72 | 0.5418 | -616.0 | -644.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 17.81 | 58.19 | -29.70 | 65.25 | 0.5215 | -699.0 | -510.5 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 27.18 | 55.78 | -32.12 | 51.56 | 0.6060 | -538.0 | -380.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 17.68 | 58.04 | -29.86 | 65.58 | 0.5231 | -714.0 | -616.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 25.36 | 56.07 | -31.83 | 54.06 | 0.5909 | -511.0 | -444.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 19.93 | 57.37 | -30.53 | 61.98 | 0.5430 | -764.0 | -679.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 25.17 | 55.97 | -31.93 | 54.42 | 0.5907 | -652.0 | -539.4 | |
| 0.00 | 1.66 | 0.00 | 1.07 | 29.01 | 54.05 | -33.85 | 50.18 | 0.6365 | -630.0 | -501.7 | |
| 0.00 | 1.84 | 0.00 | 1.16 | 26.95 | 54.54 | -33.36 | 52.75 | 0.6181 | -666.0 | -516.9 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 28.58 | 53.43 | -34.47 | 51.18 | 0.6402 | -527.0 | -439.5 | |
| 0.00 | 7.18 | 0.00 | 4.57 | 27.22 | 53.59 | -34.31 | 52.98 | 0.6300 | -585.0 | -644.1 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 27.99 | 53.28 | -34.62 | 52.10 | 0.6381 | -346.0 | -362.3 | |
| 0.00 | 1.75 | 0.00 | 1.12 | 27.54 | 53.40 | -34.50 | 52.66 | 0.6340 | -796.0 | -653.3 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 26.93 | 53.49 | -34.41 | 53.47 | 0.6293 | -737.0 | -534.5 | |
| 1.40 | 9.28 | 0.90 | 5.95 | 27.55 | 52.98 | -34.91 | 52.91 | 0.6385 | -515.5 | -532.1 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 17.36 | 54.86 | -33.04 | 67.76 | 0.5644 | -552.0 | -424.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 23.76 | 51.87 | -36.02 | 59.02 | 0.6301 | 521.0 | 376.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 26.76 | 50.61 | -37.29 | 55.39 | 0.6596 | -593.0 | -509.3 | |
| 0.00 | 1.66 | 0.00 | 1.17 | 26.92 | 45.46 | -42.44 | 57.64 | 0.7146 | 170.0 | 336.8 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 26.18 | 45.53 | -42.37 | 58.60 | 0.7109 | 536.0 | 477.2 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 25.97 | 45.30 | -42.59 | 58.97 | 0.7124 | 527.0 | 532.8 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 26.00 | 44.79 | -43.11 | 59.13 | 0.7179 | 607.0 | 493.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 21.93 | 46.35 | -41.54 | 64.11 | 0.6862 | 558.0 | 427.6 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 19.11 | 47.24 | -40.66 | 67.86 | 0.6670 | 713.0 | 520.8 | |
| 0.00 | 3.76 | 0.00 | 2.60 | 23.55 | 45.57 | -42.33 | 62.14 | 0.7006 | 837.0 | 634.9 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 26.49 | 43.96 | -43.94 | 58.81 | 0.7284 | 546.0 | 525.2 | |
| 0.00 | 1.40 | 0.00 | 1.01 | 25.97 | 43.93 | -43.97 | 59.50 | 0.7268 | 683.0 | 476.9 | |
| 0.00 | 1.14 | 0.00 | 0.82 | 26.47 | 43.64 | -44.26 | 58.96 | 0.7315 | 596.0 | 448.0 | |
| 0.00 | 3.50 | 0.00 | 2.51 | 25.64 | 43.89 | -44.00 | 59.94 | 0.7259 | 526.0 | 514.5 | |
| 0.00 | 2.28 | 0.00 | 1.70 | 28.33 | 42.24 | -45.66 | 57.09 | 0.7522 | 535.0 | 353.1 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 27.11 | 42.17 | -45.73 | 58.66 | 0.7485 | 434.0 | 344.9 | |
| 0.00 | 1.75 | 0.00 | 1.24 | 22.87 | 43.92 | -43.98 | 63.65 | 0.7164 | 749.0 | 586.0 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 29.97 | 40.21 | -47.69 | 55.78 | 0.7770 | 313.0 | 257.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
