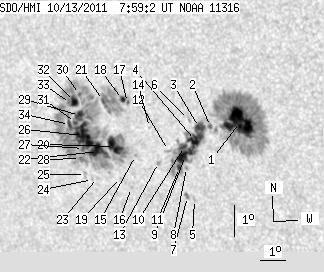

SDO HMI 2011-10-13 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.46 | 738.11 | 114.46 | 501.72 | -12.29 | 48.64 | -39.26 | 115.28 | 0.6851 | 5.6 | -27.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.53 | 242.65 | 27.39 | 156.14 | -11.79 | 52.20 | -35.70 | 116.64 | 0.6413 | 1049.2 | 400.7 | |
| 1.40 | 3.85 | 0.92 | 2.52 | -11.99 | 51.07 | -36.83 | 116.21 | 0.6559 | 576.2 | 418.5 | |
| 7.96 | 80.24 | 5.24 | 53.54 | -12.05 | 50.63 | -37.26 | 116.03 | 0.6613 | 781.5 | 195.0 | |
| 14.53 | -3.00 | 9.62 | -3.00 | -12.47 | 50.41 | -37.49 | 116.48 | 0.6662 | 843.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -14.36 | 50.02 | -37.88 | 118.79 | 0.6810 | 505.0 | 370.1 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -11.83 | 50.25 | -37.65 | 115.49 | 0.6647 | 553.0 | 452.2 | |
| 0.00 | 2.63 | 0.00 | 1.78 | -14.29 | 49.76 | -38.14 | 118.52 | 0.6835 | 682.0 | 497.8 | |
| 0.00 | 1.58 | 0.00 | 1.06 | -13.36 | 49.90 | -38.00 | 117.37 | 0.6768 | 516.0 | 405.5 | |
| 12.86 | -3.00 | 8.61 | -3.00 | -12.98 | 49.93 | -37.97 | 116.88 | 0.6744 | 753.8 | 999999 | |
| 2.10 | -3.00 | 1.40 | -3.00 | -12.69 | 49.94 | -37.95 | 116.50 | 0.6728 | 395.7 | 999999 | |
| 3.24 | -3.00 | 2.18 | -3.00 | -13.38 | 49.62 | -38.28 | 117.23 | 0.6801 | 525.8 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.24 | -12.86 | 49.28 | -38.61 | 116.34 | 0.6812 | -224.0 | -237.8 | |
| 0.00 | 2.10 | 0.00 | 1.43 | -13.27 | 48.81 | -39.09 | 116.62 | 0.6887 | -538.0 | -396.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -12.18 | 48.66 | -39.24 | 115.07 | 0.6850 | 440.0 | 307.0 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -13.11 | 47.92 | -39.97 | 115.90 | 0.6979 | -814.0 | -731.0 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -14.15 | 47.55 | -40.35 | 117.05 | 0.7073 | -748.0 | -571.5 | |
| 1.14 | 48.65 | 0.78 | 33.48 | -11.45 | 47.91 | -39.99 | 113.68 | 0.6901 | 535.4 | -153.0 | |
| 2.36 | -17.00 | 1.62 | -17.00 | -11.37 | 47.72 | -40.17 | 113.47 | 0.6918 | 670.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -13.86 | 47.16 | -40.74 | 116.46 | 0.7101 | -585.0 | -514.3 | |
| 14.53 | 344.42 | 10.12 | 243.50 | -12.89 | 47.12 | -40.78 | 115.17 | 0.7058 | -1068.5 | -333.7 | |
| 2.28 | -17.00 | 1.58 | -17.00 | -11.46 | 46.94 | -40.96 | 113.18 | 0.7012 | -642.8 | 999999 | |
| 14.00 | -20.00 | 9.88 | -20.00 | -13.09 | 46.42 | -41.47 | 115.07 | 0.7145 | -916.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -13.93 | 46.20 | -41.70 | 116.04 | 0.7209 | -460.0 | -387.4 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -14.01 | 45.98 | -41.92 | 116.02 | 0.7237 | -460.0 | -377.2 | |
| 0.00 | 2.01 | 0.00 | 1.44 | -13.87 | 45.72 | -42.18 | 115.71 | 0.7258 | -518.0 | -329.5 | |
| 26.69 | -20.00 | 18.93 | -20.00 | -12.63 | 45.90 | -42.00 | 114.20 | 0.7182 | -911.6 | 999999 | |
| 2.36 | -20.00 | 1.68 | -20.00 | -13.04 | 45.81 | -42.08 | 114.70 | 0.7210 | -418.6 | 999999 | |
| 1.14 | -20.00 | 0.81 | -20.00 | -13.37 | 45.62 | -42.28 | 115.02 | 0.7246 | -363.3 | 999999 | |
| 6.04 | -20.00 | 4.27 | -20.00 | -12.01 | 45.86 | -42.04 | 113.37 | 0.7159 | -846.7 | 999999 | |
| 1.31 | -20.00 | 0.92 | -20.00 | -11.34 | 45.98 | -41.91 | 112.55 | 0.7116 | -768.3 | 999999 | |
| 1.93 | -20.00 | 1.37 | -20.00 | -12.24 | 45.65 | -42.25 | 113.57 | 0.7192 | -635.5 | 999999 | |
| 5.69 | -20.00 | 4.02 | -20.00 | -11.58 | 45.73 | -42.16 | 112.74 | 0.7154 | -756.9 | 999999 | |
| 0.96 | -20.00 | 0.68 | -20.00 | -11.65 | 45.55 | -42.34 | 112.76 | 0.7177 | -701.5 | 999999 | |
| 3.41 | -20.00 | 2.44 | -20.00 | -12.32 | 45.38 | -42.52 | 113.55 | 0.7225 | -388.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
