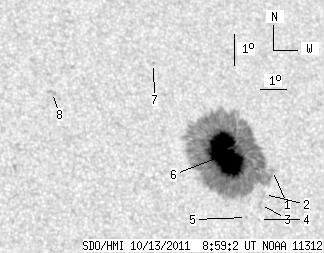

SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.13 | 490.23 | 52.03 | 299.61 | 23.15 | 120.00 | 32.65 | 302.01 | 0.5873 | -1244.6 | -388.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.47 | 22.56 | 121.70 | 34.35 | 300.07 | 0.6043 | 214.0 | 167.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 21.83 | 121.19 | 33.84 | 299.22 | 0.5945 | -153.0 | -181.3 | |
| 0.00 | 2.71 | 0.00 | 1.66 | 21.53 | 120.95 | 33.60 | 298.88 | 0.5901 | -311.0 | -160.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 21.07 | 120.79 | 33.44 | 298.23 | 0.5859 | 568.0 | 445.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 21.16 | 120.32 | 32.97 | 298.64 | 0.5804 | 398.0 | 358.9 | |
| 85.13 | 478.16 | 52.03 | 292.29 | 23.15 | 120.03 | 32.68 | 301.98 | 0.5876 | -1427.4 | -404.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 26.15 | 118.10 | 30.75 | 307.92 | 0.5839 | -638.0 | -468.8 | |
| 0.00 | 3.50 | 0.00 | 2.05 | 25.42 | 114.07 | 26.72 | 310.13 | 0.5332 | 721.0 | 631.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
