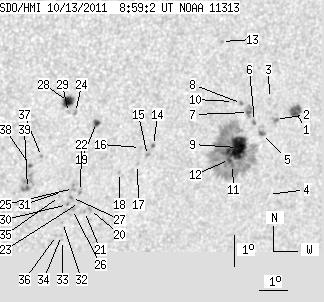

SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.82 | 257.46 | 34.77 | 160.37 | -14.67 | 118.63 | 31.28 | 235.89 | 0.6081 | 309.7 | 226.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.75 | 9.62 | 5.61 | 6.18 | -13.67 | 121.82 | 34.47 | 239.89 | 0.6380 | 671.0 | 555.7 | |
| 0.00 | 3.32 | 0.00 | 2.12 | -13.88 | 121.10 | 33.75 | 239.08 | 0.6311 | 903.0 | 656.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -13.19 | 120.77 | 33.42 | 239.80 | 0.6227 | 552.0 | 486.7 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -16.29 | 121.28 | 33.93 | 235.93 | 0.6491 | -677.0 | -556.0 | |
| 2.45 | 2.89 | 1.56 | 1.83 | -14.30 | 120.66 | 33.31 | 238.16 | 0.6286 | 668.9 | 601.2 | |
| 0.00 | 1.84 | 0.00 | 1.16 | -13.90 | 120.33 | 32.98 | 238.48 | 0.6222 | 807.0 | 685.0 | |
| 2.10 | 7.44 | 1.32 | 4.67 | -13.59 | 120.06 | 32.71 | 238.70 | 0.6170 | 732.9 | 652.1 | |
| 0.00 | 1.66 | 0.00 | 1.04 | -13.29 | 119.76 | 32.41 | 238.90 | 0.6115 | 934.0 | 815.4 | |
| 26.16 | 168.17 | 16.51 | 106.04 | -14.69 | 119.84 | 32.49 | 236.98 | 0.6219 | 1068.1 | 406.0 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -13.21 | 119.46 | 32.11 | 238.78 | 0.6073 | 657.0 | 484.6 | |
| 0.96 | -9.00 | 0.61 | -9.00 | -15.23 | 119.75 | 32.40 | 236.16 | 0.6246 | 416.7 | 999999 | |
| 1.92 | -9.00 | 1.21 | -9.00 | -15.06 | 119.61 | 32.26 | 236.28 | 0.6219 | 855.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -11.29 | 118.76 | 31.41 | 241.09 | 0.5861 | 688.0 | 649.1 | |
| 0.96 | 1.05 | 0.59 | 0.64 | -14.46 | 116.77 | 29.42 | 234.71 | 0.5849 | -661.4 | -806.0 | |
| 0.00 | 1.92 | 0.00 | 1.17 | -14.77 | 116.60 | 29.25 | 234.11 | 0.5854 | -742.0 | -575.2 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -14.50 | 116.31 | 28.96 | 234.24 | 0.5799 | -581.0 | -472.9 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -15.04 | 116.28 | 28.93 | 233.44 | 0.5839 | -758.0 | -586.3 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -15.26 | 115.68 | 28.33 | 232.55 | 0.5789 | -750.0 | -615.5 | |
| 2.80 | 3.32 | 1.66 | 1.97 | -13.62 | 114.65 | 27.30 | 233.94 | 0.5536 | 841.2 | 745.8 | |
| 0.00 | 2.01 | 0.00 | 1.22 | -16.41 | 114.80 | 27.45 | 230.08 | 0.5788 | -667.0 | -514.5 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -16.46 | 114.63 | 27.28 | 229.83 | 0.5774 | -547.0 | -455.9 | |
| 0.00 | 2.80 | 0.00 | 1.68 | -15.81 | 114.39 | 27.04 | 230.50 | 0.5691 | -734.0 | -587.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -16.16 | 114.41 | 27.06 | 230.02 | 0.5724 | -673.0 | -516.8 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -13.26 | 113.88 | 26.53 | 233.71 | 0.5416 | 716.0 | 589.0 | |
| 0.00 | 3.24 | 0.00 | 1.94 | -15.70 | 114.13 | 26.78 | 230.39 | 0.5653 | -921.0 | -786.6 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -16.38 | 114.20 | 26.85 | 229.50 | 0.5720 | -789.0 | -619.1 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -15.98 | 114.10 | 26.75 | 229.95 | 0.5675 | -868.0 | -721.4 | |
| 7.79 | 9.45 | 4.56 | 5.53 | -12.90 | 113.60 | 26.25 | 233.97 | 0.5352 | 958.2 | 720.7 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -13.25 | 113.64 | 26.29 | 233.47 | 0.5386 | 670.0 | 544.6 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -16.20 | 114.00 | 26.65 | 229.53 | 0.5683 | -830.0 | -720.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -15.77 | 113.76 | 26.41 | 229.89 | 0.5619 | -782.0 | -662.0 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -16.78 | 113.91 | 26.56 | 228.64 | 0.5725 | -756.0 | -668.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -17.37 | 114.00 | 26.65 | 227.94 | 0.5787 | -586.0 | -513.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -17.20 | 113.94 | 26.59 | 228.10 | 0.5766 | -637.0 | -537.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -15.93 | 113.68 | 26.33 | 229.58 | 0.5624 | -712.0 | -599.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -17.20 | 113.76 | 26.41 | 227.93 | 0.5747 | -727.0 | -618.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.61 | 112.88 | 25.53 | 230.62 | 0.5417 | -677.0 | -537.0 | |
| 0.44 | 1.66 | 0.26 | 0.98 | -14.88 | 112.54 | 25.19 | 229.85 | 0.5403 | -911.6 | -728.5 | |
| 1.49 | 14.00 | 0.88 | 8.26 | -15.62 | 112.53 | 25.18 | 228.77 | 0.5469 | -786.3 | -737.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
