SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.46 | 108.31 | 20.48 | 56.19 | 20.10 | 97.57 | 10.22 | 325.75 | 0.2984 | -67.0 | -151.0 | |
|
previous
or next observation for the same group /

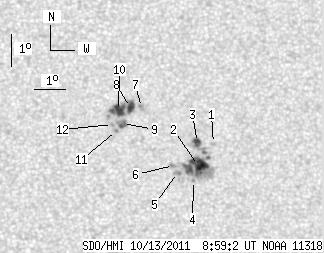

back to the solar disc SDO HMI 2011-10-13 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.19 | 0.00 | 1.14 | 20.05 | 99.04 | 11.69 | 322.11 | 0.3113 | -619.0 | -412.4 | |
| 17.41 | 45.85 | 9.03 | 23.77 | 19.38 | 98.50 | 11.15 | 321.94 | 0.2973 | -1079.6 | -657.6 | |
| 4.64 | 10.67 | 2.41 | 5.55 | 20.09 | 98.52 | 11.17 | 323.41 | 0.3066 | -958.2 | -776.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 18.92 | 98.31 | 10.96 | 321.39 | 0.2895 | -858.0 | -689.6 | |
| 0.00 | 3.32 | 0.00 | 1.72 | 19.18 | 97.81 | 10.46 | 323.22 | 0.2877 | -1086.0 | -938.7 | |
| 0.00 | 3.15 | 0.00 | 1.63 | 19.39 | 97.70 | 10.35 | 323.99 | 0.2894 | -306.0 | -365.2 | |
| 0.00 | 3.59 | 0.00 | 1.87 | 21.20 | 96.78 | 9.43 | 329.89 | 0.3058 | 853.0 | 662.7 | |
| 6.39 | 27.91 | 3.32 | 14.49 | 21.21 | 96.42 | 9.07 | 330.83 | 0.3029 | 916.0 | 712.9 | |
| 0.00 | 7.35 | 0.00 | 3.81 | 20.72 | 96.13 | 8.78 | 330.75 | 0.2936 | 1013.0 | 893.2 | |
| 11.02 | -8.00 | 5.72 | -8.00 | 21.12 | 96.03 | 8.68 | 331.74 | 0.2985 | 1057.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.50 | 95.93 | 8.58 | 330.94 | 0.2888 | 989.0 | 846.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 20.69 | 95.81 | 8.46 | 331.60 | 0.2906 | 1074.0 | 838.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
