SDO HMI 2011-10-13 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.84 | 250.96 | 54.63 | 156.41 | 10.29 | 49.46 | -37.35 | 80.90 | 0.6060 | 170.3 | -42.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

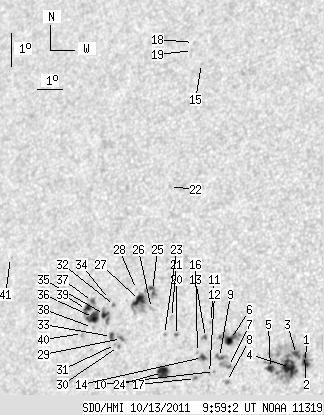

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 98.51 | 2.28 | 58.87 | 9.80 | 53.31 | -33.49 | 81.29 | 0.5523 | -1082.5 | -479.1 | |
| 1.49 | -1.00 | 0.88 | -1.00 | 10.01 | 53.25 | -33.55 | 80.93 | 0.5534 | -901.6 | 999999 | |
| 3.76 | -1.00 | 2.24 | -1.00 | 10.02 | 52.95 | -33.85 | 80.94 | 0.5576 | -894.6 | 999999 | |
| 14.17 | -1.00 | 8.46 | -1.00 | 9.62 | 52.78 | -34.02 | 81.68 | 0.5597 | -996.8 | 999999 | |
| 3.32 | -1.00 | 2.00 | -1.00 | 9.55 | 52.05 | -34.75 | 81.89 | 0.5700 | -729.6 | 999999 | |
| 6.30 | 18.63 | 3.87 | 11.44 | 10.32 | 50.46 | -36.34 | 80.72 | 0.5930 | 722.1 | -134.5 | |
| 0.61 | 12.69 | 0.38 | 7.80 | 9.51 | 50.49 | -36.31 | 82.09 | 0.5919 | -652.0 | 201.1 | |
| 0.00 | 3.15 | 0.00 | 1.93 | 9.06 | 50.47 | -36.34 | 82.85 | 0.5919 | -730.0 | -605.7 | |
| 2.97 | -7.00 | 1.83 | -7.00 | 9.76 | 50.12 | -36.69 | 81.70 | 0.5973 | 672.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 9.33 | 49.98 | -36.82 | 82.43 | 0.5988 | -370.0 | -398.4 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 10.78 | 49.63 | -37.17 | 80.05 | 0.6048 | -726.0 | -598.6 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 9.26 | 49.80 | -37.00 | 82.56 | 0.6013 | -477.0 | -416.8 | |
| 1.31 | 2.45 | 0.82 | 1.52 | 10.32 | 49.51 | -37.30 | 80.82 | 0.6061 | -542.5 | -485.7 | |
| 1.92 | 5.16 | 1.20 | 3.21 | 9.72 | 49.47 | -37.33 | 81.82 | 0.6061 | -734.1 | -501.6 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 18.55 | 47.67 | -39.13 | 68.19 | 0.6468 | 577.0 | 453.5 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 9.86 | 49.26 | -37.54 | 81.61 | 0.6090 | -536.0 | -455.9 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 9.08 | 49.29 | -37.52 | 82.90 | 0.6082 | -588.0 | -413.7 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 19.17 | 47.17 | -39.63 | 67.43 | 0.6548 | 566.0 | 436.5 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 18.92 | 47.20 | -39.60 | 67.78 | 0.6537 | 508.0 | 421.5 | |
| 1.14 | 1.40 | 0.72 | 0.88 | 10.31 | 48.39 | -38.41 | 80.95 | 0.6213 | 518.8 | 560.0 | |
| 0.00 | 1.66 | 0.00 | 1.05 | 10.84 | 48.12 | -38.69 | 80.13 | 0.6254 | -654.0 | -470.9 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 14.76 | 47.31 | -39.49 | 74.10 | 0.6418 | 566.0 | 402.5 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 10.31 | 47.92 | -38.88 | 80.99 | 0.6276 | -600.0 | -430.7 | |
| 9.97 | 11.81 | 6.32 | 7.48 | 9.17 | 48.00 | -38.80 | 82.81 | 0.6258 | 808.1 | 621.2 | |
| 3.32 | 31.49 | 2.13 | 20.29 | 11.60 | 47.24 | -39.56 | 79.03 | 0.6378 | 815.2 | 621.6 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 11.06 | 47.29 | -39.51 | 79.88 | 0.6366 | 341.0 | 254.7 | |
| 7.52 | -25.00 | 4.86 | -25.00 | 11.26 | 46.78 | -40.02 | 79.61 | 0.6435 | 928.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 11.59 | 46.61 | -40.20 | 79.13 | 0.6461 | 454.0 | 354.2 | |
| 1.57 | 3.67 | 1.02 | 2.39 | 10.08 | 46.25 | -40.55 | 81.49 | 0.6495 | 780.6 | 677.8 | |
| 0.00 | 1.40 | 0.00 | 0.91 | 9.84 | 46.17 | -40.64 | 81.87 | 0.6505 | 766.0 | 626.7 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 9.89 | 46.04 | -40.76 | 81.80 | 0.6522 | 686.0 | 615.5 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 11.05 | 45.81 | -40.99 | 80.04 | 0.6559 | 804.0 | 756.2 | |
| 3.06 | 3.50 | 2.00 | 2.29 | 10.12 | 45.84 | -40.96 | 81.46 | 0.6549 | 813.9 | 737.4 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 11.21 | 45.58 | -41.22 | 79.81 | 0.6591 | 688.0 | 560.8 | |
| 3.24 | 10.76 | 2.13 | 7.07 | 10.75 | 45.46 | -41.35 | 80.52 | 0.6603 | 831.8 | 758.5 | |
| 10.32 | 24.58 | 6.84 | 16.30 | 10.63 | 45.03 | -41.77 | 80.74 | 0.6657 | 775.0 | 472.5 | |
| 2.10 | -36.00 | 1.39 | -36.00 | 11.11 | 44.90 | -41.90 | 80.03 | 0.6677 | 610.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 10.33 | 45.04 | -41.77 | 81.19 | 0.6654 | 553.0 | 480.5 | |
| 4.90 | -36.00 | 3.26 | -36.00 | 10.85 | 44.70 | -42.10 | 80.43 | 0.6700 | 457.6 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.28 | 10.12 | 44.66 | -42.14 | 81.52 | 0.6701 | 594.0 | 453.3 | |
| 0.00 | 0.70 | 0.00 | 0.49 | 12.18 | 41.21 | -45.59 | 78.81 | 0.7142 | 415.0 | 443.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
