SDO HMI 2011-10-13 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.51 | 762.21 | 115.34 | 506.59 | -12.30 | 48.55 | -37.71 | 116.17 | 0.6672 | 76.6 | -52.1 | |
|
previous
or next observation for the same group /

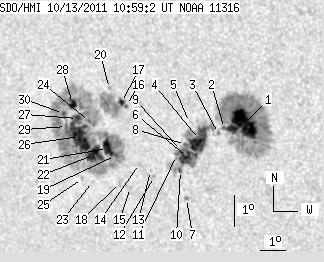

back to the solar disc SDO HMI 2011-10-13 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.32 | 234.07 | 29.82 | 147.34 | -11.76 | 52.29 | -33.97 | 117.73 | 0.6203 | 998.7 | 398.3 | |
| 1.49 | -1.00 | 0.95 | -1.00 | -11.93 | 51.56 | -34.70 | 117.48 | 0.6301 | 521.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -12.10 | 51.31 | -34.95 | 117.56 | 0.6341 | 600.0 | 548.1 | |
| 26.85 | 97.71 | 17.35 | 63.57 | -12.34 | 50.56 | -35.70 | 117.40 | 0.6444 | 821.2 | 209.6 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -11.82 | 50.26 | -36.00 | 116.48 | 0.6450 | 429.0 | 355.4 | |
| 14.61 | -4.00 | 9.54 | -4.00 | -12.94 | 50.00 | -36.25 | 117.88 | 0.6543 | 646.1 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.39 | -14.25 | 49.73 | -36.53 | 119.49 | 0.6651 | 643.0 | 542.5 | |
| 1.40 | -4.00 | 0.91 | -4.00 | -12.53 | 49.99 | -36.26 | 117.31 | 0.6521 | 268.4 | 999999 | |
| 4.02 | -4.00 | 2.63 | -4.00 | -12.73 | 49.81 | -36.45 | 117.47 | 0.6554 | -293.6 | 999999 | |
| 1.75 | -4.00 | 1.15 | -4.00 | -13.37 | 49.66 | -36.60 | 118.25 | 0.6608 | 463.0 | 999999 | |
| 0.79 | -4.00 | 0.52 | -4.00 | -12.90 | 49.59 | -36.67 | 117.56 | 0.6589 | 216.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -13.63 | 48.61 | -37.65 | 117.94 | 0.6743 | 341.0 | 290.6 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -13.45 | 48.48 | -37.77 | 117.62 | 0.6746 | 322.0 | 143.1 | |
| 0.00 | 1.66 | 0.00 | 1.12 | -13.25 | 48.09 | -38.16 | 117.12 | 0.6781 | -437.0 | -439.5 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.05 | 47.58 | -38.67 | 117.87 | 0.6881 | -606.0 | -426.3 | |
| 0.35 | 42.16 | 0.23 | 28.32 | -11.45 | 47.90 | -38.36 | 114.54 | 0.6710 | 494.5 | -222.4 | |
| 2.71 | -16.00 | 1.81 | -16.00 | -11.36 | 47.71 | -38.54 | 114.33 | 0.6727 | 647.8 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.91 | -13.91 | 47.21 | -39.04 | 117.48 | 0.6915 | -644.0 | -648.9 | |
| 1.40 | 372.45 | 0.95 | 256.69 | -13.06 | 47.18 | -39.07 | 116.33 | 0.6874 | -1137.4 | -323.4 | |
| 0.00 | 1.75 | 0.00 | 1.17 | -10.95 | 47.31 | -38.95 | 113.54 | 0.6755 | 555.0 | 414.2 | |
| 10.41 | -19.00 | 7.10 | -19.00 | -12.86 | 46.90 | -39.35 | 115.90 | 0.6896 | -1062.1 | 999999 | |
| 15.31 | -19.00 | 10.54 | -19.00 | -13.09 | 46.34 | -39.92 | 115.89 | 0.6971 | -847.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -13.96 | 46.08 | -40.18 | 116.89 | 0.7043 | -563.0 | -516.1 | |
| 0.87 | -19.00 | 0.60 | -19.00 | -12.05 | 46.33 | -39.92 | 114.51 | 0.6921 | -958.2 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.41 | -13.89 | 45.69 | -40.57 | 116.58 | 0.7083 | -427.0 | -361.2 | |
| 32.28 | -19.00 | 22.32 | -19.00 | -12.56 | 45.84 | -40.42 | 114.91 | 0.7001 | -821.0 | 999999 | |
| 4.11 | -19.00 | 2.83 | -19.00 | -11.99 | 45.86 | -40.39 | 114.17 | 0.6972 | -861.1 | 999999 | |
| 6.04 | -19.00 | 4.15 | -19.00 | -11.53 | 45.74 | -40.51 | 113.50 | 0.6964 | -785.8 | 999999 | |
| 1.40 | -19.00 | 0.97 | -19.00 | -12.28 | 45.36 | -40.89 | 114.29 | 0.7042 | -328.9 | 999999 | |
| 1.40 | -19.00 | 0.97 | -19.00 | -11.87 | 45.32 | -40.94 | 113.73 | 0.7028 | -588.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
