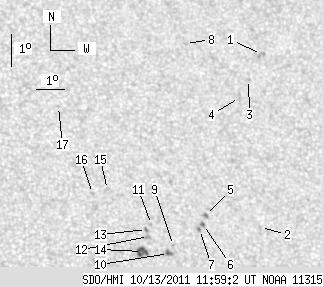

SDO HMI 2011-10-13 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.41 | 38.73 | 5.76 | 21.82 | 21.42 | 110.20 | 24.49 | 305.34 | 0.4755 | 421.8 | 248.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.50 | 0.00 | 2.07 | 25.52 | 113.98 | 28.27 | 308.93 | 0.5516 | 648.0 | 665.9 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 20.14 | 112.75 | 27.04 | 300.85 | 0.4992 | -673.0 | -464.9 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 24.75 | 113.30 | 27.59 | 308.31 | 0.5381 | 754.0 | 654.1 | |
| 0.00 | 2.62 | 0.00 | 1.53 | 24.20 | 112.84 | 27.13 | 307.82 | 0.5286 | 194.0 | 291.0 | |
| 0.00 | 2.71 | 0.00 | 1.53 | 20.59 | 110.88 | 25.17 | 303.27 | 0.4781 | -998.0 | -741.0 | |
| 1.14 | 2.54 | 0.64 | 1.43 | 20.32 | 110.76 | 25.05 | 302.86 | 0.4747 | -885.4 | -778.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 20.17 | 110.59 | 24.88 | 302.73 | 0.4715 | -972.0 | -858.0 | |
| 0.00 | 1.75 | 0.00 | 1.02 | 25.99 | 111.26 | 25.55 | 312.16 | 0.5251 | 801.0 | 535.2 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 19.72 | 109.61 | 23.90 | 302.77 | 0.4555 | 446.0 | 348.0 | |
| 2.01 | 4.20 | 1.12 | 2.33 | 19.48 | 109.39 | 23.69 | 302.51 | 0.4510 | 814.3 | 666.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 20.39 | 108.95 | 23.24 | 304.74 | 0.4520 | 729.0 | 536.1 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 20.03 | 108.79 | 23.08 | 304.19 | 0.4472 | 907.0 | 765.0 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 20.24 | 108.75 | 23.05 | 304.65 | 0.4484 | 792.0 | 557.2 | |
| 7.26 | 7.70 | 4.00 | 4.24 | 19.57 | 108.51 | 22.80 | 303.57 | 0.4402 | 915.2 | 984.0 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 21.53 | 107.60 | 21.90 | 308.38 | 0.4444 | 561.0 | 471.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 21.43 | 107.07 | 21.36 | 308.80 | 0.4370 | 595.0 | 528.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 24.18 | 106.33 | 20.63 | 314.71 | 0.4540 | 544.0 | 388.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
