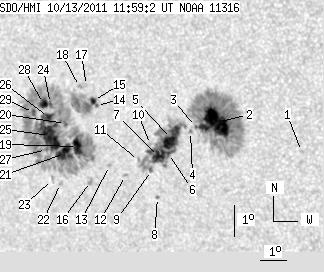

SDO HMI 2011-10-13 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 162.76 | 769.18 | 107.32 | 506.87 | -12.26 | 48.57 | -37.14 | 116.46 | 0.6603 | -3.9 | -24.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.69 | -12.46 | 55.30 | -30.40 | 121.49 | 0.5817 | 655.0 | 499.9 | |
| 44.60 | 237.45 | 27.92 | 148.37 | -11.73 | 52.30 | -33.41 | 118.07 | 0.6133 | 994.6 | 417.0 | |
| 0.35 | -2.00 | 0.22 | -2.00 | -11.90 | 51.54 | -34.17 | 117.79 | 0.6235 | 545.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.00 | -12.07 | 51.33 | -34.38 | 117.89 | 0.6271 | 615.0 | 545.3 | |
| 20.12 | 98.83 | 12.90 | 63.77 | -12.33 | 50.58 | -35.13 | 117.76 | 0.6376 | 847.4 | 248.8 | |
| 1.14 | -5.00 | 0.73 | -5.00 | -12.82 | 50.39 | -35.32 | 118.32 | 0.6427 | 777.2 | 999999 | |
| 9.18 | -5.00 | 5.96 | -5.00 | -12.94 | 49.99 | -35.72 | 118.22 | 0.6480 | 648.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -14.25 | 49.72 | -35.99 | 119.85 | 0.6589 | 585.0 | 512.9 | |
| 1.66 | -5.00 | 1.09 | -5.00 | -13.40 | 49.64 | -36.06 | 118.63 | 0.6548 | 416.3 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.19 | -12.57 | 49.74 | -35.96 | 117.56 | 0.6488 | -209.0 | -166.8 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -13.11 | 49.20 | -36.51 | 117.95 | 0.6583 | -109.0 | -73.2 | |
| 0.00 | 2.01 | 0.00 | 1.33 | -13.63 | 48.60 | -37.10 | 118.27 | 0.6680 | 493.0 | 274.4 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -13.35 | 48.03 | -37.67 | 117.54 | 0.6730 | -819.0 | -665.1 | |
| 0.44 | 41.80 | 0.29 | 27.86 | -11.48 | 47.85 | -37.86 | 114.87 | 0.6652 | 501.4 | -231.2 | |
| 3.15 | -14.00 | 2.08 | -14.00 | -11.33 | 47.76 | -37.95 | 114.60 | 0.6655 | 644.1 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.49 | -13.91 | 47.18 | -38.53 | 117.78 | 0.6857 | -869.0 | -672.4 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -10.87 | 47.56 | -38.15 | 113.86 | 0.6656 | 69.0 | 86.3 | |
| 0.00 | 2.10 | 0.00 | 1.39 | -10.92 | 47.28 | -38.43 | 113.77 | 0.6692 | 581.0 | 441.2 | |
| 10.58 | 369.59 | 7.16 | 252.57 | -12.83 | 46.88 | -38.83 | 116.15 | 0.6834 | -1063.1 | -323.0 | |
| 1.40 | -19.00 | 0.95 | -19.00 | -12.13 | 46.53 | -39.18 | 115.01 | 0.6839 | -976.8 | 999999 | |
| 16.18 | -19.00 | 11.05 | -19.00 | -13.09 | 46.31 | -39.40 | 116.17 | 0.6912 | -823.7 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.27 | -14.06 | 45.96 | -39.75 | 117.25 | 0.7001 | -608.0 | -540.4 | |
| 0.00 | 2.27 | 0.00 | 1.58 | -13.95 | 45.66 | -40.05 | 116.94 | 0.7029 | -461.0 | -384.5 | |
| 1.57 | -19.00 | 1.07 | -19.00 | -11.54 | 46.03 | -39.67 | 113.94 | 0.6867 | -817.2 | 999999 | |
| 34.81 | -19.00 | 23.88 | -19.00 | -12.55 | 45.81 | -39.89 | 115.19 | 0.6942 | -811.7 | 999999 | |
| 8.57 | -19.00 | 5.85 | -19.00 | -11.98 | 45.88 | -39.83 | 114.46 | 0.6907 | -808.1 | 999999 | |
| 1.40 | -19.00 | 0.97 | -19.00 | -13.01 | 45.60 | -40.10 | 115.68 | 0.6987 | -234.8 | 999999 | |
| 5.51 | -19.00 | 3.76 | -19.00 | -11.56 | 45.75 | -39.95 | 113.82 | 0.6901 | -791.8 | 999999 | |
| 2.10 | -19.00 | 1.44 | -19.00 | -11.87 | 45.30 | -40.41 | 114.00 | 0.6968 | -561.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
