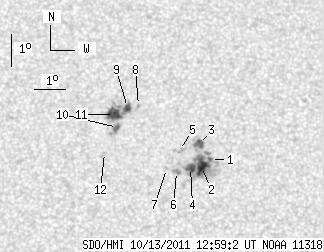

SDO HMI 2011-10-13 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.43 | 111.92 | 23.23 | 58.51 | 20.02 | 97.68 | 12.52 | 320.26 | 0.3205 | -151.4 | -229.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 65.23 | 0.73 | 34.13 | 19.58 | 98.96 | 13.80 | 316.59 | 0.3285 | -555.7 | -570.7 | |
| 11.45 | -1.00 | 5.99 | -1.00 | 19.37 | 98.65 | 13.49 | 316.75 | 0.3226 | -1124.4 | 999999 | |
| 6.56 | -1.00 | 3.44 | -1.00 | 20.05 | 98.64 | 13.48 | 318.25 | 0.3304 | -889.6 | 999999 | |
| 6.30 | -1.00 | 3.29 | -1.00 | 19.35 | 98.29 | 13.13 | 317.44 | 0.3183 | -1159.9 | 999999 | |
| 0.00 | 4.37 | 0.00 | 2.29 | 19.88 | 97.97 | 12.82 | 319.28 | 0.3211 | -580.0 | -490.6 | |
| 0.00 | 4.20 | 0.00 | 2.19 | 19.23 | 97.82 | 12.67 | 318.18 | 0.3118 | -987.0 | -833.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 19.33 | 97.51 | 12.35 | 319.09 | 0.3096 | 117.0 | 227.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 21.29 | 96.75 | 11.59 | 324.84 | 0.3265 | 720.0 | 529.3 | |
| 4.20 | 28.59 | 2.20 | 14.93 | 21.24 | 96.38 | 11.23 | 325.57 | 0.3224 | 834.8 | 660.2 | |
| 2.45 | 6.47 | 1.28 | 3.37 | 20.63 | 96.01 | 10.85 | 325.28 | 0.3108 | 832.4 | 815.9 | |
| 12.07 | -9.00 | 6.30 | -9.00 | 21.03 | 95.94 | 10.79 | 326.22 | 0.3155 | 1086.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 19.86 | 95.54 | 10.38 | 324.92 | 0.2961 | 728.0 | 553.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
