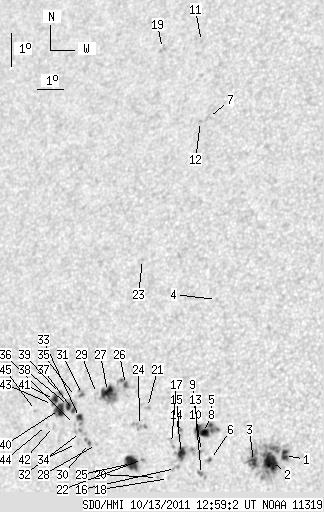

SDO HMI 2011-10-13 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.33 | 277.82 | 56.81 | 170.36 | 10.55 | 49.08 | -36.08 | 80.33 | 0.5893 | 188.0 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.33 | 82.72 | 3.10 | 48.42 | 9.83 | 53.48 | -31.68 | 80.98 | 0.5260 | -990.9 | -483.8 | |
| 15.30 | -1.00 | 8.94 | -1.00 | 9.62 | 53.03 | -32.12 | 81.43 | 0.5323 | -1012.3 | 999999 | |
| 4.81 | -1.00 | 2.83 | -1.00 | 9.59 | 52.39 | -32.77 | 81.58 | 0.5416 | -751.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 14.36 | 50.34 | -34.81 | 73.52 | 0.5790 | 634.0 | 504.8 | |
| 1.14 | 25.18 | 0.68 | 15.14 | 10.61 | 50.70 | -34.46 | 79.97 | 0.5670 | -493.2 | 208.4 | |
| 0.70 | 2.71 | 0.42 | 1.62 | 9.56 | 50.82 | -34.33 | 81.81 | 0.5641 | -358.0 | -513.0 | |
| 0.00 | 3.67 | 0.00 | 2.31 | 19.86 | 48.82 | -36.34 | 65.10 | 0.6167 | 274.0 | 268.7 | |
| 7.61 | -5.00 | 4.58 | -5.00 | 10.35 | 50.47 | -34.69 | 80.45 | 0.5699 | 692.8 | 999999 | |
| 0.00 | 4.55 | 0.00 | 2.73 | 9.09 | 50.55 | -34.61 | 82.66 | 0.5677 | -745.0 | -603.8 | |
| 0.00 | 1.92 | 0.00 | 1.16 | 9.78 | 50.47 | -34.69 | 81.46 | 0.5694 | 526.0 | 544.4 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 22.18 | 47.87 | -37.29 | 61.99 | 0.6377 | 480.0 | 454.6 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 19.72 | 48.54 | -36.62 | 65.44 | 0.6196 | 803.0 | 662.5 | |
| 2.27 | -5.00 | 1.37 | -5.00 | 10.46 | 50.20 | -34.96 | 80.31 | 0.5739 | -421.2 | 999999 | |
| 6.38 | 15.83 | 3.87 | 9.60 | 9.68 | 49.74 | -35.42 | 81.71 | 0.5796 | -780.2 | 11.9 | |
| 0.00 | 3.50 | 0.00 | 2.13 | 10.30 | 49.58 | -35.57 | 80.66 | 0.5823 | -556.0 | -605.3 | |
| 0.00 | 3.41 | 0.00 | 2.07 | 9.21 | 49.57 | -35.59 | 82.53 | 0.5816 | -105.0 | -282.3 | |
| 0.00 | 3.59 | 0.00 | 2.19 | 9.95 | 49.33 | -35.83 | 81.28 | 0.5855 | -351.0 | -327.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 8.90 | 49.34 | -35.82 | 83.08 | 0.5846 | 539.0 | 394.5 | |
| 0.00 | 2.80 | 0.00 | 1.83 | 21.86 | 46.37 | -38.79 | 63.12 | 0.6542 | 704.0 | 589.2 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 8.91 | 48.93 | -36.23 | 83.10 | 0.5904 | -476.0 | -328.0 | |
| 0.00 | 2.01 | 0.00 | 1.24 | 10.97 | 48.28 | -36.88 | 79.68 | 0.6011 | -735.0 | -554.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 9.41 | 48.30 | -36.86 | 82.29 | 0.5994 | 754.0 | 674.7 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 15.40 | 47.29 | -37.87 | 72.68 | 0.6222 | 675.0 | 574.4 | |
| 0.00 | 7.00 | 0.00 | 4.34 | 10.42 | 48.05 | -37.10 | 80.64 | 0.6036 | -624.0 | -253.4 | |
| 13.03 | 15.56 | 8.09 | 9.66 | 9.26 | 47.90 | -37.26 | 82.56 | 0.6048 | 826.9 | 633.8 | |
| 2.27 | 31.83 | 1.42 | 20.06 | 11.61 | 47.34 | -37.82 | 78.77 | 0.6146 | 944.7 | 684.8 | |
| 8.31 | -26.00 | 5.25 | -26.00 | 11.35 | 46.68 | -38.48 | 79.27 | 0.6232 | 910.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 9.74 | 46.49 | -38.67 | 81.87 | 0.6243 | 672.0 | 507.6 | |
| 0.00 | 1.49 | 0.00 | 0.94 | 11.27 | 46.26 | -38.90 | 79.46 | 0.6287 | 555.0 | 412.3 | |
| 0.96 | 2.89 | 0.61 | 1.83 | 9.76 | 46.21 | -38.95 | 81.87 | 0.6280 | 406.9 | 561.9 | |
| 1.05 | 3.67 | 0.67 | 2.35 | 11.20 | 45.72 | -39.44 | 79.63 | 0.6358 | 777.5 | 599.0 | |
| 0.00 | 5.68 | 0.00 | 3.63 | 10.06 | 45.82 | -39.34 | 81.42 | 0.6336 | 828.0 | 598.9 | |
| 3.06 | 6.56 | 1.96 | 4.19 | 10.51 | 45.71 | -39.45 | 80.72 | 0.6353 | 882.1 | 710.8 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 9.72 | 45.71 | -39.45 | 81.96 | 0.6348 | 518.0 | 558.0 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 11.12 | 45.45 | -39.70 | 79.78 | 0.6392 | 492.0 | 517.0 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 10.29 | 45.55 | -39.61 | 81.09 | 0.6373 | 558.0 | 463.7 | |
| 1.92 | 36.81 | 1.24 | 23.81 | 10.70 | 45.44 | -39.72 | 80.45 | 0.6390 | 775.1 | 560.4 | |
| 3.50 | -37.00 | 2.25 | -37.00 | 10.84 | 45.22 | -39.94 | 80.25 | 0.6420 | 784.1 | 999999 | |
| 1.05 | -37.00 | 0.68 | -37.00 | 11.17 | 44.85 | -40.31 | 79.77 | 0.6472 | 638.8 | 999999 | |
| 8.92 | -37.00 | 5.78 | -37.00 | 10.69 | 44.89 | -40.27 | 80.51 | 0.6463 | 737.7 | 999999 | |
| 3.85 | -37.00 | 2.50 | -37.00 | 10.98 | 44.64 | -40.52 | 80.09 | 0.6498 | 479.3 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.08 | 10.17 | 44.73 | -40.43 | 81.33 | 0.6480 | 666.0 | 473.1 | |
| 0.87 | -37.00 | 0.57 | -37.00 | 10.82 | 44.58 | -40.57 | 80.33 | 0.6504 | 353.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 10.18 | 44.44 | -40.71 | 81.33 | 0.6517 | 475.0 | 351.5 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 10.60 | 43.93 | -41.22 | 80.73 | 0.6586 | 393.0 | 329.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
