SDO HMI 2011-10-13 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.12 | 265.85 | 64.69 | 161.35 | 10.21 | 49.28 | -35.33 | 80.79 | 0.5780 | 83.3 | 50.9 | |
|
previous
or next observation for the same group /

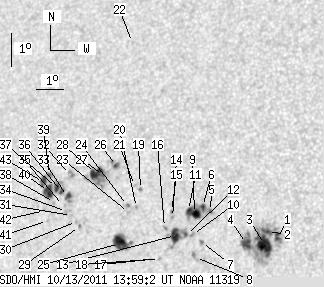

back to the solar disc SDO HMI 2011-10-13 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.58 | 82.10 | 2.07 | 47.70 | 9.83 | 53.53 | -31.07 | 80.88 | 0.5172 | -1064.7 | -514.8 | |
| 3.58 | -1.00 | 2.08 | -1.00 | 9.99 | 53.16 | -31.45 | 80.63 | 0.5228 | -808.0 | 999999 | |
| 18.53 | -1.00 | 10.76 | -1.00 | 9.60 | 53.10 | -31.51 | 81.40 | 0.5233 | -988.7 | 999999 | |
| 6.03 | -1.00 | 3.53 | -1.00 | 9.59 | 52.45 | -32.16 | 81.49 | 0.5327 | -777.8 | 999999 | |
| 1.22 | 27.98 | 0.73 | 16.71 | 10.47 | 51.05 | -33.56 | 80.07 | 0.5540 | -445.7 | 197.1 | |
| 1.14 | -5.00 | 0.68 | -5.00 | 10.61 | 50.74 | -33.87 | 79.88 | 0.5586 | -420.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 9.53 | 50.83 | -33.78 | 81.80 | 0.5561 | -739.0 | -592.4 | |
| 0.00 | 4.02 | 0.00 | 2.40 | 9.07 | 50.66 | -33.95 | 82.64 | 0.5582 | -613.0 | -670.8 | |
| 7.43 | -5.00 | 4.44 | -5.00 | 10.38 | 50.47 | -34.14 | 80.32 | 0.5621 | 623.5 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.31 | 9.75 | 50.47 | -34.13 | 81.45 | 0.5614 | 720.0 | 589.3 | |
| 2.36 | -5.00 | 1.42 | -5.00 | 10.46 | 50.24 | -34.37 | 80.22 | 0.5655 | -449.6 | 999999 | |
| 1.66 | 26.58 | 1.00 | 15.98 | 9.74 | 50.26 | -34.35 | 81.49 | 0.5645 | 471.5 | -135.2 | |
| 9.09 | -12.00 | 5.47 | -12.00 | 9.68 | 49.86 | -34.75 | 81.63 | 0.5701 | -799.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 10.21 | 49.68 | -34.93 | 80.72 | 0.5731 | -733.0 | -598.3 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 10.39 | 49.62 | -34.99 | 80.42 | 0.5742 | -664.0 | -619.1 | |
| 0.00 | 1.66 | 0.00 | 1.00 | 9.90 | 49.42 | -35.19 | 81.30 | 0.5765 | -499.0 | -442.6 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 8.96 | 49.35 | -35.26 | 82.94 | 0.5768 | 637.0 | 480.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 8.91 | 48.98 | -35.63 | 83.05 | 0.5820 | -484.0 | -265.9 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 10.98 | 48.38 | -36.23 | 79.58 | 0.5922 | -690.0 | -618.2 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 10.43 | 48.30 | -36.31 | 80.51 | 0.5926 | 440.0 | 379.7 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 11.09 | 48.13 | -36.47 | 79.44 | 0.5957 | -482.0 | -415.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 15.37 | 47.30 | -37.31 | 72.57 | 0.6148 | 642.0 | 508.8 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 10.27 | 48.02 | -36.59 | 80.83 | 0.5963 | -559.0 | -402.6 | |
| 0.35 | 2.01 | 0.22 | 1.24 | 10.47 | 47.96 | -36.65 | 80.49 | 0.5974 | -657.0 | -462.4 | |
| 14.51 | 20.46 | 8.96 | 12.61 | 9.32 | 47.80 | -36.81 | 82.44 | 0.5986 | 804.2 | 560.6 | |
| 1.92 | 6.29 | 1.20 | 3.92 | 11.64 | 47.36 | -37.25 | 78.63 | 0.6069 | 929.2 | 668.5 | |
| 0.96 | 29.64 | 0.60 | 18.59 | 11.31 | 46.91 | -37.70 | 79.23 | 0.6126 | 945.9 | 694.3 | |
| 9.01 | -27.00 | 5.65 | -27.00 | 11.35 | 46.60 | -38.01 | 79.21 | 0.6169 | 928.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.83 | 9.73 | 46.21 | -38.39 | 81.88 | 0.6206 | 634.0 | 499.4 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 9.87 | 46.08 | -38.53 | 81.66 | 0.6225 | 484.0 | 491.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 10.04 | 45.86 | -38.75 | 81.41 | 0.6256 | 722.0 | 555.6 | |
| 0.00 | 4.37 | 0.00 | 2.78 | 11.26 | 45.63 | -38.97 | 79.48 | 0.6297 | 649.0 | 689.6 | |
| 3.06 | 5.68 | 1.95 | 3.61 | 10.60 | 45.62 | -38.99 | 80.54 | 0.6292 | 867.1 | 851.0 | |
| 0.00 | 3.23 | 0.00 | 2.05 | 10.15 | 45.65 | -38.96 | 81.25 | 0.6285 | 685.0 | 589.7 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 10.32 | 45.51 | -39.10 | 80.99 | 0.6305 | 468.0 | 503.0 | |
| 2.10 | 31.12 | 1.34 | 19.98 | 10.73 | 45.36 | -39.24 | 80.35 | 0.6328 | 835.8 | 588.4 | |
| 3.50 | -36.00 | 2.24 | -36.00 | 10.84 | 45.15 | -39.46 | 80.21 | 0.6357 | 812.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 10.38 | 45.14 | -39.47 | 80.92 | 0.6355 | 394.0 | 435.6 | |
| 1.40 | -36.00 | 0.90 | -36.00 | 11.21 | 44.81 | -39.80 | 79.66 | 0.6405 | 594.6 | 999999 | |
| 9.62 | -36.00 | 6.18 | -36.00 | 10.70 | 44.85 | -39.75 | 80.45 | 0.6395 | 733.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 9.83 | 44.95 | -39.66 | 81.81 | 0.6377 | 513.0 | 429.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 10.12 | 44.78 | -39.82 | 81.36 | 0.6400 | 648.0 | 524.3 | |
| 5.07 | -36.00 | 3.27 | -36.00 | 10.95 | 44.62 | -39.99 | 80.08 | 0.6429 | 534.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
