SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.84 | 488.21 | 53.14 | 309.51 | 23.21 | 119.91 | 35.85 | 300.27 | 0.6256 | -1190.0 | -365.5 | |
|
previous
or next observation for the same group /

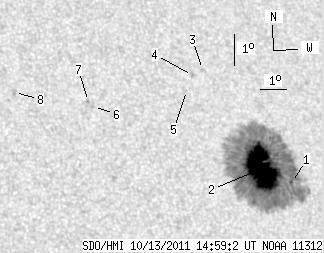

back to the solar disc SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 480.00 | 0.95 | 304.48 | 22.66 | 121.02 | 36.96 | 298.89 | 0.6361 | -374.7 | -374.8 | |
| 82.35 | -1.00 | 52.19 | -1.00 | 23.17 | 119.97 | 35.91 | 300.17 | 0.6260 | -1349.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 26.40 | 118.64 | 34.58 | 305.69 | 0.6283 | -593.0 | -464.0 | |
| 0.00 | 2.10 | 0.00 | 1.32 | 26.23 | 118.18 | 34.12 | 305.74 | 0.6222 | -649.0 | -470.8 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 25.77 | 117.79 | 33.73 | 305.31 | 0.6150 | -672.0 | -547.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 25.46 | 114.05 | 30.00 | 307.45 | 0.5708 | 667.0 | 537.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 25.62 | 113.91 | 29.85 | 307.82 | 0.5703 | 823.0 | 741.2 | |
| 0.00 | 2.54 | 0.00 | 1.49 | 26.04 | 111.22 | 27.16 | 310.73 | 0.5433 | 835.0 | 636.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
