SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.30 | 229.05 | 30.69 | 148.36 | -14.68 | 118.69 | 34.64 | 238.52 | 0.6463 | 381.0 | 199.0 | |
|
previous
or next observation for the same group /

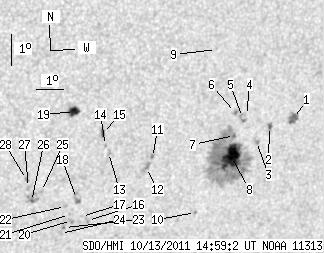

back to the solar disc SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.38 | 8.57 | 4.29 | 5.76 | -13.68 | 122.03 | 37.97 | 242.20 | 0.6782 | 580.7 | 512.9 | |
| 1.75 | 2.54 | 1.16 | 1.69 | -13.87 | 121.13 | 37.07 | 241.38 | 0.6691 | 638.6 | 577.6 | |
| 0.00 | 2.71 | 0.00 | 1.80 | -14.32 | 120.71 | 36.66 | 240.50 | 0.6669 | 733.0 | 507.9 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -13.46 | 120.17 | 36.11 | 241.32 | 0.6557 | 446.0 | 458.2 | |
| 0.00 | 3.41 | 0.00 | 2.23 | -13.52 | 120.03 | 35.97 | 241.15 | 0.6544 | 740.0 | 705.9 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -13.34 | 119.73 | 35.68 | 241.19 | 0.6499 | 785.0 | 696.8 | |
| 0.44 | 154.81 | 0.29 | 101.63 | -14.07 | 119.82 | 35.77 | 240.25 | 0.6553 | 959.8 | 395.5 | |
| 28.50 | -7.00 | 18.73 | -7.00 | -14.74 | 119.83 | 35.78 | 239.35 | 0.6595 | 1004.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -11.30 | 118.70 | 34.65 | 243.40 | 0.6257 | 531.0 | 408.4 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -16.47 | 118.81 | 34.75 | 236.32 | 0.6592 | 563.0 | 463.2 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -14.59 | 116.85 | 32.79 | 237.37 | 0.6245 | -790.0 | -575.9 | |
| 0.00 | 6.29 | 0.00 | 3.98 | -14.90 | 116.68 | 32.62 | 236.81 | 0.6247 | -541.0 | -515.7 | |
| 0.00 | 2.45 | 0.00 | 1.52 | -14.34 | 115.20 | 31.14 | 236.40 | 0.6038 | -411.0 | -496.0 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -14.11 | 115.06 | 31.00 | 236.61 | 0.6005 | -474.0 | -473.0 | |
| 2.62 | 4.46 | 1.61 | 2.74 | -13.72 | 114.89 | 30.83 | 237.03 | 0.5957 | 719.8 | 481.9 | |
| 0.00 | 2.54 | 0.00 | 1.59 | -16.49 | 114.80 | 30.74 | 233.07 | 0.6154 | -561.0 | -514.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -16.35 | 114.55 | 30.50 | 233.05 | 0.6116 | -700.0 | -605.5 | |
| 0.00 | 4.90 | 0.00 | 3.04 | -15.75 | 114.27 | 30.21 | 233.61 | 0.6039 | -825.0 | -683.4 | |
| 6.91 | 8.65 | 4.18 | 5.24 | -12.96 | 113.79 | 29.73 | 237.20 | 0.5771 | 900.2 | 684.8 | |
| 0.00 | 2.19 | 0.00 | 1.36 | -16.46 | 114.21 | 30.15 | 232.59 | 0.6087 | -866.0 | -720.2 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -16.26 | 114.11 | 30.05 | 232.77 | 0.6060 | -798.0 | -626.9 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -15.99 | 113.92 | 29.86 | 232.97 | 0.6018 | -739.0 | -615.1 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -16.67 | 114.00 | 29.94 | 232.11 | 0.6080 | -880.0 | -716.2 | |
| 0.00 | 2.01 | 0.00 | 1.25 | -16.86 | 113.88 | 29.83 | 231.76 | 0.6083 | -654.0 | -558.2 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -15.46 | 112.97 | 28.92 | 232.84 | 0.5870 | -717.0 | -624.1 | |
| 0.70 | 8.83 | 0.43 | 5.38 | -15.76 | 112.67 | 28.61 | 232.12 | 0.5860 | -708.1 | -680.0 | |
| 0.00 | 1.75 | 0.00 | 1.06 | -15.31 | 112.49 | 28.43 | 232.60 | 0.5803 | -726.0 | -622.2 | |
| 0.00 | 1.75 | 0.00 | 1.06 | -15.04 | 112.38 | 28.32 | 232.87 | 0.5769 | -858.0 | -721.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
