SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.72 | 717.96 | 65.70 | 424.00 | 26.91 | 57.40 | -26.66 | 47.36 | 0.5453 | -762.5 | -356.4 | |
|
previous
or next observation for the same group /

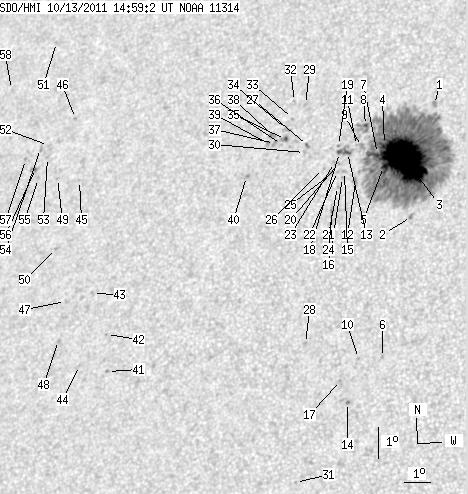

back to the solar disc SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.15 | 0.00 | 1.86 | 28.84 | 58.83 | -25.23 | 43.25 | 0.5471 | 368.0 | 373.5 | |
| 0.00 | 2.10 | 0.00 | 1.21 | 25.23 | 58.84 | -25.21 | 48.71 | 0.5149 | 679.0 | 324.9 | |
| 102.28 | 620.12 | 59.98 | 363.85 | 27.03 | 58.20 | -25.86 | 46.54 | 0.5374 | -1284.2 | -389.2 | |
| 1.14 | -3.00 | 0.67 | -3.00 | 27.47 | 57.30 | -26.76 | 46.73 | 0.5508 | -656.1 | 999999 | |
| 1.40 | -3.00 | 0.82 | -3.00 | 26.77 | 57.44 | -26.62 | 47.65 | 0.5433 | -904.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 20.79 | 58.69 | -25.36 | 56.52 | 0.4821 | -743.0 | -635.0 | |
| 0.61 | -3.00 | 0.36 | -3.00 | 27.17 | 57.11 | -26.95 | 47.35 | 0.5503 | -542.9 | 999999 | |
| 0.87 | 9.18 | 0.52 | 5.50 | 28.05 | 56.42 | -27.64 | 46.69 | 0.5649 | -540.1 | -228.9 | |
| 0.00 | 3.58 | 0.00 | 2.14 | 27.37 | 56.45 | -27.61 | 47.66 | 0.5589 | -605.0 | -522.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 20.73 | 57.85 | -26.20 | 57.38 | 0.4923 | -772.0 | -674.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 27.39 | 56.26 | -27.80 | 47.80 | 0.5612 | -325.0 | -280.4 | |
| 0.00 | 3.06 | 0.00 | 1.81 | 26.25 | 56.52 | -27.54 | 49.29 | 0.5491 | -782.0 | -646.5 | |
| 1.84 | 9.44 | 1.10 | 5.65 | 27.16 | 55.98 | -28.08 | 48.40 | 0.5623 | -799.0 | -570.2 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 19.36 | 57.71 | -26.35 | 60.04 | 0.4853 | -919.0 | -714.4 | |
| 0.00 | 1.75 | 0.00 | 1.04 | 26.55 | 56.03 | -28.03 | 49.27 | 0.5569 | -753.0 | -629.2 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 26.35 | 56.00 | -28.05 | 49.59 | 0.5557 | -692.0 | -598.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 20.02 | 57.34 | -26.72 | 59.10 | 0.4943 | -721.0 | -612.1 | |
| 0.96 | -13.00 | 0.58 | -13.00 | 27.14 | 55.68 | -28.38 | 48.68 | 0.5654 | -674.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 27.36 | 55.58 | -28.48 | 48.44 | 0.5682 | -479.0 | -320.6 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 26.79 | 55.73 | -28.32 | 49.15 | 0.5620 | -714.0 | -486.4 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 26.06 | 55.89 | -28.17 | 50.13 | 0.5546 | -561.0 | -382.7 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 26.53 | 55.77 | -28.29 | 49.51 | 0.5597 | -673.0 | -438.8 | |
| 0.00 | 1.75 | 0.00 | 1.05 | 26.81 | 55.58 | -28.48 | 49.25 | 0.5640 | -570.0 | -468.4 | |
| 0.00 | 2.19 | 0.00 | 1.29 | 25.32 | 55.89 | -28.16 | 51.27 | 0.5490 | -635.0 | -500.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 26.49 | 55.59 | -28.47 | 49.73 | 0.5613 | -574.0 | -574.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 26.60 | 55.21 | -28.84 | 49.88 | 0.5663 | -673.0 | -461.1 | |
| 0.00 | 2.01 | 0.00 | 1.22 | 27.31 | 54.40 | -29.66 | 49.50 | 0.5805 | -767.0 | -607.7 | |
| 0.00 | 1.75 | 0.00 | 1.01 | 21.10 | 55.87 | -28.19 | 58.30 | 0.5200 | -639.0 | -493.0 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 28.62 | 53.92 | -30.14 | 47.99 | 0.5955 | -768.0 | -617.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 27.08 | 54.35 | -29.71 | 49.88 | 0.5793 | -696.0 | -490.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 16.84 | 56.29 | -27.77 | 65.89 | 0.4905 | -649.0 | -498.8 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 28.69 | 53.46 | -30.60 | 48.25 | 0.6008 | -593.0 | -426.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 28.14 | 53.55 | -30.50 | 48.96 | 0.5957 | -715.0 | -616.4 | |
| 0.00 | 3.67 | 0.00 | 2.26 | 27.78 | 53.43 | -30.62 | 49.57 | 0.5943 | 75.0 | -56.5 | |
| 1.66 | 3.15 | 1.02 | 1.93 | 27.46 | 53.49 | -30.56 | 49.99 | 0.5913 | 274.9 | -212.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 27.29 | 53.39 | -30.67 | 50.32 | 0.5913 | -581.0 | -408.1 | |
| 0.00 | 2.71 | 0.00 | 1.67 | 27.31 | 53.11 | -30.95 | 50.51 | 0.5944 | -615.0 | -651.4 | |
| 0.00 | 3.32 | 0.00 | 2.05 | 27.56 | 52.95 | -31.11 | 50.26 | 0.5979 | -674.0 | -611.5 | |
| 0.00 | 2.10 | 0.00 | 1.29 | 27.29 | 52.84 | -31.22 | 50.73 | 0.5973 | -634.0 | -549.0 | |
| 0.00 | 2.27 | 0.00 | 1.40 | 26.20 | 52.35 | -31.71 | 52.69 | 0.5952 | -756.0 | -636.2 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 19.85 | 48.71 | -35.35 | 64.67 | 0.6043 | 679.0 | 601.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 20.98 | 48.37 | -35.69 | 63.05 | 0.6133 | 625.0 | 552.9 | |
| 0.00 | 1.40 | 0.00 | 0.89 | 22.21 | 47.45 | -36.61 | 61.61 | 0.6298 | 603.0 | 501.1 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 19.97 | 47.57 | -36.48 | 64.99 | 0.6189 | 604.0 | 454.2 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 25.70 | 45.72 | -38.34 | 57.40 | 0.6658 | 543.0 | 479.0 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 27.64 | 44.76 | -39.30 | 55.21 | 0.6855 | 576.0 | 501.0 | |
| 0.00 | 1.49 | 0.00 | 0.96 | 21.90 | 46.45 | -37.61 | 62.54 | 0.6404 | 761.0 | 605.6 | |
| 0.00 | 1.66 | 0.00 | 1.06 | 20.69 | 46.53 | -37.52 | 64.33 | 0.6345 | 681.0 | 521.8 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 25.70 | 44.78 | -39.28 | 57.85 | 0.6761 | 525.0 | 437.6 | |
| 0.00 | 1.40 | 0.00 | 0.92 | 23.52 | 45.55 | -38.51 | 60.59 | 0.6577 | 769.0 | 625.3 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 30.02 | 42.79 | -41.27 | 53.05 | 0.7169 | 428.0 | 342.7 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 26.72 | 43.97 | -40.09 | 56.85 | 0.6894 | 481.0 | 431.5 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 26.34 | 44.09 | -39.97 | 57.31 | 0.6864 | 644.0 | 538.7 | |
| 0.00 | 2.10 | 0.00 | 1.43 | 26.60 | 43.67 | -40.39 | 57.14 | 0.6920 | 455.0 | 418.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 25.65 | 43.98 | -40.08 | 58.30 | 0.6845 | 417.0 | 449.7 | |
| 0.96 | 2.62 | 0.65 | 1.79 | 25.96 | 43.72 | -40.34 | 58.00 | 0.6886 | 638.0 | 566.7 | |
| 0.00 | 1.14 | 0.00 | 0.78 | 26.21 | 43.17 | -40.88 | 57.89 | 0.6956 | 463.0 | 421.2 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 28.38 | 41.54 | -42.52 | 55.74 | 0.7218 | 476.0 | 406.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
