SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167.32 | 776.52 | 107.88 | 500.87 | -12.30 | 48.52 | -35.54 | 117.53 | 0.6417 | -20.1 | -37.0 | |
|
previous
or next observation for the same group /

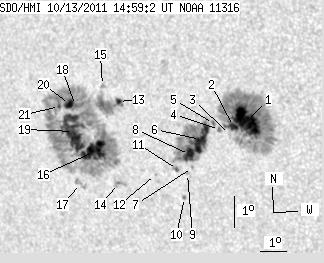

back to the solar disc SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.24 | 232.70 | 22.83 | 142.57 | -11.68 | 52.41 | -31.65 | 119.31 | 0.5915 | 1107.7 | 452.8 | |
| 4.81 | -1.00 | 2.97 | -1.00 | -11.87 | 51.91 | -32.14 | 119.21 | 0.5988 | 696.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.97 | -12.13 | 51.73 | -32.32 | 119.46 | 0.6027 | 27.0 | 14.1 | |
| 1.40 | 2.19 | 0.87 | 1.36 | -11.99 | 51.39 | -32.67 | 119.00 | 0.6059 | 542.4 | 470.6 | |
| 1.14 | 98.43 | 0.71 | 62.09 | -11.82 | 51.19 | -32.86 | 118.60 | 0.6072 | 644.2 | 175.9 | |
| 24.74 | -5.00 | 15.54 | -5.00 | -12.35 | 50.64 | -33.41 | 118.98 | 0.6172 | 882.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -13.26 | 50.21 | -33.85 | 119.96 | 0.6281 | 632.0 | 451.3 | |
| 10.14 | -5.00 | 6.43 | -5.00 | -12.85 | 50.16 | -33.90 | 119.35 | 0.6261 | 741.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -13.46 | 49.99 | -34.07 | 120.09 | 0.6319 | 685.0 | 460.8 | |
| 0.00 | 1.92 | 0.00 | 1.24 | -14.24 | 49.75 | -34.31 | 121.00 | 0.6397 | 682.0 | 534.5 | |
| 0.96 | 2.54 | 0.62 | 1.62 | -13.36 | 49.64 | -34.42 | 119.69 | 0.6354 | 481.1 | 87.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -13.57 | 48.77 | -35.28 | 119.39 | 0.6467 | 516.0 | 414.5 | |
| 2.62 | 420.91 | 1.70 | 280.29 | -11.34 | 47.73 | -36.33 | 115.59 | 0.6463 | 715.7 | -327.5 | |
| 0.00 | 5.33 | 0.00 | 3.53 | -13.95 | 47.29 | -36.76 | 118.92 | 0.6660 | -954.0 | -676.3 | |
| 0.00 | 1.84 | 0.00 | 1.19 | -10.88 | 47.19 | -36.87 | 114.60 | 0.6503 | 651.0 | 490.4 | |
| 30.95 | -13.00 | 20.57 | -13.00 | -12.99 | 46.54 | -37.52 | 117.14 | 0.6692 | -1003.4 | 999999 | |
| 0.00 | 5.24 | 0.00 | 3.55 | -14.05 | 45.79 | -38.26 | 118.11 | 0.6835 | -611.0 | -508.8 | |
| 0.26 | -13.00 | 0.17 | -13.00 | -11.58 | 46.04 | -38.01 | 114.91 | 0.6675 | -1053.0 | 999999 | |
| 45.72 | -13.00 | 30.58 | -13.00 | -12.41 | 45.83 | -38.23 | 115.92 | 0.6743 | -865.4 | 999999 | |
| 5.77 | -13.00 | 3.84 | -13.00 | -11.56 | 45.81 | -38.25 | 114.76 | 0.6702 | -886.8 | 999999 | |
| 1.57 | -13.00 | 1.05 | -13.00 | -11.65 | 45.41 | -38.65 | 114.65 | 0.6754 | -505.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
