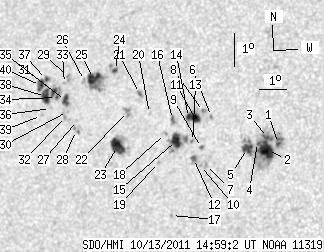

SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.09 | 265.03 | 62.06 | 159.92 | 10.15 | 49.21 | -34.85 | 80.83 | 0.5711 | 96.5 | -23.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 82.69 | 1.05 | 47.74 | 9.80 | 53.59 | -30.47 | 80.84 | 0.5082 | -1075.9 | -545.4 | |
| 14.95 | -1.00 | 8.62 | -1.00 | 9.57 | 53.22 | -30.83 | 81.34 | 0.5133 | -1086.0 | 999999 | |
| 1.40 | -1.00 | 0.81 | -1.00 | 9.96 | 53.18 | -30.87 | 80.59 | 0.5144 | -857.7 | 999999 | |
| 0.61 | -1.00 | 0.35 | -1.00 | 9.79 | 52.85 | -31.21 | 80.97 | 0.5191 | -552.6 | 999999 | |
| 5.77 | -1.00 | 3.35 | -1.00 | 9.60 | 52.51 | -31.55 | 81.40 | 0.5238 | -787.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 10.48 | 51.12 | -32.94 | 79.96 | 0.5451 | -524.0 | -396.5 | |
| 0.00 | 2.71 | 0.00 | 1.60 | 9.04 | 51.10 | -32.96 | 82.61 | 0.5439 | -753.0 | -579.0 | |
| 0.00 | 2.71 | 0.00 | 1.60 | 10.61 | 50.81 | -33.25 | 79.76 | 0.5497 | -648.0 | -301.3 | |
| 0.52 | 1.49 | 0.31 | 0.88 | 9.53 | 50.86 | -33.19 | 81.73 | 0.5477 | -708.2 | -540.2 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 8.99 | 50.89 | -33.17 | 82.71 | 0.5470 | -867.0 | -655.6 | |
| 7.26 | 14.42 | 4.31 | 8.57 | 10.39 | 50.55 | -33.51 | 80.21 | 0.5532 | 623.7 | 156.0 | |
| 1.57 | 4.28 | 0.93 | 2.54 | 9.19 | 50.61 | -33.45 | 82.38 | 0.5511 | -767.6 | -655.3 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 9.70 | 50.52 | -33.54 | 81.47 | 0.5529 | 704.0 | 608.8 | |
| 2.19 | -11.00 | 1.30 | -11.00 | 10.40 | 50.29 | -33.77 | 80.23 | 0.5569 | -452.2 | 999999 | |
| 9.88 | 22.99 | 5.90 | 13.73 | 9.69 | 49.93 | -34.12 | 81.55 | 0.5612 | -841.9 | -183.8 | |
| 2.27 | 4.20 | 1.36 | 2.51 | 10.31 | 49.71 | -34.35 | 80.47 | 0.5650 | -701.0 | -611.7 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 7.44 | 49.98 | -34.08 | 85.57 | 0.5594 | -480.0 | -404.2 | |
| 0.00 | 1.92 | 0.00 | 1.15 | 9.88 | 49.51 | -34.55 | 81.27 | 0.5675 | -606.0 | -399.5 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 9.00 | 49.35 | -34.71 | 82.84 | 0.5690 | 727.0 | 579.1 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 10.44 | 48.84 | -35.22 | 80.37 | 0.5774 | -456.0 | -348.0 | |
| 1.22 | 2.80 | 0.75 | 1.70 | 11.02 | 48.39 | -35.67 | 79.44 | 0.5844 | -621.6 | -527.4 | |
| 0.00 | 4.81 | 0.00 | 2.94 | 10.45 | 48.02 | -36.04 | 80.45 | 0.5890 | -657.0 | -527.2 | |
| 14.07 | 22.82 | 8.63 | 13.98 | 9.38 | 47.78 | -36.28 | 82.29 | 0.5914 | 835.5 | 482.8 | |
| 2.10 | 4.28 | 1.30 | 2.65 | 11.65 | 47.39 | -36.67 | 78.53 | 0.5991 | 961.1 | 788.6 | |
| 9.00 | 26.66 | 5.62 | 16.59 | 11.36 | 46.59 | -37.47 | 79.13 | 0.6096 | 927.6 | 770.4 | |
| 0.00 | 2.62 | 0.00 | 1.64 | 11.28 | 46.25 | -37.80 | 79.31 | 0.6140 | 583.0 | 460.3 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 10.06 | 46.16 | -37.90 | 81.29 | 0.6141 | 413.0 | 372.6 | |
| 0.00 | 2.80 | 0.00 | 1.75 | 9.76 | 46.16 | -37.89 | 81.78 | 0.6138 | 595.0 | 478.4 | |
| 0.00 | 2.71 | 0.00 | 1.71 | 11.33 | 45.63 | -38.43 | 79.31 | 0.6225 | 658.0 | 609.7 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 10.31 | 45.74 | -38.32 | 80.93 | 0.6200 | 855.0 | 769.2 | |
| 5.59 | 6.73 | 3.53 | 4.25 | 10.63 | 45.62 | -38.44 | 80.42 | 0.6220 | 872.1 | 726.5 | |
| 0.00 | 5.07 | 0.00 | 3.20 | 10.15 | 45.69 | -38.37 | 81.19 | 0.6206 | 585.0 | 558.7 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 11.14 | 45.50 | -38.56 | 79.63 | 0.6240 | 807.0 | 662.1 | |
| 1.22 | 34.00 | 0.78 | 21.68 | 10.70 | 45.25 | -38.80 | 80.36 | 0.6269 | 858.1 | 625.1 | |
| 3.67 | -34.00 | 2.33 | -34.00 | 10.87 | 45.11 | -38.95 | 80.10 | 0.6290 | 847.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 10.36 | 45.07 | -38.99 | 80.92 | 0.6290 | 581.0 | 491.1 | |
| 1.84 | -34.00 | 1.17 | -34.00 | 11.21 | 44.78 | -39.28 | 79.59 | 0.6337 | 626.2 | 999999 | |
| 9.00 | -34.00 | 5.74 | -34.00 | 10.70 | 44.82 | -39.24 | 80.40 | 0.6326 | 747.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 10.12 | 44.75 | -39.31 | 81.32 | 0.6331 | 656.0 | 524.5 | |
| 6.12 | -34.00 | 3.92 | -34.00 | 11.02 | 44.57 | -39.48 | 79.92 | 0.6362 | 490.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
