SDO HMI 2011-10-13 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.51 | 219.13 | 25.75 | 143.21 | -14.70 | 118.90 | 35.39 | 239.06 | 0.6549 | 285.9 | 241.0 | |
|
previous
or next observation for the same group /

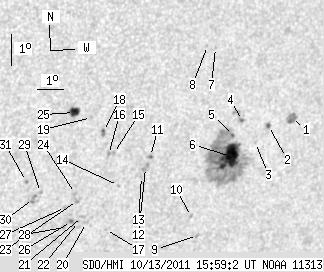

back to the solar disc SDO HMI 2011-10-13 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.87 | 0.00 | 5.33 | -13.69 | 122.03 | 38.52 | 242.52 | 0.6844 | 717.0 | 565.1 | |
| 1.75 | 2.10 | 1.17 | 1.41 | -13.85 | 121.16 | 37.65 | 241.77 | 0.6754 | 633.8 | 671.8 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -14.36 | 120.75 | 37.24 | 240.83 | 0.6737 | 626.0 | 546.2 | |
| 0.87 | 6.82 | 0.58 | 4.48 | -13.62 | 120.11 | 36.60 | 241.41 | 0.6622 | 721.2 | 655.2 | |
| 0.96 | 152.00 | 0.63 | 100.50 | -14.08 | 119.84 | 36.34 | 240.62 | 0.6619 | 836.9 | 395.5 | |
| 27.45 | -5.00 | 18.17 | -5.00 | -14.75 | 119.86 | 36.35 | 239.73 | 0.6660 | 1006.0 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -11.24 | 118.70 | 35.19 | 243.85 | 0.6320 | 531.0 | 545.2 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -11.16 | 118.39 | 34.88 | 243.76 | 0.6278 | 710.0 | 577.8 | |
| 0.00 | 1.49 | 0.00 | 0.99 | -17.24 | 119.11 | 35.60 | 235.94 | 0.6734 | -673.0 | -516.9 | |
| 0.00 | 1.40 | 0.00 | 0.93 | -16.60 | 118.74 | 35.23 | 236.50 | 0.6653 | 746.0 | 561.8 | |
| 0.00 | 2.01 | 0.00 | 1.28 | -14.56 | 116.80 | 33.30 | 237.81 | 0.6301 | -662.0 | -653.4 | |
| 0.00 | 3.41 | 0.00 | 2.17 | -14.90 | 116.68 | 33.17 | 237.24 | 0.6310 | -555.0 | -573.3 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -15.18 | 116.58 | 33.07 | 236.78 | 0.6318 | -565.0 | -470.8 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -15.42 | 115.77 | 32.27 | 235.81 | 0.6244 | -599.0 | -459.4 | |
| 0.00 | 1.66 | 0.00 | 1.04 | -14.38 | 115.41 | 31.91 | 236.97 | 0.6130 | -581.0 | -511.9 | |
| 0.00 | 2.10 | 0.00 | 1.31 | -14.40 | 115.24 | 31.73 | 236.79 | 0.6111 | -615.0 | -562.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -16.82 | 115.55 | 32.04 | 233.73 | 0.6322 | -678.0 | -552.3 | |
| 1.14 | 2.62 | 0.70 | 1.62 | -13.66 | 114.94 | 31.43 | 237.61 | 0.6023 | 727.2 | 733.3 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -13.19 | 114.44 | 30.93 | 237.89 | 0.5931 | 224.0 | 174.8 | |
| 0.00 | 1.57 | 0.00 | 0.99 | -16.56 | 114.80 | 31.29 | 233.46 | 0.6220 | -583.0 | -438.7 | |
| 0.00 | 1.75 | 0.00 | 1.10 | -16.35 | 114.62 | 31.11 | 233.58 | 0.6184 | -686.0 | -571.3 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -16.51 | 114.50 | 30.99 | 233.27 | 0.6183 | -685.0 | -513.8 | |
| 0.00 | 3.50 | 0.00 | 2.18 | -15.82 | 114.34 | 30.84 | 234.07 | 0.6114 | -683.0 | -675.8 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -15.59 | 114.23 | 30.73 | 234.29 | 0.6084 | -732.0 | -663.4 | |
| 5.94 | 8.04 | 3.62 | 4.90 | -12.99 | 113.80 | 30.30 | 237.64 | 0.5842 | 918.4 | 694.9 | |
| 1.40 | 3.50 | 0.88 | 2.19 | -16.49 | 114.24 | 30.74 | 233.06 | 0.6154 | -744.4 | -608.4 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -16.02 | 113.94 | 30.44 | 233.44 | 0.6085 | -798.0 | -629.8 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -16.67 | 113.98 | 30.48 | 232.59 | 0.6139 | -872.0 | -657.2 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -15.49 | 112.96 | 29.45 | 233.29 | 0.5933 | -721.0 | -595.5 | |
| 0.00 | 3.93 | 0.00 | 2.41 | -15.67 | 112.74 | 29.23 | 232.84 | 0.5922 | -916.0 | -752.3 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -15.11 | 112.40 | 28.90 | 233.32 | 0.5839 | -871.0 | -824.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
