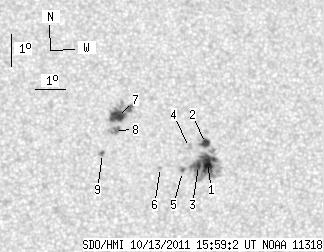

SDO HMI 2011-10-13 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.05 | 108.38 | 19.49 | 57.04 | 19.92 | 97.82 | 14.31 | 316.45 | 0.3390 | -200.1 | -189.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.56 | 61.01 | 8.20 | 32.15 | 19.47 | 98.77 | 15.26 | 313.62 | 0.3443 | -1040.0 | -576.5 | |
| 5.07 | 8.04 | 2.68 | 4.25 | 20.06 | 98.76 | 15.25 | 314.92 | 0.3505 | -956.0 | -723.3 | |
| 3.23 | -1.00 | 1.70 | -1.00 | 19.39 | 98.46 | 14.96 | 313.98 | 0.3398 | -1163.8 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.47 | 19.95 | 98.22 | 14.72 | 315.66 | 0.3431 | -977.0 | -764.1 | |
| 0.96 | 2.19 | 0.50 | 1.15 | 19.22 | 97.92 | 14.42 | 314.59 | 0.3316 | -866.7 | -842.1 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 19.36 | 97.22 | 13.71 | 316.28 | 0.3250 | 758.0 | 463.5 | |
| 11.71 | 24.47 | 6.14 | 12.85 | 20.96 | 95.95 | 12.44 | 322.32 | 0.3306 | 1086.3 | 684.2 | |
| 0.00 | 7.34 | 0.00 | 3.84 | 20.53 | 95.82 | 12.31 | 321.75 | 0.3239 | 995.0 | 859.3 | |
| 0.52 | 1.22 | 0.27 | 0.64 | 19.83 | 95.37 | 11.86 | 321.28 | 0.3105 | 1067.0 | 850.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
