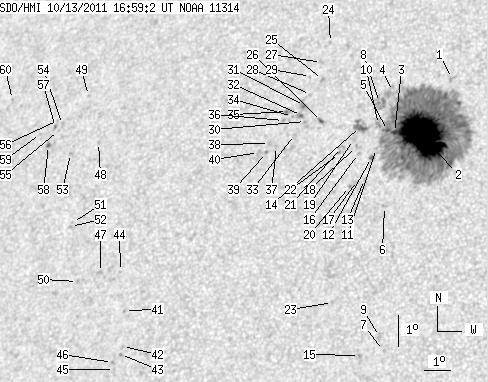

SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.54 | 724.19 | 68.60 | 424.13 | 26.94 | 57.29 | -25.67 | 46.36 | 0.5351 | -816.4 | -373.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.80 | 0.00 | 1.64 | 28.91 | 58.80 | -24.15 | 42.03 | 0.5371 | 472.0 | 396.3 | |
| 109.25 | 606.01 | 63.55 | 352.48 | 27.04 | 58.14 | -24.82 | 45.48 | 0.5264 | -1417.8 | -412.7 | |
| 0.26 | -2.00 | 0.15 | -2.00 | 27.09 | 57.09 | -25.87 | 46.46 | 0.5380 | -735.0 | 999999 | |
| 0.00 | 10.49 | 0.00 | 6.23 | 28.40 | 56.67 | -26.28 | 44.92 | 0.5538 | 105.0 | 60.5 | |
| 1.57 | -2.00 | 0.93 | -2.00 | 27.14 | 56.81 | -26.14 | 46.64 | 0.5414 | -378.9 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 24.73 | 57.27 | -25.68 | 49.98 | 0.5161 | -761.0 | -548.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 20.26 | 58.11 | -24.84 | 57.06 | 0.4716 | -886.0 | -722.0 | |
| 0.00 | 12.24 | 0.00 | 7.27 | 28.02 | 56.28 | -26.68 | 45.84 | 0.5546 | -189.0 | -253.4 | |
| 0.00 | 3.06 | 0.00 | 1.72 | 20.68 | 57.90 | -25.06 | 56.46 | 0.4773 | -497.0 | -506.2 | |
| 0.00 | 3.85 | 0.00 | 2.27 | 27.32 | 56.43 | -26.53 | 46.74 | 0.5470 | -717.0 | -582.2 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 26.55 | 56.55 | -26.41 | 47.79 | 0.5392 | -484.0 | -372.9 | |
| 1.75 | 2.27 | 1.03 | 1.33 | 26.26 | 56.43 | -26.52 | 48.35 | 0.5380 | -732.7 | -696.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 25.55 | 56.35 | -26.61 | 49.54 | 0.5332 | -775.0 | -660.6 | |
| 0.00 | 12.41 | 0.00 | 7.37 | 27.23 | 55.77 | -27.18 | 47.49 | 0.5532 | -750.0 | -626.9 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 20.07 | 57.30 | -25.65 | 58.14 | 0.4808 | -905.0 | -683.4 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 26.36 | 55.92 | -27.03 | 48.66 | 0.5445 | -694.0 | -547.1 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 25.51 | 56.10 | -26.86 | 49.84 | 0.5357 | -409.0 | -484.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 26.58 | 55.79 | -27.17 | 48.45 | 0.5477 | -693.0 | -637.5 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 26.80 | 55.62 | -27.33 | 48.27 | 0.5514 | -652.0 | -493.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 25.30 | 55.85 | -27.11 | 50.38 | 0.5369 | -725.0 | -643.4 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 26.52 | 55.24 | -27.72 | 49.03 | 0.5533 | -459.0 | -560.1 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 26.33 | 55.21 | -27.74 | 49.35 | 0.5520 | -579.0 | -583.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 21.66 | 56.04 | -26.92 | 56.32 | 0.5077 | -645.0 | -506.3 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 29.88 | 53.84 | -29.12 | 45.39 | 0.5949 | -535.0 | -425.0 | |
| 0.00 | 2.10 | 0.00 | 1.28 | 28.66 | 53.90 | -29.05 | 47.03 | 0.5845 | -748.0 | -609.9 | |
| 1.31 | 2.53 | 0.79 | 1.53 | 27.32 | 54.26 | -28.69 | 48.68 | 0.5702 | -758.5 | -483.1 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 29.21 | 53.69 | -29.26 | 46.43 | 0.5910 | -586.0 | -468.4 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 28.16 | 53.59 | -29.37 | 48.02 | 0.5839 | -756.0 | -626.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 28.74 | 53.41 | -29.54 | 47.33 | 0.5902 | -488.0 | -414.7 | |
| 0.00 | 1.40 | 0.00 | 0.85 | 27.29 | 53.65 | -29.30 | 49.23 | 0.5765 | -674.0 | -472.4 | |
| 0.87 | 4.46 | 0.53 | 2.71 | 27.80 | 53.46 | -29.49 | 48.64 | 0.5824 | 380.0 | -131.6 | |
| 1.22 | 3.41 | 0.74 | 2.07 | 27.47 | 53.44 | -29.51 | 49.13 | 0.5801 | 261.4 | 10.2 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 26.85 | 53.35 | -29.60 | 50.12 | 0.5765 | -687.0 | -507.7 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 27.42 | 53.11 | -29.85 | 49.48 | 0.5834 | -822.0 | -677.0 | |
| 0.00 | 3.15 | 0.00 | 1.92 | 27.57 | 52.87 | -30.09 | 49.45 | 0.5870 | -696.0 | -584.1 | |
| 0.00 | 1.57 | 0.00 | 0.96 | 27.28 | 52.80 | -30.15 | 49.93 | 0.5856 | -654.0 | -534.3 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 26.44 | 52.78 | -30.18 | 51.20 | 0.5798 | -596.0 | -558.3 | |
| 0.00 | 1.84 | 0.00 | 1.12 | 26.52 | 52.48 | -30.47 | 51.30 | 0.5836 | -704.0 | -553.9 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 26.23 | 52.45 | -30.50 | 51.76 | 0.5819 | -699.0 | -600.3 | |
| 0.00 | 2.53 | 0.00 | 1.54 | 26.21 | 52.15 | -30.81 | 52.01 | 0.5852 | -609.0 | -567.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 21.02 | 48.40 | -34.56 | 62.44 | 0.5995 | 527.0 | 428.2 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 19.91 | 48.61 | -34.35 | 64.10 | 0.5919 | 637.0 | 448.5 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 19.66 | 48.59 | -34.36 | 64.51 | 0.5911 | 913.0 | 722.5 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 22.21 | 47.91 | -35.04 | 60.83 | 0.6111 | 608.0 | 484.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 19.19 | 48.47 | -34.48 | 65.33 | 0.5906 | 631.0 | 557.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 19.40 | 48.35 | -34.61 | 65.05 | 0.5931 | 892.0 | 745.5 | |
| 0.00 | 2.18 | 0.00 | 1.38 | 22.13 | 47.14 | -35.81 | 61.34 | 0.6200 | 510.0 | 419.1 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 26.18 | 45.71 | -37.25 | 56.16 | 0.6562 | 654.0 | 465.9 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 27.64 | 44.71 | -38.25 | 54.67 | 0.6745 | 503.0 | 396.0 | |
| 0.00 | 1.49 | 0.00 | 0.94 | 21.80 | 46.32 | -36.64 | 62.25 | 0.6284 | 652.0 | 513.9 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 23.61 | 45.54 | -37.42 | 59.93 | 0.6456 | 598.0 | 541.4 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 23.48 | 45.50 | -37.45 | 60.14 | 0.6455 | 832.0 | 750.4 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 25.76 | 44.69 | -38.27 | 57.28 | 0.6653 | 757.0 | 619.6 | |
| 0.00 | 1.75 | 0.00 | 1.17 | 26.65 | 43.99 | -38.96 | 56.39 | 0.6772 | 571.0 | 488.9 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 26.46 | 43.90 | -39.06 | 56.71 | 0.6772 | 695.0 | 528.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 26.77 | 43.73 | -39.23 | 56.36 | 0.6805 | 405.0 | 321.4 | |
| 0.00 | 2.01 | 0.00 | 1.35 | 26.54 | 43.73 | -39.22 | 56.67 | 0.6794 | 460.0 | 414.0 | |
| 1.31 | 1.40 | 0.88 | 0.94 | 25.96 | 43.67 | -39.29 | 57.51 | 0.6773 | 665.5 | 698.0 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 26.31 | 43.18 | -39.78 | 57.25 | 0.6842 | 556.0 | 487.6 | |
| 0.00 | 1.14 | 0.00 | 0.79 | 27.31 | 41.51 | -41.45 | 56.68 | 0.7062 | 493.0 | 430.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
