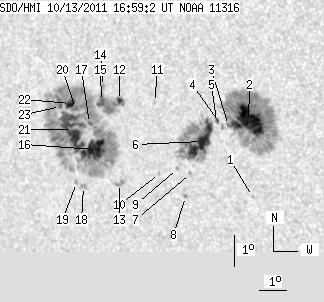

SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.97 | 799.15 | 109.87 | 508.35 | -12.24 | 48.53 | -34.42 | 118.21 | 0.6281 | 27.8 | -35.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | -14.09 | 52.19 | -30.76 | 123.57 | 0.5976 | 625.0 | 503.8 | |
| 46.06 | 235.62 | 27.91 | 142.67 | -11.72 | 52.38 | -30.58 | 120.21 | 0.5786 | 1099.9 | 460.8 | |
| 0.26 | -2.00 | 0.16 | -2.00 | -11.88 | 51.64 | -31.31 | 119.87 | 0.5887 | 566.7 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.29 | -11.93 | 51.42 | -31.53 | 119.77 | 0.5917 | 714.0 | 545.7 | |
| 0.00 | 2.18 | 0.00 | 1.34 | -11.75 | 51.23 | -31.73 | 119.35 | 0.5929 | 786.0 | 653.2 | |
| 36.01 | 103.91 | 22.36 | 64.68 | -12.45 | 50.59 | -32.36 | 119.89 | 0.6052 | 885.7 | 157.0 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -13.49 | 50.04 | -32.92 | 120.97 | 0.6186 | 610.0 | 452.4 | |
| 0.00 | 1.92 | 0.00 | 1.22 | -14.23 | 49.73 | -33.22 | 121.80 | 0.6271 | 661.0 | 483.5 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -13.36 | 49.58 | -33.38 | 120.45 | 0.6232 | 569.0 | 454.1 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -13.56 | 48.88 | -34.08 | 120.22 | 0.6326 | 356.0 | 282.3 | |
| 0.00 | 1.75 | 0.00 | 1.10 | -11.32 | 49.03 | -33.93 | 117.11 | 0.6171 | 608.0 | 403.0 | |
| 2.36 | 433.31 | 1.51 | 284.13 | -11.33 | 47.73 | -35.23 | 116.27 | 0.6330 | 801.1 | -328.5 | |
| 0.00 | 4.98 | 0.00 | 3.25 | -13.97 | 47.30 | -35.65 | 119.69 | 0.6534 | -712.0 | -706.3 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -10.93 | 47.19 | -35.77 | 115.34 | 0.6373 | 615.0 | 458.6 | |
| 4.72 | -12.00 | 3.04 | -12.00 | -11.41 | 47.04 | -35.91 | 115.94 | 0.6417 | -505.6 | 999999 | |
| 29.80 | -12.00 | 19.52 | -12.00 | -12.95 | 46.53 | -36.42 | 117.77 | 0.6563 | -1027.4 | 999999 | |
| 1.84 | -12.00 | 1.20 | -12.00 | -12.13 | 46.47 | -36.48 | 116.61 | 0.6524 | -1059.0 | 999999 | |
| 0.00 | 4.28 | 0.00 | 2.85 | -14.16 | 45.89 | -37.07 | 119.01 | 0.6706 | -697.0 | -560.0 | |
| 0.00 | 1.75 | 0.00 | 1.17 | -14.05 | 45.64 | -37.32 | 118.70 | 0.6728 | -502.0 | -443.1 | |
| 1.84 | -12.00 | 1.20 | -12.00 | -11.69 | 46.01 | -36.95 | 115.70 | 0.6555 | -993.8 | 999999 | |
| 42.21 | -12.00 | 27.81 | -12.00 | -12.37 | 45.78 | -37.17 | 116.50 | 0.6618 | -863.4 | 999999 | |
| 6.12 | -12.00 | 4.01 | -12.00 | -11.55 | 45.84 | -37.12 | 115.40 | 0.6568 | -970.6 | 999999 | |
| 1.75 | -12.00 | 1.15 | -12.00 | -11.67 | 45.44 | -37.52 | 115.33 | 0.6622 | -547.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
