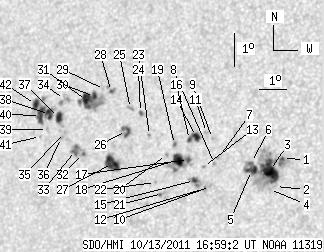

SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.59 | 280.01 | 69.82 | 166.84 | 10.17 | 49.23 | -33.73 | 80.65 | 0.5552 | 39.9 | 3.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 9.61 | 1.04 | 5.45 | 9.99 | 53.74 | -29.22 | 80.25 | 0.4898 | -860.8 | -720.4 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 9.14 | 53.57 | -29.38 | 82.01 | 0.4912 | -197.0 | -245.6 | |
| 22.46 | 75.86 | 12.79 | 43.30 | 9.60 | 53.32 | -29.64 | 81.10 | 0.4955 | -1050.1 | -439.1 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 9.04 | 53.37 | -29.58 | 82.24 | 0.4941 | -220.0 | -231.1 | |
| 5.77 | -3.00 | 3.31 | -3.00 | 9.57 | 52.69 | -30.26 | 81.26 | 0.5048 | -784.0 | 999999 | |
| 1.22 | -3.00 | 0.70 | -3.00 | 9.81 | 52.67 | -30.29 | 80.79 | 0.5055 | -433.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 9.90 | 51.49 | -31.47 | 80.81 | 0.5230 | -774.0 | -596.7 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 9.71 | 51.37 | -31.59 | 81.19 | 0.5246 | -626.0 | -557.1 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 10.46 | 51.21 | -31.74 | 79.80 | 0.5278 | -585.0 | -416.5 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 9.02 | 51.30 | -31.66 | 82.52 | 0.5249 | -785.0 | -656.6 | |
| 0.00 | 1.75 | 0.00 | 1.02 | 10.62 | 50.98 | -31.98 | 79.53 | 0.5314 | -363.0 | -253.6 | |
| 0.00 | 2.36 | 0.00 | 1.37 | 8.95 | 51.09 | -31.87 | 82.68 | 0.5279 | -811.0 | -703.7 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 9.60 | 50.99 | -31.97 | 81.45 | 0.5300 | -745.0 | -567.3 | |
| 4.02 | 7.78 | 2.36 | 4.56 | 10.48 | 50.64 | -32.32 | 79.85 | 0.5362 | 727.0 | 72.9 | |
| 2.71 | 8.48 | 1.58 | 4.96 | 9.17 | 50.71 | -32.25 | 82.30 | 0.5336 | -781.6 | -653.4 | |
| 1.92 | -14.00 | 1.13 | -14.00 | 10.38 | 50.40 | -32.56 | 80.08 | 0.5395 | -552.1 | 999999 | |
| 1.57 | 25.26 | 0.92 | 14.87 | 9.78 | 50.43 | -32.53 | 81.19 | 0.5383 | 587.7 | -150.2 | |
| 9.09 | -17.00 | 5.36 | -17.00 | 9.76 | 50.07 | -32.89 | 81.27 | 0.5435 | -954.2 | 999999 | |
| 1.57 | 3.32 | 0.93 | 1.96 | 10.20 | 49.87 | -33.08 | 80.49 | 0.5468 | -731.1 | -620.0 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 9.89 | 49.62 | -33.34 | 81.10 | 0.5501 | -659.0 | -445.2 | |
| 0.00 | 2.53 | 0.00 | 1.50 | 8.71 | 49.60 | -33.36 | 83.24 | 0.5494 | 513.0 | 480.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 9.03 | 49.31 | -33.64 | 82.70 | 0.5538 | 651.0 | 509.7 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 10.42 | 48.93 | -34.02 | 80.24 | 0.5605 | -640.0 | -461.5 | |
| 1.22 | 2.01 | 0.73 | 1.21 | 11.09 | 48.51 | -34.44 | 79.12 | 0.5673 | -687.5 | -752.7 | |
| 0.00 | 2.45 | 0.00 | 1.48 | 11.18 | 48.13 | -34.82 | 79.01 | 0.5729 | -656.0 | -502.2 | |
| 5.86 | 9.00 | 3.53 | 5.43 | 10.52 | 48.07 | -34.88 | 80.18 | 0.5729 | -592.0 | -2.6 | |
| 13.55 | 17.04 | 8.20 | 10.32 | 9.50 | 47.68 | -35.28 | 82.00 | 0.5774 | 903.4 | 547.0 | |
| 0.52 | 3.58 | 0.32 | 2.18 | 11.65 | 47.35 | -35.60 | 78.34 | 0.5844 | 1032.8 | 842.5 | |
| 0.00 | 0.44 | 0.00 | 0.27 | 11.70 | 47.08 | -35.87 | 78.31 | 0.5882 | 308.0 | 387.2 | |
| 2.80 | 30.06 | 1.72 | 18.47 | 11.46 | 46.74 | -36.22 | 78.76 | 0.5926 | 1033.5 | 777.8 | |
| 9.44 | -30.00 | 5.81 | -30.00 | 11.33 | 46.46 | -36.50 | 79.04 | 0.5963 | 924.8 | 999999 | |
| 1.14 | 11.45 | 0.70 | 7.05 | 9.74 | 46.56 | -36.39 | 81.70 | 0.5932 | 747.6 | 616.7 | |
| 5.51 | -32.00 | 3.39 | -32.00 | 9.81 | 46.25 | -36.71 | 81.61 | 0.5976 | 740.4 | 999999 | |
| 0.00 | 5.59 | 0.00 | 3.48 | 11.30 | 45.62 | -37.34 | 79.20 | 0.6077 | 828.0 | 660.8 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 10.32 | 45.76 | -37.19 | 80.81 | 0.6047 | 881.0 | 671.6 | |
| 0.00 | 1.66 | 0.00 | 1.03 | 10.16 | 45.67 | -37.29 | 81.08 | 0.6059 | 612.0 | 548.3 | |
| 5.24 | 8.74 | 3.27 | 5.44 | 10.75 | 45.47 | -37.49 | 80.12 | 0.6091 | 926.4 | 661.2 | |
| 5.33 | 35.13 | 3.34 | 22.09 | 10.82 | 45.11 | -37.84 | 80.06 | 0.6140 | 928.7 | 517.2 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 10.37 | 45.10 | -37.85 | 80.80 | 0.6138 | 594.0 | 492.3 | |
| 8.83 | -38.00 | 5.55 | -38.00 | 10.77 | 44.77 | -38.18 | 80.18 | 0.6186 | 737.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 10.14 | 44.86 | -38.09 | 81.19 | 0.6168 | 521.0 | 445.4 | |
| 4.98 | -38.00 | 3.14 | -38.00 | 11.08 | 44.53 | -38.43 | 79.70 | 0.6222 | 577.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
