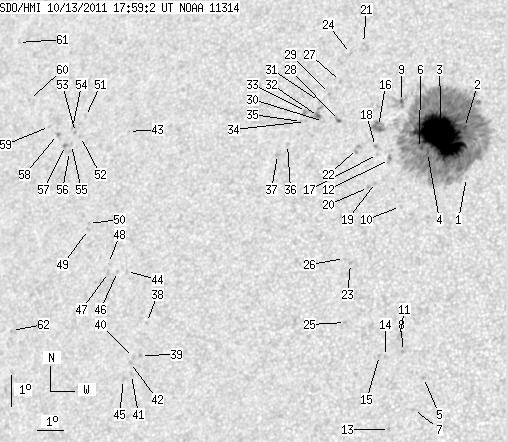

SDO HMI 2011-10-13 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.58 | 737.49 | 72.86 | 430.35 | 26.81 | 57.22 | -25.19 | 46.04 | 0.5291 | -827.0 | -352.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.70 | 25.76 | 59.33 | -23.07 | 45.59 | 0.4960 | -254.0 | -226.5 | |
| 1.75 | 625.99 | 1.01 | 362.74 | 27.35 | 58.92 | -23.49 | 43.59 | 0.5154 | -1141.1 | -397.1 | |
| 118.15 | -2.00 | 68.47 | -2.00 | 27.06 | 58.14 | -24.27 | 44.87 | 0.5208 | -1435.8 | 999999 | |
| 0.87 | -2.00 | 0.51 | -2.00 | 26.50 | 57.75 | -24.65 | 46.14 | 0.5198 | -987.3 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 19.48 | 58.94 | -23.46 | 57.26 | 0.4480 | -791.0 | -504.8 | |
| 0.70 | -2.00 | 0.41 | -2.00 | 26.61 | 57.43 | -24.97 | 46.29 | 0.5243 | -958.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 18.49 | 58.75 | -23.65 | 59.45 | 0.4437 | -862.0 | -627.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 20.25 | 58.09 | -24.31 | 56.58 | 0.4647 | -831.0 | -669.9 | |
| 1.14 | 13.20 | 0.67 | 7.81 | 28.09 | 56.39 | -26.01 | 45.11 | 0.5482 | -636.8 | -239.1 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 24.75 | 57.15 | -25.25 | 49.52 | 0.5113 | -675.0 | -522.8 | |
| 0.00 | 2.97 | 0.00 | 1.67 | 20.71 | 57.91 | -24.50 | 55.89 | 0.4704 | -571.0 | -589.6 | |
| 0.00 | 3.41 | 0.00 | 1.99 | 26.22 | 56.41 | -25.99 | 47.91 | 0.5319 | -838.0 | -695.1 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 17.84 | 58.02 | -24.39 | 61.42 | 0.4495 | -581.0 | -521.9 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 20.07 | 57.52 | -24.88 | 57.45 | 0.4707 | -708.0 | -559.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 20.09 | 57.31 | -25.09 | 57.60 | 0.4737 | -757.0 | -622.3 | |
| 0.00 | 11.01 | 0.00 | 6.51 | 27.25 | 55.74 | -26.66 | 46.97 | 0.5478 | -750.0 | -656.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 26.36 | 55.93 | -26.47 | 48.15 | 0.5383 | -696.0 | -538.3 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 26.61 | 55.80 | -26.61 | 47.89 | 0.5419 | -835.0 | -729.2 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 25.47 | 56.07 | -26.33 | 49.41 | 0.5294 | -723.0 | -623.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 25.30 | 55.85 | -26.55 | 49.88 | 0.5305 | -761.0 | -605.1 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 29.90 | 54.42 | -27.98 | 44.38 | 0.5838 | -564.0 | -423.3 | |
| 0.00 | 4.11 | 0.00 | 2.43 | 26.51 | 55.14 | -27.26 | 48.64 | 0.5482 | -387.0 | -618.0 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 22.89 | 55.74 | -26.67 | 53.96 | 0.5134 | -733.0 | -615.3 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 29.55 | 54.02 | -28.38 | 45.21 | 0.5849 | -527.0 | -385.9 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 21.05 | 55.93 | -26.48 | 57.02 | 0.4980 | -652.0 | -581.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 23.04 | 55.49 | -26.92 | 53.93 | 0.5175 | -629.0 | -497.6 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 28.63 | 53.91 | -28.50 | 46.61 | 0.5785 | -707.0 | -517.0 | |
| 1.40 | 2.71 | 0.84 | 1.62 | 27.37 | 54.23 | -28.17 | 48.15 | 0.5650 | -566.5 | -566.1 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 28.22 | 53.60 | -28.80 | 47.45 | 0.5784 | -712.0 | -656.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 27.31 | 53.63 | -28.77 | 48.75 | 0.5709 | -607.0 | -411.3 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 27.95 | 53.30 | -29.11 | 48.11 | 0.5795 | -517.0 | -407.1 | |
| 1.57 | 7.17 | 0.95 | 4.33 | 27.46 | 53.40 | -29.01 | 48.73 | 0.5746 | 250.0 | 99.3 | |
| 0.00 | 4.37 | 0.00 | 2.65 | 27.60 | 52.89 | -29.51 | 48.94 | 0.5811 | -708.0 | -566.6 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 27.28 | 52.95 | -29.45 | 49.37 | 0.5781 | -730.0 | -544.5 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 27.27 | 52.80 | -29.61 | 49.50 | 0.5797 | -586.0 | -503.7 | |
| 0.00 | 1.57 | 0.00 | 0.95 | 26.52 | 52.48 | -29.93 | 50.89 | 0.5776 | -689.0 | -542.9 | |
| 0.00 | 1.84 | 0.00 | 1.11 | 26.18 | 52.19 | -30.22 | 51.62 | 0.5784 | -720.0 | -538.1 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 20.69 | 48.63 | -33.77 | 62.56 | 0.5882 | 566.0 | 438.1 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 19.66 | 48.65 | -33.75 | 64.21 | 0.5833 | 795.0 | 655.6 | |
| 0.00 | 1.66 | 0.00 | 1.01 | 19.59 | 48.40 | -34.00 | 64.45 | 0.5861 | 745.0 | 574.7 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 19.07 | 48.45 | -33.95 | 65.29 | 0.5833 | 707.0 | 600.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 19.43 | 48.33 | -34.08 | 64.75 | 0.5864 | 888.0 | 733.8 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 26.59 | 46.09 | -36.31 | 55.07 | 0.6482 | 593.0 | 516.8 | |
| 0.00 | 1.31 | 0.00 | 0.82 | 22.21 | 47.44 | -34.96 | 60.78 | 0.6101 | 612.0 | 503.1 | |
| 0.00 | 1.92 | 0.00 | 1.17 | 18.90 | 48.18 | -34.22 | 65.69 | 0.5860 | 732.0 | 601.3 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 22.19 | 47.09 | -35.31 | 61.00 | 0.6143 | 687.0 | 463.4 | |
| 0.00 | 2.01 | 0.00 | 1.26 | 22.14 | 46.75 | -35.66 | 61.25 | 0.6181 | 630.0 | 573.0 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 22.42 | 46.66 | -35.74 | 60.87 | 0.6204 | 487.0 | 470.0 | |
| 0.00 | 1.49 | 0.00 | 0.95 | 23.43 | 45.54 | -36.86 | 59.93 | 0.6383 | 723.0 | 621.8 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 23.61 | 45.48 | -36.92 | 59.69 | 0.6399 | 666.0 | 551.2 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 26.96 | 44.13 | -38.27 | 55.62 | 0.6712 | 530.0 | 407.3 | |
| 0.00 | 1.31 | 0.00 | 0.87 | 26.31 | 44.18 | -38.23 | 56.49 | 0.6676 | 638.0 | 569.7 | |
| 0.00 | 1.14 | 0.00 | 0.76 | 26.43 | 43.92 | -38.49 | 56.46 | 0.6709 | 500.0 | 538.5 | |
| 0.00 | 2.18 | 0.00 | 1.46 | 26.58 | 43.73 | -38.67 | 56.35 | 0.6737 | 565.0 | 469.9 | |
| 0.00 | 1.84 | 0.00 | 1.22 | 26.04 | 43.90 | -38.50 | 57.01 | 0.6692 | 490.0 | 407.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 25.81 | 43.90 | -38.50 | 57.32 | 0.6681 | 682.0 | 503.3 | |
| 0.00 | 1.92 | 0.00 | 1.28 | 25.99 | 43.66 | -38.74 | 57.19 | 0.6716 | 680.0 | 625.1 | |
| 0.00 | 1.57 | 0.00 | 1.06 | 26.32 | 43.19 | -39.21 | 56.98 | 0.6782 | 600.0 | 541.2 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 26.55 | 42.75 | -39.66 | 56.87 | 0.6840 | 478.0 | 382.4 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 27.34 | 41.52 | -40.88 | 56.37 | 0.7006 | 472.0 | 413.1 | |
| 0.00 | 1.31 | 0.00 | 0.94 | 29.12 | 40.17 | -42.24 | 54.65 | 0.7222 | 506.0 | 416.9 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 20.13 | 43.42 | -38.98 | 65.76 | 0.6501 | 545.0 | 457.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
