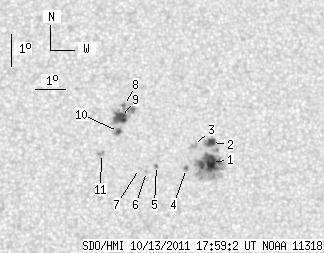

SDO HMI 2011-10-13 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.18 | 114.83 | 19.14 | 60.72 | 19.96 | 97.85 | 15.45 | 314.47 | 0.3524 | -206.3 | -246.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.78 | 58.12 | 8.90 | 30.78 | 19.47 | 98.82 | 16.42 | 311.66 | 0.3582 | -1024.3 | -604.3 | |
| 5.42 | 11.97 | 2.88 | 6.36 | 20.09 | 98.88 | 16.48 | 312.89 | 0.3652 | -884.1 | -662.3 | |
| 0.00 | 4.46 | 0.00 | 2.36 | 20.01 | 98.28 | 15.88 | 313.73 | 0.3573 | -899.0 | -813.2 | |
| 0.44 | 1.84 | 0.23 | 0.97 | 19.31 | 97.98 | 15.58 | 312.71 | 0.3464 | -1074.8 | -825.0 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 19.43 | 97.01 | 14.60 | 314.73 | 0.3361 | 813.0 | 672.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 19.25 | 96.66 | 14.26 | 314.98 | 0.3302 | -934.0 | -666.5 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 19.35 | 96.44 | 14.04 | 315.63 | 0.3287 | -460.0 | -365.4 | |
| 0.44 | 27.35 | 0.23 | 14.42 | 21.31 | 96.13 | 13.73 | 320.36 | 0.3480 | 597.8 | 660.1 | |
| 10.57 | -8.00 | 5.57 | -8.00 | 20.94 | 95.96 | 13.56 | 319.95 | 0.3418 | 1079.3 | 999999 | |
| 2.53 | 4.54 | 1.33 | 2.39 | 20.51 | 95.86 | 13.45 | 319.29 | 0.3356 | 1011.2 | 790.4 | |
| 0.00 | 3.06 | 0.00 | 1.60 | 19.84 | 95.24 | 12.84 | 319.15 | 0.3210 | 980.0 | 787.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
