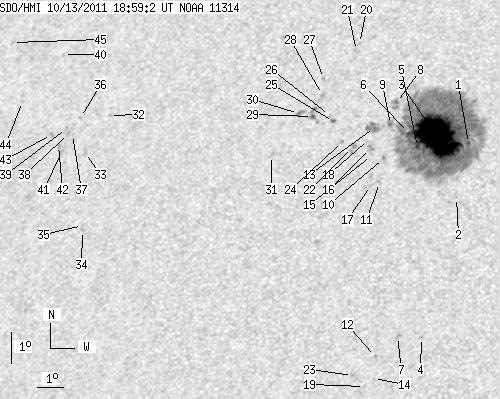

SDO HMI 2011-10-13 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.26 | 669.91 | 70.67 | 389.44 | 26.97 | 57.28 | -24.57 | 45.17 | 0.5235 | -980.2 | -402.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 576.16 | 0.85 | 332.57 | 26.87 | 59.31 | -22.54 | 43.25 | 0.5010 | -1017.5 | -435.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 25.14 | 59.23 | -22.62 | 46.08 | 0.4853 | 511.0 | 455.7 | |
| 113.87 | -1.00 | 65.72 | -1.00 | 27.05 | 58.14 | -23.71 | 44.29 | 0.5149 | -1482.0 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 20.73 | 58.79 | -23.06 | 54.42 | 0.4524 | -749.0 | -563.6 | |
| 1.57 | -1.00 | 0.91 | -1.00 | 26.70 | 57.49 | -24.36 | 45.52 | 0.5186 | -1001.8 | 999999 | |
| 0.26 | -1.00 | 0.15 | -1.00 | 27.14 | 57.05 | -24.80 | 45.31 | 0.5271 | -505.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 20.73 | 57.95 | -23.90 | 55.27 | 0.4630 | -747.0 | -672.1 | |
| 0.61 | 5.94 | 0.36 | 3.50 | 28.08 | 56.37 | -25.48 | 44.60 | 0.5427 | -621.4 | -519.9 | |
| 0.00 | 5.42 | 0.00 | 3.18 | 27.36 | 56.33 | -25.52 | 45.70 | 0.5368 | -859.0 | -618.8 | |
| 0.00 | 1.84 | 0.00 | 1.07 | 26.27 | 56.33 | -25.52 | 47.37 | 0.5272 | -921.0 | -773.0 | |
| 0.00 | 1.75 | 0.00 | 1.01 | 25.50 | 56.36 | -25.49 | 48.54 | 0.5203 | -660.0 | -441.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 20.08 | 57.29 | -24.56 | 57.13 | 0.4667 | -775.0 | -628.9 | |
| 0.00 | 13.46 | 0.00 | 7.92 | 27.24 | 55.76 | -26.09 | 46.44 | 0.5417 | -834.0 | -630.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 19.41 | 57.33 | -24.52 | 58.40 | 0.4615 | -678.0 | -539.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 26.35 | 55.87 | -25.98 | 47.70 | 0.5329 | -627.0 | -551.6 | |
| 0.00 | 3.41 | 0.00 | 2.00 | 26.57 | 55.78 | -26.07 | 47.45 | 0.5357 | -869.0 | -708.0 | |
| 0.00 | 1.84 | 0.00 | 1.06 | 25.40 | 56.06 | -25.79 | 49.01 | 0.5228 | -770.0 | -610.4 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 26.85 | 55.63 | -26.22 | 47.15 | 0.5397 | -266.0 | -307.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 19.15 | 57.06 | -24.79 | 59.15 | 0.4633 | -634.0 | -430.2 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 29.92 | 54.45 | -27.40 | 43.82 | 0.5783 | -589.0 | -442.2 | |
| 0.00 | 2.36 | 0.00 | 1.43 | 29.69 | 54.40 | -27.45 | 44.18 | 0.5768 | -666.0 | -506.8 | |
| 0.00 | 4.54 | 0.00 | 2.68 | 26.57 | 55.11 | -26.74 | 48.08 | 0.5431 | -713.0 | -643.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 19.47 | 56.59 | -25.27 | 58.94 | 0.4717 | -698.0 | -577.5 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 26.74 | 54.69 | -27.17 | 48.20 | 0.5491 | -661.0 | -546.0 | |
| 1.66 | 2.18 | 0.99 | 1.30 | 27.37 | 54.18 | -27.67 | 47.72 | 0.5596 | -580.2 | -602.0 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 27.55 | 53.98 | -27.87 | 47.63 | 0.5632 | -613.0 | -516.0 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 28.73 | 53.41 | -28.44 | 46.42 | 0.5788 | -696.0 | -558.2 | |
| 0.00 | 1.75 | 0.00 | 1.05 | 28.21 | 53.52 | -28.33 | 47.06 | 0.5734 | -746.0 | -622.1 | |
| 1.66 | 8.91 | 1.00 | 5.36 | 27.49 | 53.34 | -28.51 | 48.27 | 0.5695 | 304.4 | -26.1 | |
| 1.14 | 3.32 | 0.69 | 2.01 | 27.56 | 52.78 | -29.07 | 48.64 | 0.5760 | -557.0 | -597.0 | |
| 0.00 | 2.10 | 0.00 | 1.27 | 26.17 | 52.14 | -29.71 | 51.23 | 0.5727 | -632.0 | -516.6 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 27.10 | 45.35 | -36.50 | 54.46 | 0.6530 | 576.0 | 528.1 | |
| 0.00 | 3.32 | 0.00 | 2.17 | 25.87 | 44.81 | -37.04 | 56.49 | 0.6524 | 709.0 | 487.8 | |
| 0.00 | 1.92 | 0.00 | 1.23 | 23.43 | 45.52 | -36.33 | 59.66 | 0.6321 | 730.0 | 585.5 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 23.58 | 45.47 | -36.38 | 59.45 | 0.6335 | 598.0 | 537.3 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 26.96 | 44.18 | -37.67 | 55.30 | 0.6649 | 592.0 | 505.3 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 26.41 | 44.06 | -37.79 | 56.14 | 0.6633 | 679.0 | 562.6 | |
| 0.00 | 1.84 | 0.00 | 1.21 | 26.43 | 43.88 | -37.97 | 56.20 | 0.6653 | 672.0 | 586.6 | |
| 0.00 | 1.31 | 0.00 | 0.87 | 26.58 | 43.74 | -38.11 | 56.06 | 0.6677 | 522.0 | 466.7 | |
| 0.00 | 1.14 | 0.00 | 0.78 | 28.92 | 42.61 | -39.24 | 53.47 | 0.6913 | 619.0 | 501.2 | |
| 0.00 | 2.62 | 0.00 | 1.73 | 25.81 | 43.82 | -38.03 | 57.09 | 0.6629 | 501.0 | 493.4 | |
| 0.00 | 1.57 | 0.00 | 1.04 | 26.02 | 43.61 | -38.24 | 56.90 | 0.6663 | 682.0 | 600.9 | |
| 0.00 | 1.75 | 0.00 | 1.17 | 26.35 | 43.19 | -38.67 | 56.66 | 0.6725 | 639.0 | 531.8 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 27.32 | 41.52 | -40.33 | 56.16 | 0.6947 | 582.0 | 456.4 | |
| 0.00 | 1.31 | 0.00 | 0.93 | 29.16 | 40.20 | -41.65 | 54.34 | 0.7166 | 550.0 | 441.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
