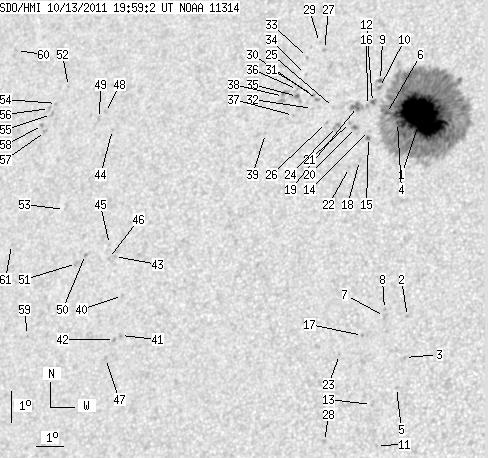

SDO HMI 2011-10-13 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.07 | 708.52 | 67.96 | 409.58 | 26.82 | 57.26 | -24.03 | 44.86 | 0.5170 | -860.4 | -391.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.94 | 612.36 | 63.21 | 352.04 | 27.07 | 58.09 | -23.21 | 43.71 | 0.5099 | -1506.9 | -430.3 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 20.75 | 58.78 | -22.52 | 53.79 | 0.4457 | -808.0 | -694.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 19.49 | 58.87 | -22.43 | 56.20 | 0.4347 | -823.0 | -625.2 | |
| 0.96 | -1.00 | 0.56 | -1.00 | 26.81 | 57.27 | -24.03 | 45.00 | 0.5160 | -795.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 18.56 | 58.73 | -22.57 | 58.26 | 0.4297 | -769.0 | -573.6 | |
| 1.22 | -1.00 | 0.71 | -1.00 | 27.08 | 56.80 | -24.50 | 45.08 | 0.5234 | -329.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.31 | 20.72 | 57.99 | -23.31 | 54.69 | 0.4555 | -717.0 | -629.6 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 20.94 | 57.95 | -23.35 | 54.32 | 0.4576 | -702.0 | -583.8 | |
| 1.49 | 2.80 | 0.87 | 1.64 | 28.13 | 56.33 | -24.97 | 44.01 | 0.5380 | -597.2 | -444.3 | |
| 0.00 | 3.06 | 0.00 | 1.79 | 27.91 | 56.35 | -24.95 | 44.32 | 0.5357 | -765.0 | -551.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 16.77 | 58.29 | -23.01 | 62.50 | 0.4238 | -798.0 | -568.0 | |
| 1.49 | 2.88 | 0.87 | 1.69 | 27.42 | 56.20 | -25.09 | 45.20 | 0.5327 | -702.6 | -628.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 18.01 | 57.95 | -23.35 | 60.16 | 0.4364 | -765.0 | -559.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 26.52 | 56.31 | -24.99 | 46.46 | 0.5236 | -753.0 | -568.0 | |
| 1.22 | 1.84 | 0.71 | 1.06 | 26.29 | 56.32 | -24.98 | 46.79 | 0.5215 | -817.1 | -753.7 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 27.31 | 56.04 | -25.25 | 45.51 | 0.5335 | -650.0 | -597.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 20.11 | 57.32 | -23.98 | 56.53 | 0.4594 | -815.0 | -678.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 25.55 | 56.16 | -25.14 | 48.12 | 0.5168 | -694.0 | -613.8 | |
| 0.00 | 7.87 | 0.00 | 4.61 | 27.26 | 55.68 | -25.62 | 45.95 | 0.5369 | -793.0 | -688.0 | |
| 0.44 | 2.01 | 0.25 | 1.17 | 26.59 | 55.77 | -25.53 | 46.88 | 0.5300 | -920.6 | -786.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 26.74 | 55.55 | -25.75 | 46.87 | 0.5337 | -699.0 | -604.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 25.32 | 55.85 | -25.45 | 48.81 | 0.5183 | -682.0 | -548.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 19.49 | 56.62 | -24.68 | 58.38 | 0.4642 | -692.0 | -559.3 | |
| 0.00 | 4.02 | 0.00 | 2.36 | 26.59 | 55.07 | -26.23 | 47.56 | 0.5377 | -742.0 | -660.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 27.19 | 54.80 | -26.50 | 46.90 | 0.5456 | -677.0 | -504.8 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 26.70 | 54.66 | -26.64 | 47.77 | 0.5430 | -729.0 | -505.2 | |
| 0.00 | 1.49 | 0.00 | 0.89 | 29.04 | 53.96 | -27.34 | 45.00 | 0.5701 | -705.0 | -588.2 | |
| 0.00 | 1.84 | 0.00 | 1.02 | 16.82 | 56.50 | -24.80 | 63.87 | 0.4490 | -733.0 | -551.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 29.26 | 53.70 | -27.60 | 44.92 | 0.5746 | -692.0 | -555.5 | |
| 0.00 | 2.01 | 0.00 | 1.19 | 27.42 | 54.14 | -27.16 | 47.18 | 0.5546 | -905.0 | -668.0 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 27.54 | 53.95 | -27.35 | 47.17 | 0.5576 | -579.0 | -447.5 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 27.13 | 54.03 | -27.27 | 47.72 | 0.5533 | -583.0 | -410.1 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 28.75 | 53.38 | -27.92 | 45.92 | 0.5735 | -690.0 | -534.7 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 28.20 | 53.46 | -27.83 | 46.64 | 0.5681 | -745.0 | -581.2 | |
| 1.31 | 3.23 | 0.78 | 1.93 | 27.48 | 53.36 | -27.94 | 47.79 | 0.5634 | 420.3 | -38.7 | |
| 0.00 | 3.41 | 0.00 | 2.04 | 27.71 | 53.30 | -28.00 | 47.51 | 0.5659 | 390.0 | 101.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 26.87 | 53.37 | -27.92 | 48.69 | 0.5583 | -762.0 | -594.0 | |
| 0.00 | 6.64 | 0.00 | 3.99 | 27.46 | 52.83 | -28.47 | 48.28 | 0.5688 | -189.0 | -574.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 26.25 | 52.48 | -28.82 | 50.39 | 0.5634 | -657.0 | -548.9 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 20.93 | 48.42 | -32.88 | 61.68 | 0.5782 | 624.0 | 406.9 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 19.69 | 48.64 | -32.66 | 63.59 | 0.5695 | 841.0 | 724.2 | |
| 0.00 | 1.75 | 0.00 | 1.05 | 19.56 | 48.45 | -32.85 | 63.92 | 0.5713 | 814.0 | 646.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 22.11 | 47.81 | -33.49 | 60.13 | 0.5918 | 791.0 | 643.2 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 26.07 | 46.52 | -34.77 | 54.91 | 0.6284 | 615.0 | 530.3 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 22.47 | 47.52 | -33.78 | 59.73 | 0.5972 | 485.0 | 394.8 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 22.04 | 47.60 | -33.70 | 60.37 | 0.5940 | 764.0 | 650.6 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 18.96 | 48.24 | -33.06 | 65.02 | 0.5713 | 821.0 | 706.8 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 26.59 | 46.06 | -35.24 | 54.44 | 0.6366 | 626.0 | 485.9 | |
| 0.00 | 1.84 | 0.00 | 1.18 | 26.39 | 45.88 | -35.42 | 54.84 | 0.6373 | 574.0 | 527.0 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 22.11 | 46.68 | -34.62 | 60.76 | 0.6055 | 757.0 | 618.1 | |
| 0.00 | 2.36 | 0.00 | 1.47 | 21.81 | 46.41 | -34.89 | 61.37 | 0.6073 | 775.0 | 631.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 27.32 | 44.24 | -37.06 | 54.46 | 0.6602 | 499.0 | 394.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 23.46 | 45.44 | -35.86 | 59.37 | 0.6268 | 705.0 | 650.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 26.76 | 43.96 | -37.34 | 55.41 | 0.6603 | 507.0 | 473.8 | |
| 0.00 | 2.10 | 0.00 | 1.38 | 26.40 | 43.88 | -37.42 | 55.95 | 0.6592 | 694.0 | 629.0 | |
| 0.00 | 1.57 | 0.00 | 1.04 | 26.58 | 43.73 | -37.57 | 55.77 | 0.6618 | 539.0 | 469.8 | |
| 0.00 | 2.01 | 0.00 | 1.32 | 25.85 | 43.84 | -37.46 | 56.75 | 0.6569 | 601.0 | 557.1 | |
| 0.00 | 1.49 | 0.00 | 0.98 | 26.03 | 43.64 | -37.65 | 56.59 | 0.6599 | 702.0 | 561.4 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 19.49 | 45.10 | -36.19 | 65.61 | 0.6135 | 576.0 | 503.5 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 28.33 | 41.57 | -39.73 | 54.50 | 0.6934 | 513.0 | 428.6 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 22.25 | 43.67 | -37.63 | 62.04 | 0.6420 | 631.0 | 545.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
