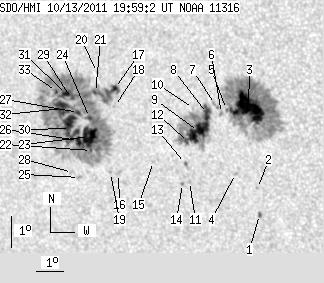

SDO HMI 2011-10-13 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 155.65 | 813.87 | 96.62 | 507.17 | -12.27 | 48.56 | -32.74 | 119.49 | 0.6082 | 93.7 | -66.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 1.92 | 1.06 | 1.17 | -15.04 | 52.39 | -28.91 | 126.57 | 0.5835 | -647.1 | -525.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -14.21 | 52.44 | -28.86 | 125.42 | 0.5764 | 654.0 | 508.6 | |
| 50.25 | 247.14 | 29.92 | 146.97 | -11.65 | 52.45 | -28.85 | 121.58 | 0.5569 | 1153.5 | 458.0 | |
| 0.00 | 1.75 | 0.00 | 1.06 | -13.77 | 51.72 | -29.57 | 124.13 | 0.5813 | 695.0 | 554.5 | |
| 0.35 | -3.00 | 0.21 | -3.00 | -11.76 | 51.67 | -29.63 | 121.06 | 0.5672 | 591.0 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.26 | -11.89 | 51.48 | -29.82 | 121.11 | 0.5706 | 664.0 | 517.9 | |
| 0.00 | 2.88 | 0.00 | 1.74 | -11.62 | 51.30 | -30.00 | 120.54 | 0.5709 | 532.0 | 564.7 | |
| 6.20 | 95.52 | 3.76 | 58.30 | -11.92 | 50.98 | -30.32 | 120.73 | 0.5769 | 950.9 | 263.8 | |
| 21.24 | -8.00 | 12.95 | -8.00 | -12.51 | 50.58 | -30.72 | 121.29 | 0.5858 | 972.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -11.79 | 50.50 | -30.80 | 120.14 | 0.5819 | 325.0 | 317.2 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -14.12 | 50.03 | -31.27 | 123.18 | 0.6037 | 609.0 | 449.9 | |
| 0.35 | -8.00 | 0.21 | -8.00 | -12.87 | 50.17 | -31.13 | 121.50 | 0.5932 | 359.5 | 999999 | |
| 1.31 | 2.62 | 0.81 | 1.62 | -13.55 | 49.97 | -31.33 | 122.32 | 0.6004 | 587.6 | 436.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -14.19 | 49.76 | -31.54 | 123.07 | 0.6074 | 672.0 | 572.7 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -13.55 | 48.81 | -32.49 | 121.40 | 0.6141 | 463.0 | 376.5 | |
| 0.00 | 2.62 | 0.00 | 1.67 | -14.01 | 47.44 | -33.86 | 121.02 | 0.6330 | -688.0 | -655.1 | |
| 2.36 | 445.17 | 1.48 | 285.70 | -11.32 | 47.70 | -33.60 | 117.35 | 0.6131 | 731.0 | -388.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -11.89 | 47.62 | -33.68 | 118.13 | 0.6175 | -748.0 | -622.5 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -14.00 | 47.15 | -34.15 | 120.78 | 0.6363 | -686.0 | -629.5 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -10.86 | 47.14 | -34.16 | 116.28 | 0.6173 | 637.0 | 508.8 | |
| 0.87 | -17.00 | 0.55 | -17.00 | -11.49 | 46.98 | -34.32 | 117.10 | 0.6229 | -912.9 | 999999 | |
| 0.52 | -17.00 | 0.34 | -17.00 | -13.34 | 46.55 | -34.75 | 119.44 | 0.6392 | -691.3 | 999999 | |
| 18.88 | -17.00 | 12.10 | -17.00 | -12.90 | 46.54 | -34.76 | 118.82 | 0.6365 | -1128.2 | 999999 | |
| 1.31 | -17.00 | 0.84 | -17.00 | -12.30 | 46.64 | -34.66 | 118.03 | 0.6318 | -1113.1 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.20 | -14.23 | 45.94 | -35.36 | 120.25 | 0.6517 | -745.0 | -602.1 | |
| 3.93 | -17.00 | 2.54 | -17.00 | -13.05 | 46.11 | -35.19 | 118.73 | 0.6426 | -772.2 | 999999 | |
| 2.36 | -17.00 | 1.51 | -17.00 | -12.16 | 46.25 | -35.05 | 117.57 | 0.6357 | -979.9 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.71 | -14.09 | 45.70 | -35.60 | 119.89 | 0.6535 | -546.0 | -423.3 | |
| 0.79 | -17.00 | 0.50 | -17.00 | -11.74 | 46.05 | -35.25 | 116.84 | 0.6356 | -1006.8 | 999999 | |
| 23.86 | -17.00 | 15.40 | -17.00 | -12.69 | 45.86 | -35.44 | 118.06 | 0.6433 | -853.9 | 999999 | |
| 2.62 | -17.00 | 1.68 | -17.00 | -11.62 | 45.88 | -35.42 | 116.56 | 0.6370 | -1165.7 | 999999 | |
| 15.56 | -17.00 | 10.03 | -17.00 | -12.08 | 45.66 | -35.64 | 117.06 | 0.6421 | -827.8 | 999999 | |
| 1.14 | -17.00 | 0.73 | -17.00 | -11.55 | 45.51 | -35.79 | 116.23 | 0.6410 | -730.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
