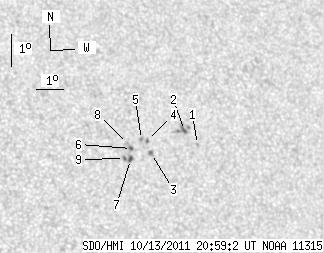

SDO HMI 2011-10-13 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.68 | 22.81 | 3.28 | 13.24 | 20.02 | 109.81 | 29.06 | 299.17 | 0.5247 | 431.3 | 33.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.77 | 19.87 | 111.14 | 30.40 | 298.03 | 0.5412 | -797.0 | -572.5 | |
| 2.01 | 9.09 | 1.18 | 5.33 | 20.33 | 110.76 | 30.01 | 299.06 | 0.5387 | -985.8 | -650.8 | |
| 0.00 | 2.88 | 0.00 | 1.67 | 19.68 | 109.42 | 28.67 | 298.82 | 0.5178 | 951.0 | 718.4 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 20.09 | 109.36 | 28.61 | 299.59 | 0.5193 | 735.0 | 633.2 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 20.13 | 109.15 | 28.40 | 299.82 | 0.5168 | 830.0 | 638.7 | |
| 0.61 | 1.75 | 0.35 | 1.00 | 19.87 | 108.74 | 27.99 | 299.65 | 0.5099 | 895.6 | 731.8 | |
| 1.92 | 2.45 | 1.10 | 1.40 | 19.53 | 108.64 | 27.89 | 299.11 | 0.5066 | 837.5 | 705.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 20.03 | 108.62 | 27.88 | 300.02 | 0.5094 | 805.0 | 694.0 | |
| 1.14 | 1.22 | 0.65 | 0.70 | 19.57 | 108.43 | 27.68 | 299.34 | 0.5041 | 787.0 | 844.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
