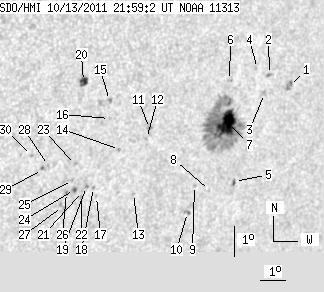

SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.90 | 191.41 | 21.76 | 131.25 | -14.83 | 119.07 | 38.87 | 241.18 | 0.6944 | 248.4 | 273.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.63 | 0.00 | 3.31 | -13.68 | 122.19 | 42.00 | 244.46 | 0.7229 | 567.0 | 504.6 | |
| 0.00 | 2.01 | 0.00 | 1.41 | -13.26 | 121.28 | 41.09 | 244.52 | 0.7109 | 650.0 | 560.2 | |
| 0.00 | 2.10 | 0.00 | 1.48 | -13.86 | 121.20 | 41.01 | 243.71 | 0.7129 | 610.0 | 465.2 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -13.04 | 120.75 | 40.55 | 244.53 | 0.7039 | 591.0 | 615.8 | |
| 0.00 | 2.01 | 0.00 | 1.43 | -16.62 | 120.62 | 40.43 | 239.86 | 0.7209 | 581.0 | 409.5 | |
| 0.00 | 2.10 | 0.00 | 1.44 | -13.34 | 119.68 | 39.49 | 243.54 | 0.6934 | 757.0 | 669.8 | |
| 25.00 | 139.85 | 17.35 | 96.85 | -14.72 | 119.89 | 39.69 | 241.86 | 0.7029 | 955.8 | 415.6 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -16.85 | 119.66 | 39.46 | 239.01 | 0.7120 | 534.0 | 441.0 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -16.64 | 119.00 | 38.81 | 238.86 | 0.7039 | 470.0 | 355.9 | |
| 0.00 | 2.27 | 0.00 | 1.59 | -17.51 | 118.94 | 38.74 | 237.73 | 0.7082 | -580.0 | -543.9 | |
| 0.00 | 1.57 | 0.00 | 1.04 | -14.67 | 116.80 | 36.61 | 240.01 | 0.6684 | -816.0 | -653.1 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -14.98 | 116.75 | 36.55 | 239.55 | 0.6697 | -644.0 | -528.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -16.74 | 116.61 | 36.42 | 237.16 | 0.6790 | -504.0 | -394.2 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -15.27 | 115.77 | 35.57 | 238.50 | 0.6605 | -700.0 | -557.2 | |
| 0.00 | 1.75 | 0.00 | 1.13 | -13.67 | 115.09 | 34.90 | 240.21 | 0.6429 | 870.0 | 627.5 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -14.25 | 115.20 | 35.00 | 239.48 | 0.6477 | -347.0 | -384.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -16.74 | 115.19 | 34.99 | 236.14 | 0.6637 | -405.0 | -327.8 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -16.44 | 115.01 | 34.82 | 236.40 | 0.6597 | -546.0 | -461.5 | |
| 0.00 | 2.10 | 0.00 | 1.37 | -16.39 | 114.74 | 34.54 | 236.27 | 0.6564 | -778.0 | -665.0 | |
| 5.33 | 6.99 | 3.38 | 4.43 | -13.01 | 114.02 | 33.82 | 240.38 | 0.6261 | 809.2 | 550.4 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -16.55 | 114.62 | 34.42 | 235.97 | 0.6561 | -813.0 | -627.1 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -16.71 | 114.61 | 34.42 | 235.76 | 0.6572 | -654.0 | -567.8 | |
| 0.00 | 1.31 | 0.00 | 0.85 | -15.65 | 114.17 | 33.98 | 236.83 | 0.6452 | -758.0 | -585.9 | |
| 1.57 | 1.92 | 1.03 | 1.25 | -16.46 | 114.30 | 34.10 | 235.84 | 0.6521 | -787.6 | -742.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -16.17 | 114.16 | 33.97 | 236.14 | 0.6486 | -712.0 | -588.1 | |
| 0.00 | 1.31 | 0.00 | 0.85 | -16.54 | 114.01 | 33.82 | 235.52 | 0.6495 | -772.0 | -664.7 | |
| 0.00 | 3.23 | 0.00 | 2.11 | -16.99 | 113.95 | 33.76 | 234.89 | 0.6519 | -639.0 | -586.6 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -15.62 | 113.16 | 32.97 | 236.09 | 0.6337 | -804.0 | -593.2 | |
| 0.00 | 1.66 | 0.00 | 1.06 | -15.74 | 112.96 | 32.77 | 235.78 | 0.6323 | -845.0 | -669.7 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -15.26 | 112.47 | 32.28 | 236.04 | 0.6234 | -707.0 | -683.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
