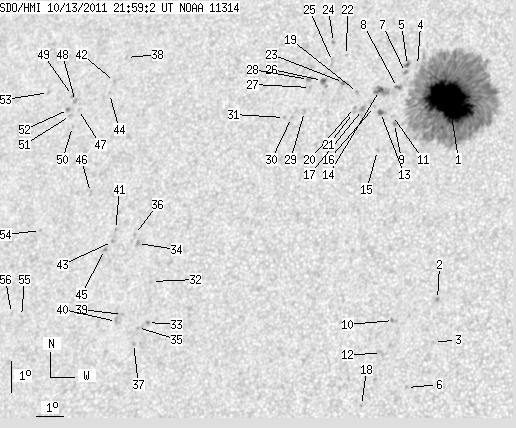

SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.78 | 729.31 | 71.91 | 419.02 | 26.77 | 57.13 | -23.06 | 43.83 | 0.5066 | -848.9 | -362.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.02 | 624.68 | 65.64 | 356.64 | 27.05 | 58.09 | -22.11 | 42.48 | 0.4983 | -1505.7 | -413.7 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 20.82 | 58.77 | -21.42 | 52.43 | 0.4326 | -848.0 | -678.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.50 | 58.83 | -21.37 | 55.03 | 0.4209 | -788.0 | -605.5 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 28.16 | 56.67 | -23.53 | 42.44 | 0.5236 | -51.0 | -29.3 | |
| 1.40 | 3.41 | 0.81 | 1.99 | 28.14 | 56.30 | -23.89 | 42.86 | 0.5271 | -621.2 | -475.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 18.09 | 58.10 | -22.10 | 58.78 | 0.4199 | -651.0 | -527.8 | |
| 0.00 | 2.27 | 0.00 | 1.32 | 27.91 | 56.28 | -23.91 | 43.22 | 0.5252 | -798.0 | -607.2 | |
| 1.92 | 2.71 | 1.12 | 1.57 | 27.42 | 56.10 | -24.09 | 44.14 | 0.5224 | -753.5 | -690.9 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 26.27 | 56.25 | -23.94 | 45.75 | 0.5101 | -961.0 | -776.6 | |
| 0.00 | 2.80 | 0.00 | 1.55 | 20.12 | 57.36 | -22.83 | 55.36 | 0.4447 | -709.0 | -646.5 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 26.52 | 56.12 | -24.07 | 45.49 | 0.5138 | -729.0 | -598.8 | |
| 0.00 | 3.23 | 0.00 | 1.78 | 19.09 | 57.10 | -23.09 | 57.68 | 0.4404 | -667.0 | -581.3 | |
| 2.19 | 3.76 | 1.26 | 2.17 | 26.60 | 55.66 | -24.53 | 45.86 | 0.5194 | -859.7 | -661.8 | |
| 3.15 | 11.97 | 1.83 | 6.97 | 27.30 | 55.46 | -24.73 | 45.00 | 0.5279 | -731.0 | -622.4 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 25.39 | 55.82 | -24.37 | 47.59 | 0.5069 | -761.0 | -598.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 26.78 | 55.40 | -24.79 | 45.85 | 0.5239 | -772.0 | -616.7 | |
| 0.00 | 2.71 | 0.00 | 1.58 | 26.67 | 54.98 | -25.21 | 46.45 | 0.5273 | -838.0 | -688.6 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 17.48 | 56.65 | -23.55 | 61.45 | 0.4357 | -724.0 | -517.5 | |
| 0.00 | 1.49 | 0.00 | 0.87 | 27.20 | 54.67 | -25.53 | 45.95 | 0.5354 | -700.0 | -549.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 26.72 | 54.68 | -25.52 | 46.68 | 0.5311 | -720.0 | -557.2 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 26.56 | 54.68 | -25.52 | 46.92 | 0.5297 | -605.0 | -433.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 28.37 | 53.96 | -26.24 | 44.92 | 0.5531 | -597.0 | -470.0 | |
| 0.00 | 4.20 | 0.00 | 2.47 | 27.50 | 54.07 | -26.12 | 46.09 | 0.5443 | -798.0 | -576.1 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 28.77 | 53.35 | -26.84 | 44.92 | 0.5627 | -785.0 | -644.2 | |
| 0.00 | 2.88 | 0.00 | 1.72 | 28.15 | 53.48 | -26.71 | 45.68 | 0.5561 | -630.0 | -473.0 | |
| 1.75 | 4.20 | 1.04 | 2.49 | 27.53 | 53.27 | -26.92 | 46.80 | 0.5530 | 464.0 | 34.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 27.28 | 52.88 | -27.31 | 47.52 | 0.5551 | -745.0 | -555.7 | |
| 0.35 | 2.01 | 0.21 | 1.20 | 27.54 | 52.74 | -27.46 | 47.28 | 0.5587 | -813.0 | -603.5 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 26.51 | 52.86 | -27.34 | 48.71 | 0.5490 | -831.0 | -618.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 26.30 | 52.42 | -27.77 | 49.42 | 0.5521 | -771.0 | -580.5 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 26.28 | 52.16 | -28.03 | 49.67 | 0.5549 | -702.0 | -533.2 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 20.92 | 48.49 | -31.70 | 60.99 | 0.5634 | 191.0 | 216.7 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 19.66 | 48.63 | -31.56 | 63.04 | 0.5552 | 951.0 | 797.7 | |
| 0.00 | 2.80 | 0.00 | 1.70 | 22.07 | 47.68 | -32.52 | 59.62 | 0.5796 | 858.0 | 735.9 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 19.49 | 48.30 | -31.90 | 63.52 | 0.5587 | 821.0 | 718.0 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 22.34 | 47.49 | -32.70 | 59.30 | 0.5834 | 718.0 | 595.6 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 18.99 | 48.26 | -31.94 | 64.39 | 0.5569 | 760.0 | 617.2 | |
| 0.00 | 1.40 | 0.00 | 0.90 | 27.88 | 45.43 | -34.76 | 52.33 | 0.6391 | 432.0 | 381.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 19.85 | 47.65 | -32.54 | 63.26 | 0.5687 | 742.0 | 614.3 | |
| 0.00 | 1.84 | 0.00 | 1.10 | 19.63 | 47.48 | -32.72 | 63.73 | 0.5699 | 673.0 | 588.3 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 22.45 | 46.73 | -33.47 | 59.57 | 0.5933 | 704.0 | 599.8 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 27.09 | 45.23 | -34.97 | 53.57 | 0.6365 | 625.0 | 498.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 22.08 | 46.71 | -33.48 | 60.18 | 0.5915 | 823.0 | 688.2 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 26.70 | 45.16 | -35.03 | 54.16 | 0.6349 | 514.0 | 445.8 | |
| 0.00 | 1.57 | 0.00 | 0.97 | 21.81 | 46.47 | -33.72 | 60.73 | 0.5931 | 776.0 | 640.9 | |
| 0.00 | 1.84 | 0.00 | 1.15 | 23.55 | 45.43 | -34.77 | 58.63 | 0.6145 | 690.0 | 545.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 26.12 | 44.09 | -36.10 | 55.62 | 0.6434 | 660.0 | 549.2 | |
| 0.00 | 2.19 | 0.00 | 1.42 | 26.36 | 43.88 | -36.32 | 55.39 | 0.6470 | 670.0 | 623.3 | |
| 0.00 | 1.92 | 0.00 | 1.25 | 26.55 | 43.69 | -36.51 | 55.24 | 0.6501 | 601.0 | 501.3 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 25.57 | 44.04 | -36.16 | 56.43 | 0.6410 | 525.0 | 414.9 | |
| 0.00 | 2.27 | 0.00 | 1.47 | 25.91 | 43.84 | -36.36 | 56.06 | 0.6451 | 723.0 | 487.5 | |
| 0.00 | 2.45 | 0.00 | 1.59 | 26.09 | 43.69 | -36.51 | 55.88 | 0.6477 | 732.0 | 622.6 | |
| 0.00 | 1.57 | 0.00 | 1.04 | 26.58 | 42.67 | -37.53 | 55.75 | 0.6614 | 657.0 | 491.2 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 22.26 | 43.82 | -36.37 | 61.43 | 0.6272 | 672.0 | 484.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 19.57 | 43.82 | -36.37 | 65.56 | 0.6160 | 695.0 | 533.2 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 19.64 | 43.41 | -36.79 | 65.63 | 0.6215 | 575.0 | 437.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
