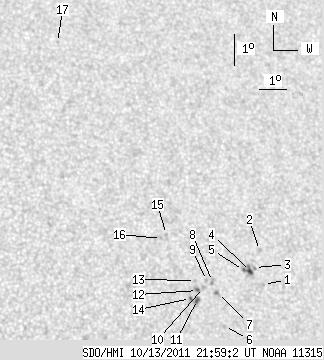

SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.52 | 32.69 | 4.38 | 19.04 | 20.34 | 109.39 | 29.19 | 299.64 | 0.5289 | 226.2 | 211.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.41 | 19.91 | 111.16 | 30.96 | 297.74 | 0.5487 | -765.0 | -657.4 | |
| 0.00 | 2.19 | 0.00 | 1.30 | 20.96 | 111.24 | 31.05 | 299.47 | 0.5554 | -622.0 | -494.5 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 20.44 | 110.94 | 30.75 | 298.79 | 0.5487 | -754.0 | -615.7 | |
| 2.53 | 5.77 | 1.50 | 3.40 | 20.33 | 110.77 | 30.57 | 298.71 | 0.5459 | -962.4 | -818.1 | |
| 0.44 | -4.00 | 0.26 | -4.00 | 20.37 | 110.52 | 30.32 | 298.94 | 0.5429 | -715.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 18.69 | 109.48 | 29.28 | 296.64 | 0.5204 | 683.0 | 531.4 | |
| 0.00 | 2.36 | 0.00 | 1.37 | 19.71 | 109.42 | 29.23 | 298.51 | 0.5252 | 908.0 | 686.4 | |
| 0.00 | 2.53 | 0.00 | 1.47 | 20.09 | 109.32 | 29.12 | 299.25 | 0.5259 | 717.0 | 529.3 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 20.13 | 109.11 | 28.91 | 299.46 | 0.5234 | 780.0 | 583.0 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 19.92 | 108.96 | 28.76 | 299.20 | 0.5203 | 644.0 | 482.9 | |
| 2.45 | 4.72 | 1.41 | 2.72 | 19.57 | 108.67 | 28.47 | 298.76 | 0.5145 | 754.6 | 549.8 | |
| 1.05 | 2.36 | 0.61 | 1.36 | 19.84 | 108.72 | 28.53 | 299.22 | 0.5168 | 848.7 | 810.9 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 20.15 | 108.71 | 28.52 | 299.78 | 0.5184 | 755.0 | 602.8 | |
| 1.05 | 1.57 | 0.60 | 0.91 | 19.61 | 108.42 | 28.23 | 299.01 | 0.5115 | 792.2 | 832.5 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 21.62 | 107.96 | 27.76 | 302.93 | 0.5180 | 724.0 | 605.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 21.50 | 107.75 | 27.56 | 302.89 | 0.5147 | 730.0 | 573.4 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 27.83 | 105.37 | 25.17 | 315.34 | 0.5373 | 419.0 | 394.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
