SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.67 | 689.87 | 68.22 | 394.44 | 26.99 | 57.34 | -22.30 | 42.65 | 0.5002 | -1001.1 | -423.0 | |
|
previous
or next observation for the same group /

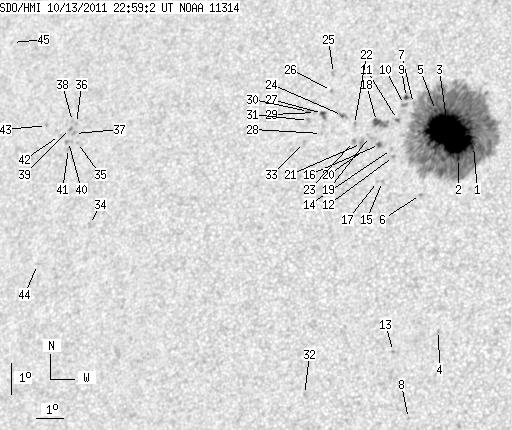

back to the solar disc SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 607.87 | 0.54 | 345.77 | 26.68 | 59.01 | -20.63 | 41.23 | 0.4797 | -1465.7 | -447.9 | |
| 1.49 | -1.00 | 0.84 | -1.00 | 26.28 | 58.55 | -21.09 | 42.43 | 0.4802 | -1317.2 | 999999 | |
| 104.20 | -1.00 | 59.27 | -1.00 | 27.07 | 58.04 | -21.61 | 41.85 | 0.4935 | -1522.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 20.87 | 58.76 | -20.88 | 51.68 | 0.4263 | -780.0 | -667.4 | |
| 0.96 | -1.00 | 0.55 | -1.00 | 27.78 | 57.41 | -22.23 | 41.52 | 0.5070 | -706.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 25.09 | 57.42 | -22.22 | 45.70 | 0.4805 | 797.0 | 577.4 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 27.98 | 56.56 | -23.08 | 42.20 | 0.5174 | 54.0 | 0.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 18.14 | 58.12 | -21.53 | 58.07 | 0.4126 | -790.0 | -523.8 | |
| 1.57 | 3.50 | 0.91 | 2.03 | 28.16 | 56.26 | -23.38 | 42.27 | 0.5222 | -565.9 | -438.8 | |
| 0.00 | 2.36 | 0.00 | 1.37 | 27.93 | 56.24 | -23.40 | 42.63 | 0.5202 | -751.0 | -590.1 | |
| 1.40 | 2.19 | 0.81 | 1.26 | 27.44 | 56.10 | -23.55 | 43.52 | 0.5170 | -757.8 | -680.3 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 26.26 | 56.21 | -23.43 | 45.21 | 0.5046 | -908.0 | -737.4 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 20.17 | 57.32 | -22.32 | 54.72 | 0.4386 | -778.0 | -629.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 26.48 | 56.09 | -23.55 | 45.00 | 0.5079 | -845.0 | -705.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 25.45 | 55.98 | -23.66 | 46.74 | 0.4996 | -846.0 | -604.4 | |
| 1.92 | 2.62 | 1.11 | 1.51 | 26.62 | 55.62 | -24.02 | 45.28 | 0.5142 | -860.2 | -667.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 25.44 | 55.80 | -23.84 | 46.94 | 0.5015 | -728.0 | -580.3 | |
| 4.11 | 10.05 | 2.39 | 5.83 | 27.35 | 55.34 | -24.30 | 44.47 | 0.5239 | -631.8 | -769.4 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 26.86 | 55.20 | -24.44 | 45.36 | 0.5209 | -527.0 | -434.9 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 26.47 | 55.18 | -24.47 | 45.98 | 0.5176 | -709.0 | -570.3 | |
| 0.00 | 4.72 | 0.00 | 2.74 | 26.62 | 54.96 | -24.68 | 45.97 | 0.5213 | -805.0 | -673.1 | |
| 0.00 | 1.92 | 0.00 | 1.12 | 27.22 | 54.56 | -25.08 | 45.48 | 0.5309 | -762.0 | -520.2 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 26.68 | 54.65 | -24.99 | 46.21 | 0.5251 | -657.0 | -578.7 | |
| 1.31 | 3.67 | 0.77 | 2.15 | 27.49 | 54.04 | -25.60 | 45.59 | 0.5387 | -665.3 | -588.6 | |
| 0.00 | 1.75 | 0.00 | 1.04 | 28.82 | 53.36 | -26.29 | 44.31 | 0.5576 | -711.0 | -592.3 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 28.27 | 53.43 | -26.21 | 45.03 | 0.5520 | -649.0 | -523.9 | |
| 1.75 | 3.50 | 1.03 | 2.06 | 27.52 | 53.29 | -26.36 | 46.28 | 0.5469 | 513.0 | -122.6 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 26.88 | 53.41 | -26.23 | 47.12 | 0.5401 | -680.0 | -509.5 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 27.54 | 53.02 | -26.63 | 46.50 | 0.5500 | -415.0 | -415.6 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 27.56 | 52.75 | -26.90 | 46.72 | 0.5530 | -851.0 | -631.3 | |
| 0.00 | 2.53 | 0.00 | 1.50 | 27.27 | 52.82 | -26.82 | 47.08 | 0.5498 | -768.0 | -620.5 | |
| 0.00 | 1.66 | 0.00 | 0.93 | 18.73 | 54.46 | -25.19 | 60.31 | 0.4659 | -747.0 | -459.3 | |
| 0.00 | 2.01 | 0.00 | 1.18 | 26.57 | 52.85 | -26.79 | 48.12 | 0.5435 | -824.0 | -627.1 | |
| 0.00 | 1.92 | 0.00 | 1.20 | 23.58 | 45.42 | -34.22 | 58.27 | 0.6083 | 699.0 | 514.9 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 26.12 | 44.11 | -35.53 | 55.28 | 0.6371 | 710.0 | 601.2 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 26.72 | 43.86 | -35.78 | 54.58 | 0.6432 | 628.0 | 509.2 | |
| 0.00 | 1.75 | 0.00 | 1.13 | 26.40 | 43.89 | -35.75 | 55.02 | 0.6411 | 733.0 | 671.8 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 26.77 | 43.67 | -35.97 | 54.61 | 0.6455 | 469.0 | 403.5 | |
| 0.00 | 1.84 | 0.00 | 1.19 | 26.55 | 43.67 | -35.97 | 54.93 | 0.6443 | 597.0 | 548.9 | |
| 0.00 | 2.97 | 0.00 | 1.91 | 26.13 | 43.74 | -35.90 | 55.48 | 0.6413 | 754.0 | 563.4 | |
| 0.00 | 1.49 | 0.00 | 0.95 | 25.91 | 43.82 | -35.83 | 55.75 | 0.6392 | 694.0 | 527.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 26.30 | 43.31 | -36.34 | 55.49 | 0.6469 | 427.0 | 406.2 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 26.58 | 42.66 | -36.98 | 55.45 | 0.6555 | 613.0 | 508.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 22.22 | 43.76 | -35.89 | 61.24 | 0.6213 | 734.0 | 623.9 | |
| 0.00 | 1.14 | 0.00 | 0.78 | 29.14 | 40.12 | -39.52 | 53.33 | 0.6953 | 360.0 | 374.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
