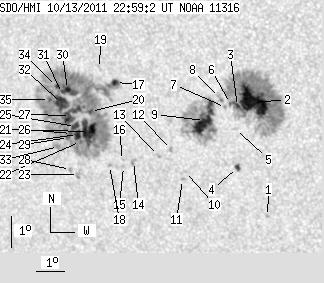

SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.18 | 823.54 | 92.94 | 503.29 | -12.26 | 48.64 | -31.00 | 120.84 | 0.5872 | 19.6 | -54.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.89 | -15.27 | 52.56 | -27.08 | 128.68 | 0.5648 | -783.0 | -633.9 | |
| 39.51 | 249.65 | 23.14 | 146.08 | -11.67 | 52.49 | -27.15 | 123.17 | 0.5361 | 1163.1 | 502.7 | |
| 1.66 | -2.00 | 0.98 | -2.00 | -11.82 | 51.96 | -27.69 | 122.90 | 0.5438 | 757.7 | 999999 | |
| 2.53 | 3.32 | 1.52 | 1.99 | -13.75 | 51.72 | -27.92 | 125.64 | 0.5618 | 756.4 | 632.6 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -12.55 | 51.80 | -27.84 | 123.89 | 0.5513 | 499.0 | 360.8 | |
| 0.26 | -2.00 | 0.15 | -2.00 | -11.74 | 51.72 | -27.92 | 122.55 | 0.5460 | 683.3 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.98 | -11.87 | 51.53 | -28.11 | 122.59 | 0.5494 | 559.0 | 535.3 | |
| 0.00 | 4.28 | 0.00 | 2.53 | -11.57 | 51.36 | -28.28 | 121.95 | 0.5492 | 539.0 | 428.3 | |
| 30.42 | 103.24 | 18.19 | 61.84 | -12.32 | 50.75 | -28.89 | 122.57 | 0.5623 | 925.4 | 234.5 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -13.98 | 49.86 | -29.78 | 124.25 | 0.5853 | 723.0 | 565.3 | |
| 0.00 | 1.57 | 0.00 | 0.96 | -14.24 | 49.72 | -29.93 | 124.50 | 0.5890 | 653.0 | 483.4 | |
| 0.00 | 1.92 | 0.00 | 1.17 | -13.30 | 49.46 | -30.19 | 122.91 | 0.5851 | 465.0 | 372.9 | |
| 0.00 | 1.75 | 0.00 | 1.07 | -13.52 | 48.96 | -30.68 | 122.81 | 0.5925 | 488.0 | 398.0 | |
| 0.00 | 3.06 | 0.00 | 1.90 | -13.76 | 48.03 | -31.62 | 122.39 | 0.6052 | -571.0 | -623.4 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -13.94 | 47.64 | -32.01 | 122.33 | 0.6111 | -838.0 | -586.1 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -13.75 | 47.63 | -32.01 | 122.06 | 0.6098 | -624.0 | -577.8 | |
| 3.50 | 430.69 | 2.15 | 270.73 | -11.30 | 47.72 | -31.92 | 118.51 | 0.5924 | 810.7 | -422.3 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -13.94 | 47.12 | -32.52 | 121.93 | 0.6170 | -718.0 | -589.3 | |
| 0.00 | 1.84 | 0.00 | 1.13 | -10.89 | 47.19 | -32.45 | 117.51 | 0.5963 | 253.0 | 312.0 | |
| 1.92 | -17.00 | 1.20 | -17.00 | -12.26 | 46.68 | -32.96 | 119.18 | 0.6112 | -1114.5 | 999999 | |
| 22.03 | -17.00 | 13.84 | -17.00 | -12.90 | 46.52 | -33.13 | 119.98 | 0.6173 | -1101.7 | 999999 | |
| 0.87 | -17.00 | 0.55 | -17.00 | -13.24 | 46.17 | -33.47 | 120.21 | 0.6235 | -626.0 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.34 | -14.30 | 45.92 | -33.72 | 121.51 | 0.6333 | -713.0 | -585.8 | |
| 5.07 | -17.00 | 3.20 | -17.00 | -13.02 | 46.09 | -33.55 | 119.84 | 0.6230 | -820.3 | 999999 | |
| 4.11 | -17.00 | 2.59 | -17.00 | -12.77 | 46.06 | -33.59 | 119.46 | 0.6219 | -962.3 | 999999 | |
| 1.31 | -17.00 | 0.83 | -17.00 | -13.00 | 45.87 | -33.77 | 119.66 | 0.6255 | -587.5 | 999999 | |
| 17.13 | -17.00 | 10.80 | -17.00 | -12.43 | 45.92 | -33.72 | 118.88 | 0.6214 | -956.9 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.18 | -14.16 | 45.65 | -33.99 | 121.11 | 0.6355 | -597.0 | -501.2 | |
| 1.49 | -17.00 | 0.94 | -17.00 | -13.14 | 45.74 | -33.90 | 119.75 | 0.6279 | -502.5 | 999999 | |
| 2.19 | -17.00 | 1.37 | -17.00 | -11.62 | 45.93 | -33.71 | 117.70 | 0.6163 | -1203.8 | 999999 | |
| 0.61 | -17.00 | 0.39 | -17.00 | -11.76 | 45.73 | -33.92 | 117.76 | 0.6196 | -907.7 | 999999 | |
| 14.77 | -17.00 | 9.33 | -17.00 | -12.08 | 45.64 | -34.00 | 118.16 | 0.6225 | -864.3 | 999999 | |
| 0.00 | 7.26 | 0.00 | 4.64 | -13.45 | 45.32 | -34.32 | 119.89 | 0.6348 | 136.0 | 99.9 | |
| 1.66 | -17.00 | 1.05 | -17.00 | -11.55 | 45.53 | -34.11 | 117.32 | 0.6207 | -759.9 | 999999 | |
| 1.14 | -17.00 | 0.72 | -17.00 | -11.98 | 45.21 | -34.43 | 117.72 | 0.6271 | -486.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
