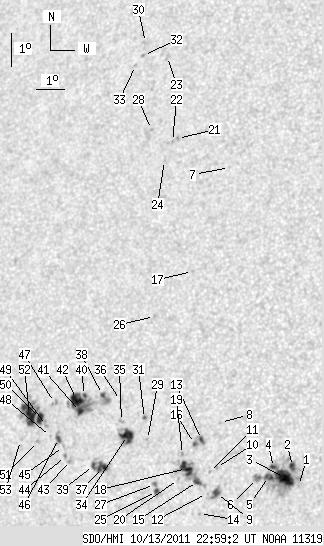

SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.42 | 327.94 | 68.82 | 188.90 | 10.71 | 49.20 | -30.44 | 79.14 | 0.5091 | 64.6 | 112.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.62 | 9.36 | 54.34 | -25.31 | 80.77 | 0.4291 | -775.0 | -607.6 | |
| 4.02 | 85.75 | 2.21 | 47.22 | 9.92 | 54.09 | -25.55 | 79.54 | 0.4339 | -1028.3 | -496.3 | |
| 19.67 | -2.00 | 10.82 | -2.00 | 9.58 | 53.85 | -25.80 | 80.38 | 0.4371 | -1189.9 | 999999 | |
| 2.36 | -2.00 | 1.30 | -2.00 | 9.86 | 53.45 | -26.19 | 79.84 | 0.4436 | -684.3 | 999999 | |
| 4.46 | -2.00 | 2.46 | -2.00 | 9.58 | 53.31 | -26.34 | 80.49 | 0.4454 | -787.0 | 999999 | |
| 0.00 | 4.28 | 0.00 | 2.37 | 9.50 | 52.94 | -26.70 | 80.75 | 0.4509 | -770.0 | -662.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 18.83 | 50.71 | -28.93 | 62.88 | 0.5165 | -583.0 | -562.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 11.12 | 51.52 | -28.12 | 77.63 | 0.4755 | -580.0 | -506.4 | |
| 4.90 | 8.30 | 2.75 | 4.66 | 8.99 | 51.58 | -28.06 | 82.11 | 0.4710 | -899.6 | -662.8 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 9.77 | 51.51 | -28.13 | 80.47 | 0.4731 | -737.0 | -585.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 9.64 | 51.28 | -28.36 | 80.80 | 0.4763 | -651.0 | -444.7 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 8.97 | 51.24 | -28.40 | 82.20 | 0.4762 | -427.0 | -393.4 | |
| 2.19 | 8.74 | 1.23 | 4.94 | 10.58 | 50.92 | -28.73 | 78.91 | 0.4834 | 753.9 | 152.9 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.36 | 51.05 | -28.59 | 83.50 | 0.4785 | -711.0 | -580.9 | |
| 4.11 | 31.99 | 2.32 | 18.12 | 9.32 | 50.90 | -28.74 | 81.53 | 0.4818 | -744.0 | -212.4 | |
| 1.40 | -13.00 | 0.79 | -13.00 | 10.45 | 50.69 | -28.96 | 79.24 | 0.4866 | -426.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 15.61 | 49.94 | -29.70 | 69.31 | 0.5122 | 752.0 | 579.3 | |
| 9.88 | -15.00 | 5.60 | -15.00 | 9.69 | 50.48 | -29.16 | 80.84 | 0.4885 | -921.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 10.10 | 50.30 | -29.34 | 80.04 | 0.4918 | -884.0 | -723.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 9.34 | 50.24 | -29.41 | 81.58 | 0.4918 | 82.0 | 30.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 19.63 | 48.65 | -31.00 | 62.76 | 0.5477 | 923.0 | 769.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 19.52 | 48.48 | -31.16 | 63.03 | 0.5493 | 917.0 | 660.6 | |
| 0.00 | 3.06 | 0.00 | 1.85 | 22.13 | 47.68 | -31.96 | 59.18 | 0.5732 | 811.0 | 686.5 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 18.93 | 48.31 | -31.33 | 64.16 | 0.5487 | 775.0 | 545.7 | |
| 2.27 | 4.90 | 1.30 | 2.80 | 8.95 | 49.51 | -30.14 | 82.48 | 0.5023 | 882.0 | 624.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 14.18 | 48.80 | -30.84 | 72.49 | 0.5233 | 809.0 | 551.7 | |
| 0.00 | 2.19 | 0.00 | 1.25 | 9.15 | 49.42 | -30.23 | 82.09 | 0.5038 | 1025.0 | 870.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 19.85 | 47.63 | -32.02 | 62.97 | 0.5620 | 760.0 | 652.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 10.48 | 49.03 | -30.61 | 79.52 | 0.5112 | -644.0 | -550.2 | |
| 0.00 | 1.92 | 0.00 | 1.17 | 22.52 | 46.74 | -32.91 | 59.14 | 0.5868 | 712.0 | 533.5 | |
| 1.14 | 1.40 | 0.66 | 0.81 | 11.11 | 48.86 | -30.79 | 78.35 | 0.5149 | -773.0 | -631.3 | |
| 0.00 | 1.66 | 0.00 | 1.01 | 22.11 | 46.77 | -32.87 | 59.77 | 0.5843 | 684.0 | 590.3 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 21.78 | 46.55 | -33.10 | 60.42 | 0.5853 | 785.0 | 637.0 | |
| 10.31 | 20.54 | 5.98 | 11.92 | 10.57 | 48.31 | -31.33 | 79.51 | 0.5219 | -814.3 | -60.2 | |
| 0.00 | 2.27 | 0.00 | 1.32 | 10.97 | 48.05 | -31.59 | 78.78 | 0.5264 | -718.0 | -409.1 | |
| 0.00 | 1.92 | 0.00 | 1.12 | 11.60 | 47.94 | -31.70 | 77.63 | 0.5291 | -224.0 | -177.7 | |
| 6.99 | 18.71 | 4.09 | 10.94 | 9.56 | 47.53 | -32.11 | 81.54 | 0.5321 | 998.8 | 658.0 | |
| 1.92 | 49.74 | 1.13 | 29.37 | 11.74 | 47.27 | -32.37 | 77.51 | 0.5390 | 911.5 | 725.1 | |
| 2.80 | -37.00 | 1.64 | -37.00 | 9.60 | 47.20 | -32.44 | 81.50 | 0.5369 | 766.2 | 999999 | |
| 1.49 | -38.00 | 0.88 | -38.00 | 11.68 | 46.62 | -33.02 | 77.78 | 0.5481 | 922.9 | 999999 | |
| 3.06 | -38.00 | 1.81 | -38.00 | 11.19 | 46.54 | -33.10 | 78.68 | 0.5485 | 1085.1 | 999999 | |
| 11.10 | -38.00 | 6.58 | -38.00 | 11.54 | 46.35 | -33.29 | 78.09 | 0.5518 | 1037.8 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.60 | 9.71 | 46.36 | -33.28 | 81.42 | 0.5492 | 1028.0 | 774.9 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 9.82 | 46.16 | -33.48 | 81.24 | 0.5521 | 844.0 | 657.6 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 10.11 | 46.06 | -33.59 | 80.72 | 0.5540 | 874.0 | 736.7 | |
| 2.71 | 6.03 | 1.61 | 3.59 | 10.34 | 45.85 | -33.80 | 80.34 | 0.5572 | 989.5 | 709.8 | |
| 0.00 | 2.71 | 0.00 | 1.62 | 11.41 | 45.56 | -34.08 | 78.48 | 0.5628 | 584.0 | 693.7 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 10.38 | 45.55 | -34.10 | 80.31 | 0.5615 | 696.0 | 587.8 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 10.70 | 45.36 | -34.28 | 79.77 | 0.5646 | 829.0 | 746.2 | |
| 6.12 | 44.76 | 3.68 | 27.02 | 10.90 | 45.11 | -34.53 | 79.46 | 0.5684 | 1028.8 | 448.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 10.20 | 45.09 | -34.55 | 80.69 | 0.5678 | 823.0 | 721.9 | |
| 16.52 | -50.00 | 9.98 | -50.00 | 10.99 | 44.69 | -34.95 | 79.36 | 0.5744 | 861.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 10.20 | 44.46 | -35.18 | 80.78 | 0.5767 | 529.0 | 497.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
