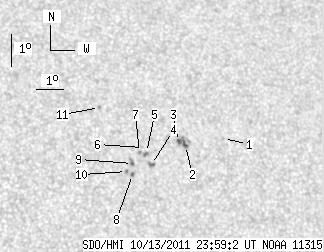

SDO HMI 2011-10-13 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.86 | 23.87 | 3.46 | 14.09 | 20.21 | 109.71 | 30.61 | 298.49 | 0.5458 | 301.0 | 201.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-13 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.64 | 20.44 | 112.25 | 33.16 | 297.38 | 0.5794 | -688.0 | -525.7 | |
| 1.66 | 8.83 | 0.99 | 5.27 | 20.30 | 110.78 | 31.69 | 297.99 | 0.5600 | -909.6 | -748.0 | |
| 2.10 | -2.00 | 1.25 | -2.00 | 20.44 | 110.55 | 31.45 | 298.35 | 0.5578 | -822.7 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.54 | 19.78 | 109.40 | 30.31 | 297.94 | 0.5396 | 914.0 | 687.2 | |
| 0.79 | 2.19 | 0.46 | 1.28 | 20.16 | 109.30 | 30.20 | 298.66 | 0.5403 | 586.9 | 657.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 20.32 | 109.18 | 30.09 | 299.01 | 0.5397 | 407.0 | 389.8 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 20.17 | 109.04 | 29.95 | 298.85 | 0.5371 | 849.0 | 678.1 | |
| 0.35 | 1.14 | 0.20 | 0.66 | 19.51 | 108.65 | 29.55 | 297.94 | 0.5284 | 790.0 | 766.9 | |
| 0.96 | 2.71 | 0.56 | 1.58 | 19.85 | 108.72 | 29.62 | 298.49 | 0.5311 | 858.1 | 758.3 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 19.62 | 108.45 | 29.36 | 298.26 | 0.5263 | 916.0 | 824.6 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 21.63 | 107.88 | 28.79 | 302.17 | 0.5310 | 695.0 | 610.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
