SDO HMI 2011-10-13 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.16 | 364.63 | 61.91 | 209.25 | 10.95 | 49.15 | -29.94 | 78.58 | 0.5024 | 52.2 | 109.7 | |
|
previous
or next observation for the same group /

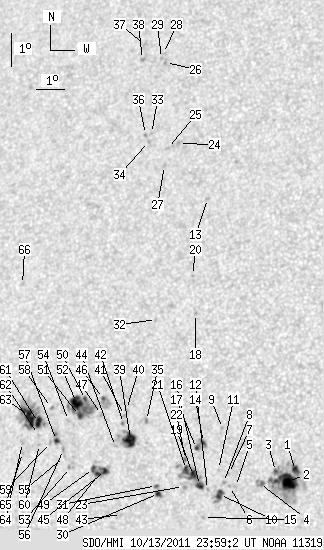

back to the solar disc SDO HMI 2011-10-13 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.20 | 91.79 | 2.29 | 50.27 | 9.91 | 54.14 | -24.95 | 79.37 | 0.4246 | -950.6 | -486.4 | |
| 21.86 | -1.00 | 11.97 | -1.00 | 9.57 | 53.90 | -25.19 | 80.23 | 0.4277 | -1173.0 | 999999 | |
| 1.49 | -1.00 | 0.82 | -1.00 | 9.85 | 53.47 | -25.62 | 79.69 | 0.4348 | -722.8 | 999999 | |
| 0.00 | 5.25 | 0.00 | 2.89 | 9.47 | 52.96 | -26.13 | 80.69 | 0.4420 | -640.0 | -628.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 9.34 | 52.16 | -26.93 | 81.14 | 0.4542 | -903.0 | -773.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 9.33 | 51.96 | -27.13 | 81.20 | 0.4573 | -869.0 | -733.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 9.72 | 51.89 | -27.20 | 80.37 | 0.4589 | -704.0 | -568.9 | |
| 0.00 | 2.36 | 0.00 | 1.32 | 9.44 | 51.74 | -27.35 | 81.00 | 0.4607 | -746.0 | -529.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 11.06 | 51.56 | -27.54 | 77.58 | 0.4665 | -599.0 | -526.9 | |
| 4.98 | 9.44 | 2.78 | 5.27 | 9.08 | 51.64 | -27.45 | 81.82 | 0.4619 | -923.9 | -595.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 9.82 | 51.54 | -27.55 | 80.22 | 0.4644 | -758.0 | -624.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 9.21 | 51.22 | -27.88 | 81.61 | 0.4685 | -832.0 | -657.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 17.97 | 50.06 | -29.03 | 64.52 | 0.5134 | -539.0 | -433.5 | |
| 2.10 | 8.74 | 1.18 | 4.92 | 10.61 | 50.95 | -28.14 | 78.70 | 0.4747 | 630.8 | 196.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.37 | 51.15 | -27.94 | 83.42 | 0.4686 | -730.0 | -568.8 | |
| 4.20 | 30.25 | 2.36 | 17.04 | 9.32 | 50.93 | -28.16 | 81.43 | 0.4729 | -709.6 | -329.3 | |
| 1.57 | -14.00 | 0.89 | -14.00 | 10.42 | 50.72 | -28.37 | 79.16 | 0.4777 | -466.6 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 14.47 | 50.20 | -28.89 | 71.12 | 0.4964 | 706.0 | 527.6 | |
| 4.90 | -16.00 | 2.76 | -16.00 | 9.60 | 50.70 | -28.39 | 80.86 | 0.4768 | -871.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 15.61 | 49.92 | -29.17 | 69.04 | 0.5047 | 763.0 | 611.2 | |
| 3.06 | -16.00 | 1.73 | -16.00 | 9.77 | 50.44 | -28.65 | 80.56 | 0.4810 | -965.8 | 999999 | |
| 1.22 | 1.66 | 0.69 | 0.94 | 10.07 | 50.38 | -28.71 | 79.96 | 0.4824 | -678.6 | -819.2 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 9.26 | 50.38 | -28.71 | 81.64 | 0.4811 | 320.0 | 253.4 | |
| 0.00 | 1.92 | 0.00 | 1.13 | 19.59 | 48.69 | -30.40 | 62.45 | 0.5399 | 902.0 | 675.9 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 19.42 | 48.32 | -30.77 | 62.98 | 0.5438 | 834.0 | 688.7 | |
| 0.00 | 2.10 | 0.00 | 1.26 | 22.06 | 47.64 | -31.45 | 58.96 | 0.5666 | 764.0 | 687.5 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 18.90 | 48.32 | -30.77 | 63.89 | 0.5412 | 687.0 | 494.1 | |
| 0.00 | 1.49 | 0.00 | 0.89 | 22.34 | 47.49 | -31.60 | 58.61 | 0.5699 | 596.0 | 551.4 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 22.18 | 47.46 | -31.63 | 58.89 | 0.5695 | 724.0 | 560.7 | |
| 2.54 | 3.58 | 1.44 | 2.04 | 9.01 | 49.54 | -29.55 | 82.28 | 0.4936 | 917.5 | 875.4 | |
| 1.22 | 1.84 | 0.70 | 1.05 | 9.24 | 49.45 | -29.64 | 81.82 | 0.4952 | 800.6 | 775.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 14.22 | 48.85 | -30.24 | 72.19 | 0.5149 | 502.0 | 495.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 19.85 | 47.63 | -31.46 | 62.65 | 0.5548 | 771.0 | 657.1 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 19.60 | 47.58 | -31.52 | 63.11 | 0.5543 | 783.0 | 642.6 | |
| 0.00 | 1.92 | 0.00 | 1.10 | 11.17 | 48.90 | -30.20 | 78.09 | 0.5063 | -895.0 | -738.6 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 19.81 | 47.42 | -31.67 | 62.84 | 0.5574 | 774.0 | 641.1 | |
| 0.00 | 3.15 | 0.00 | 1.91 | 22.55 | 46.75 | -32.34 | 58.74 | 0.5802 | 191.0 | 458.9 | |
| 0.00 | 1.66 | 0.00 | 1.01 | 22.11 | 46.75 | -32.34 | 59.44 | 0.5778 | 819.0 | 605.3 | |
| 11.45 | 22.03 | 6.60 | 12.71 | 10.57 | 48.40 | -30.69 | 79.37 | 0.5126 | -848.6 | -31.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 11.46 | 48.15 | -30.94 | 77.70 | 0.5178 | -625.0 | -495.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 11.28 | 48.10 | -30.99 | 78.07 | 0.5182 | -571.0 | -436.6 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 11.04 | 48.10 | -31.00 | 78.53 | 0.5178 | -612.0 | -440.4 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 8.31 | 48.30 | -30.79 | 83.80 | 0.5115 | -532.0 | -316.1 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 10.33 | 47.89 | -31.20 | 79.93 | 0.5197 | 258.0 | 210.5 | |
| 2.54 | 15.47 | 1.47 | 9.00 | 9.60 | 47.61 | -31.48 | 81.38 | 0.5228 | 1061.7 | 824.4 | |
| 0.79 | 9.53 | 0.46 | 5.55 | 11.75 | 47.29 | -31.80 | 77.37 | 0.5308 | 1053.9 | 599.9 | |
| 0.00 | 1.84 | 0.00 | 1.07 | 11.26 | 47.28 | -31.81 | 78.28 | 0.5301 | 288.0 | 269.9 | |
| 2.01 | -45.00 | 1.17 | -45.00 | 9.46 | 47.38 | -31.71 | 81.67 | 0.5261 | 899.0 | 999999 | |
| 1.40 | -45.00 | 0.82 | -45.00 | 9.63 | 47.18 | -31.91 | 81.37 | 0.5292 | 831.6 | 999999 | |
| 1.66 | 41.88 | 0.98 | 24.63 | 11.68 | 46.65 | -32.44 | 77.64 | 0.5399 | 987.4 | 762.5 | |
| 3.67 | -50.00 | 2.16 | -50.00 | 11.19 | 46.50 | -32.59 | 78.58 | 0.5412 | 1027.4 | 999999 | |
| 11.19 | -50.00 | 6.60 | -50.00 | 11.57 | 46.34 | -32.75 | 77.91 | 0.5442 | 1043.5 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.59 | 9.62 | 46.36 | -32.73 | 81.51 | 0.5412 | 733.0 | 636.5 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 11.02 | 46.12 | -32.97 | 78.97 | 0.5464 | 688.0 | 610.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 9.93 | 46.10 | -32.99 | 80.96 | 0.5452 | 862.0 | 698.2 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 10.14 | 46.04 | -33.05 | 80.59 | 0.5463 | 867.0 | 649.8 | |
| 2.01 | 5.51 | 1.19 | 3.26 | 10.40 | 45.76 | -33.33 | 80.17 | 0.5507 | 1002.3 | 873.6 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 11.37 | 45.45 | -33.64 | 78.46 | 0.5565 | 814.0 | 710.5 | |
| 0.00 | 1.66 | 0.00 | 0.99 | 10.32 | 45.55 | -33.54 | 80.33 | 0.5536 | 765.0 | 626.1 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 10.24 | 45.16 | -33.94 | 80.53 | 0.5591 | 795.0 | 668.9 | |
| 5.16 | 54.12 | 3.08 | 32.48 | 10.90 | 45.04 | -34.05 | 79.38 | 0.5616 | 1077.6 | 421.4 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 10.54 | 45.08 | -34.01 | 80.01 | 0.5605 | 487.0 | 430.8 | |
| 12.94 | -61.00 | 7.77 | -61.00 | 11.06 | 44.68 | -34.41 | 79.16 | 0.5669 | 918.7 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.95 | 10.26 | 44.53 | -34.56 | 80.58 | 0.5681 | 743.0 | 602.7 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 9.97 | 44.56 | -34.53 | 81.10 | 0.5672 | 546.0 | 474.8 | |
| 0.00 | 2.01 | 0.00 | 1.23 | 15.00 | 43.78 | -35.31 | 72.58 | 0.5873 | 531.0 | 431.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
