SDO HMI 2011-10-14 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.13 | 98.54 | 20.58 | 53.24 | 19.92 | 97.94 | 19.40 | 308.37 | 0.3999 | -270.0 | -258.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

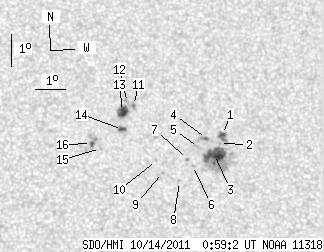

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.89 | 7.08 | 1.57 | 3.86 | 20.17 | 99.20 | 20.66 | 307.19 | 0.4175 | -730.9 | -627.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 19.90 | 99.06 | 20.52 | 306.80 | 0.4134 | -691.0 | -566.5 | |
| 20.90 | 49.84 | 11.33 | 27.02 | 19.56 | 98.85 | 20.31 | 306.37 | 0.4079 | -1015.5 | -493.0 | |
| 1.31 | 5.77 | 0.71 | 3.13 | 20.06 | 98.64 | 20.10 | 307.66 | 0.4096 | -820.3 | -654.7 | |
| 0.00 | 3.24 | 0.00 | 1.75 | 19.80 | 98.34 | 19.80 | 307.50 | 0.4034 | -797.0 | -602.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 19.25 | 98.07 | 19.52 | 306.69 | 0.3952 | -663.0 | -541.3 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 19.44 | 97.92 | 19.38 | 307.28 | 0.3950 | -922.0 | -690.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 18.78 | 97.57 | 19.03 | 306.29 | 0.3847 | 751.0 | 602.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 19.07 | 97.04 | 18.50 | 307.66 | 0.3804 | -772.0 | -644.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.44 | 96.88 | 18.34 | 308.70 | 0.3818 | -645.0 | -455.9 | |
| 0.00 | 2.45 | 0.00 | 1.32 | 21.16 | 96.32 | 17.78 | 313.10 | 0.3916 | 775.0 | 638.5 | |
| 0.00 | 2.71 | 0.00 | 1.46 | 21.26 | 96.13 | 17.59 | 313.58 | 0.3904 | 504.0 | 513.2 | |
| 8.66 | 9.79 | 4.64 | 5.25 | 20.99 | 95.93 | 17.39 | 313.34 | 0.3853 | 995.7 | 866.2 | |
| 2.71 | 3.50 | 1.45 | 1.87 | 20.43 | 95.86 | 17.32 | 312.30 | 0.3788 | 935.2 | 800.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 19.87 | 95.07 | 16.52 | 312.36 | 0.3636 | 621.0 | 495.4 | |
| 1.66 | 6.65 | 0.88 | 3.53 | 20.03 | 94.79 | 16.24 | 313.17 | 0.3619 | 957.8 | 731.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
